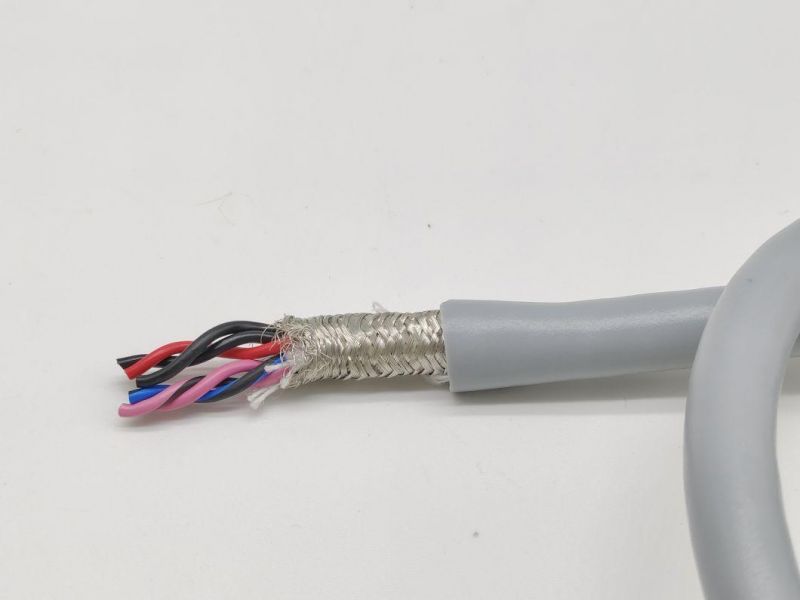

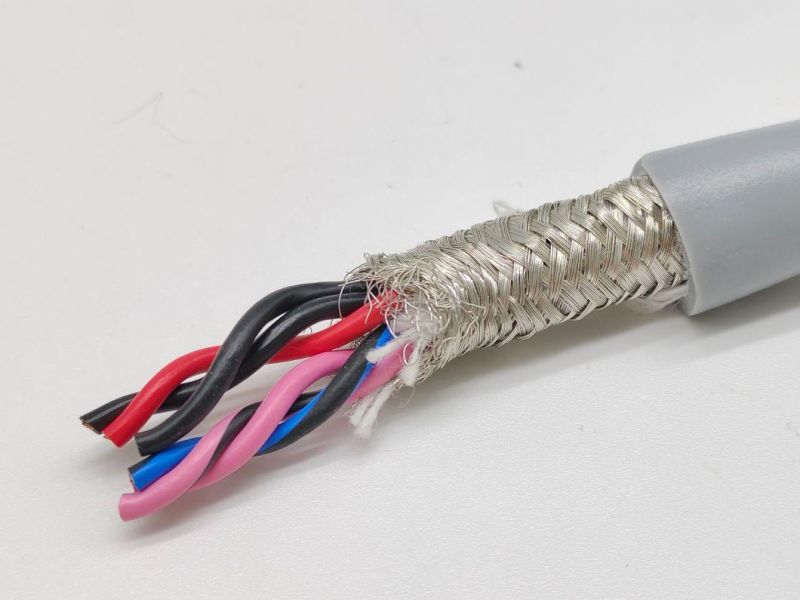

Sihf+C / Sihf-Si+C Heat and Coldness Resistant Power and Connect Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Installation
  • Conductor Material：Copper
  • Sheath Material：Silicone
  • Insulation Material：Silicone

Base Info

  • Model NO.：SIHF+C , SIHF-SI+C
  • Material Shape：Round Wire
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemSIHF+C / SIHF-SI+C Heat and Coldness Resistant Power and Connect CableConductorcopper strand tinnedInsulationSiliconeInner sheath SIHF-SI+C: siliconeShield Copper braid tinned; coverage appr. 85%Outer SheathSiliconeNominal VoltageUo/U: 300/500 VOperat. temp. fixed min/max -60 °C / +180 °C; short-time: +200 °CTemp. at conductor+180 °CTemperature RangeFixed: -20°C to +90°C
Flexed: -5°C to +50°CHalogen freeHalogen-free acc. to IEC 60754-1ColorOptionalCertificationCESpecial Features• Largely resistant to acids, bases and specified types of oil
• No flame conduction in case of fire, insulation integrity and low smoke density
• Resistant to ozone and humidty, weather-proofed
• Recommended for EMC-applications
• Rbove +100 °C and with exclusion of air, the mechanical properties of silicone cables will be reduced early, adequate ventilation should be ensuredApplicationHeat and coldness resistant power, control and connecting cable in electrical facilities, for lossless data and signal transmission, for fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms and outdoor use, no laying underground.
