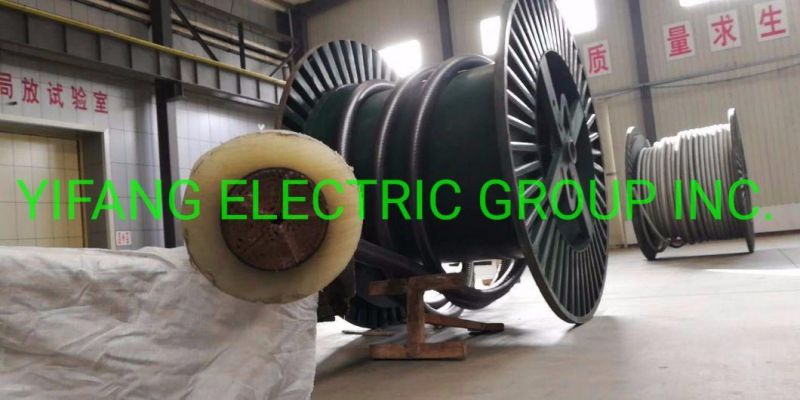

110kv 220kv Ehv Super High Voltage Power Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Power Station
- Voltage：Super-high Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：EHV Cable
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：Ehv Cable
- Brand：Yifang
- Standard：IEC 60884
- Transport Package：Steel Drum
- Specification：630mm2 500mm2 400mm2
- Trademark：YIFANG
- Origin：China
- HS Code：8544492100
- Production Capacity：10000m Per Week
Description
Installation in the tube or channel, available used in the damp environment, places with high level of underground water, certain tension and shock resistance; Specially used in places with heavy corrosion but without nitrate acid, acetic acid, organic matter (e.g. Peat), and strong alkali corrosion quality; certain mechanical force (tension, pressure, shock) available; PE jacked with good capacity of anti-moisture.YJQ03-Z YJLQ03-Z Vertical water blocking power cables with cross-linked PE insulated, lead set and PE jacked
Note: 1. The table only lists the main types. According to the requirements of clients, the types of flame resistance, rat proof, and termite proof and son on, can also be produced, then the prefix of "ZC, WZDZB, FS, FY" should be added.
2. The expressions of product symbols
Cross-linked PE insulation - YJ Copper conductor - T
Aluminum conductor - L Winding copper wire shield - S
Al-plastic composites - A Lead set - Q
Corrugated aluminum jack - LW PVC outer sheath - V or 02
PE outer sheath - Y or 03 Vertical blocking structure - Z
Rat proof - FS Termite proof - FY
Flame resistance A, B, C - ZA, ZB, ZC
Low smoke, zero halogen, fire resistant - WDZA, WDZB, WDZC
Product range
YJV, YJLV, YJY, YJLY, YJSAV-Z, YJLSAV-Z, YJSAY-Z, YJLSAY-Z, YJLW02-Z, YJLLW02-Z,
YJLW03-Z, YJLLW03-Z,
YJQ02-Z, YJLQ02-Z,
YJQ03-Z, YJLQ03-Z18/30 1 185, 240, 300, 400, 500, 630, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2500 38/66 48/66 1 240, 300, 400, 500, 630, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2500 64/110 1 240, 300, 400, 500, 630, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2500 76/132 1 300, 400, 500, 630, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2500, 3000 127/220 1 300, 400, 500, 630, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2500, 3000 290/500 1 300, 400, 500, 630, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2500, 3000
Note: The aluminum conductor is not recommended concerning to cables for voltage exceeding 220kV.
Cable Construction
9. Outer jack should adopt PVC, PE or other relative sheath materials to extrude, in order to meet the electrical function and mechanical function. Other types of cables such as flame resistance, rat proof, low smoke and halogen also are produce as the different requirements of different places. The surface of outer sheath coasts or extrudes with a layer of continuously smooth semi-conductive materials as the pressure-resistant electrode of outer sheath.
Note: 1. The table only lists the main types. According to the requirements of clients, the types of flame resistance, rat proof, and termite proof and son on, can also be produced, then the prefix of "ZC, WZDZB, FS, FY" should be added.
2. The expressions of product symbols
Cross-linked PE insulation - YJ Copper conductor - T
Aluminum conductor - L Winding copper wire shield - S
Al-plastic composites - A Lead set - Q
Corrugated aluminum jack - LW PVC outer sheath - V or 02
PE outer sheath - Y or 03 Vertical blocking structure - Z
Rat proof - FS Termite proof - FY
Flame resistance A, B, C - ZA, ZB, ZC
Low smoke, zero halogen, fire resistant - WDZA, WDZB, WDZC
Product range
YJV, YJLV, YJY, YJLY, YJSAV-Z, YJLSAV-Z, YJSAY-Z, YJLSAY-Z, YJLW02-Z, YJLLW02-Z,
YJLW03-Z, YJLLW03-Z,
YJQ02-Z, YJLQ02-Z,
YJQ03-Z, YJLQ03-Z
Note: The aluminum conductor is not recommended concerning to cables for voltage exceeding 220kV.
Cable Construction
- The property of cable conductor is in accordance with the rules of GB/T 3956-2008. The cross-section below 800mm2 should be tight round winding conductor; above 1000mm2 should be segmentation conductor construction.
- Inner shield adopt the cross-linked semi-conductive shield materials to extrude over the conduct extremely smoothly.
- Insulation should adopt the extremely clean XLPE insulation materials, and triple extrude with outer shield tightly bonded.
- Outer shield should adopt cross-linked shield materials o extrude over insulation extremely smooth.
- Vertical water blocking layer and buffer layer should adopt semi-conductive water-proof tapes with strong capacity of water-proof to wrap between the outer shields and vertical water-proof layer.

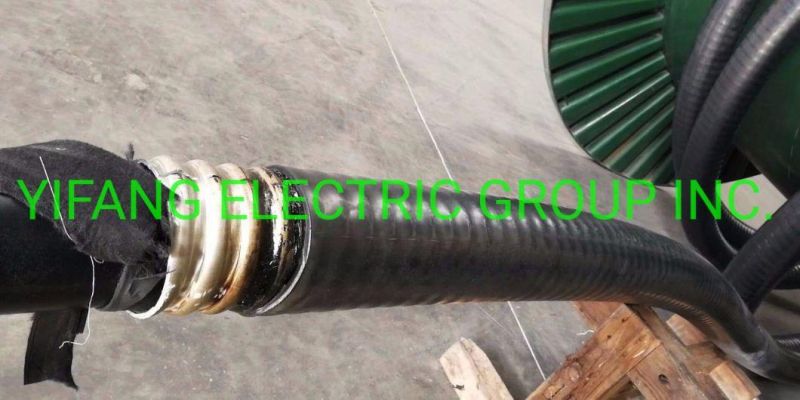

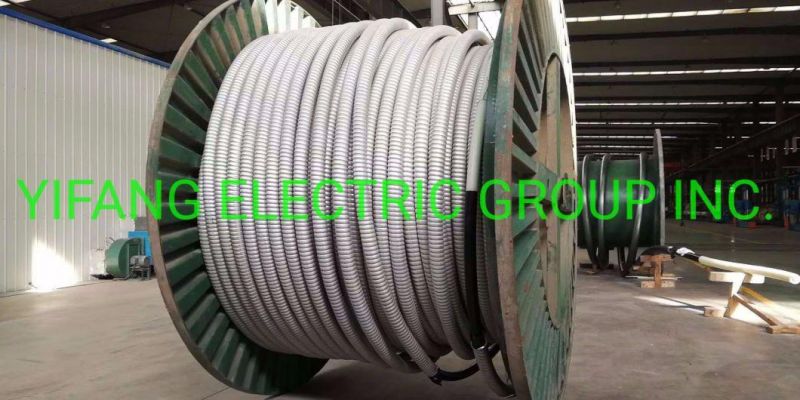

- Vertical water-proof layer should adopt the al-plastic composites and iron jack should adopt corrugated aluminum or lead sheath, which can meet the capacity and screen of short circuit.
- Protection layer and corrosion resistance layer make sure the effective protection for the corrugated aluminum jack or lead sheath.
9. Outer jack should adopt PVC, PE or other relative sheath materials to extrude, in order to meet the electrical function and mechanical function. Other types of cables such as flame resistance, rat proof, low smoke and halogen also are produce as the different requirements of different places. The surface of outer sheath coasts or extrudes with a layer of continuously smooth semi-conductive materials as the pressure-resistant electrode of outer sheath.
