• Model NO.：T-903
• Product Name：Optical Fiber Cleaver
• Applicable Fiber：Sm, Mm, Ds, Nz-Ds, Edf
• Fiber Diameter：100~150um
• Coating Diameter：100~1000um
• Cleave Angle：90°± 0.5°
• Cleave Length：Single Fiber Standard 8~22mm
• Blade Lifetime：40000 Cleaves
• Dimensions：58.5mm *56mm *29mm
• Weight：About 270g
• Transport Package：Carton
• Specification：CE, SGS, CSI, ISO9000
• Trademark：Skycom , OEM
• Origin：Nanjing, China
• HS Code：9031801000
• Production Capacity：1500PCS, Month

Basic Info.

Model NO. T-903 Product Name Optical Fiber Cleaver Applicable Fiber Sm, Mm, Ds, Nz-Ds, Edf Fiber Diameter 100~150um Coating Diameter 100~1000um Cleave Angle 90°± 0.5° Cleave Length Single Fiber Standard 8~22mm Blade Lifetime 40000 Cleaves Dimensions 58.5mm *56mm *29mm Weight About 270g Transport Package Carton Specification CE, SGS, CSI, ISO9000 Trademark Skycom / OEM Origin Nanjing, China HS Code 9031801000 Production Capacity 1500PCS/ Month

Product Description

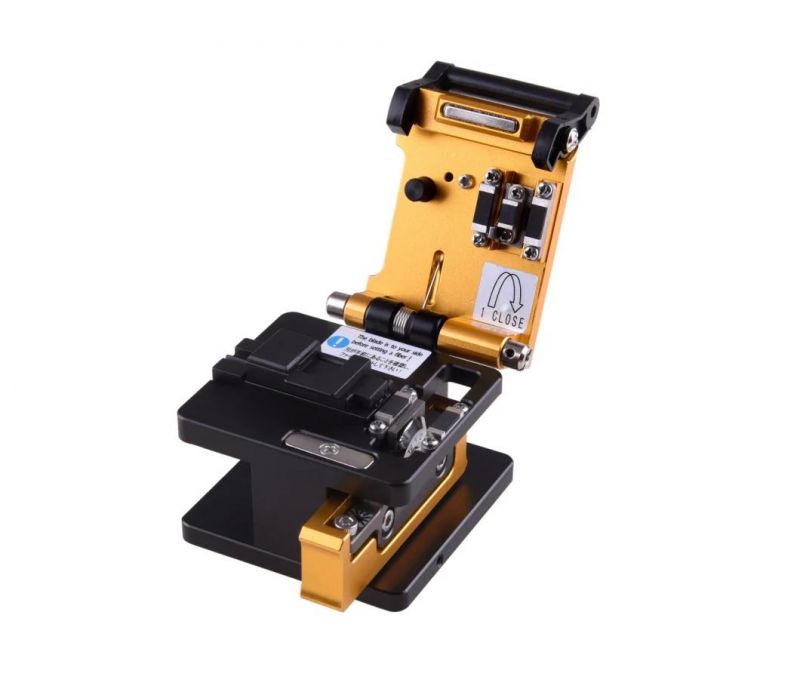

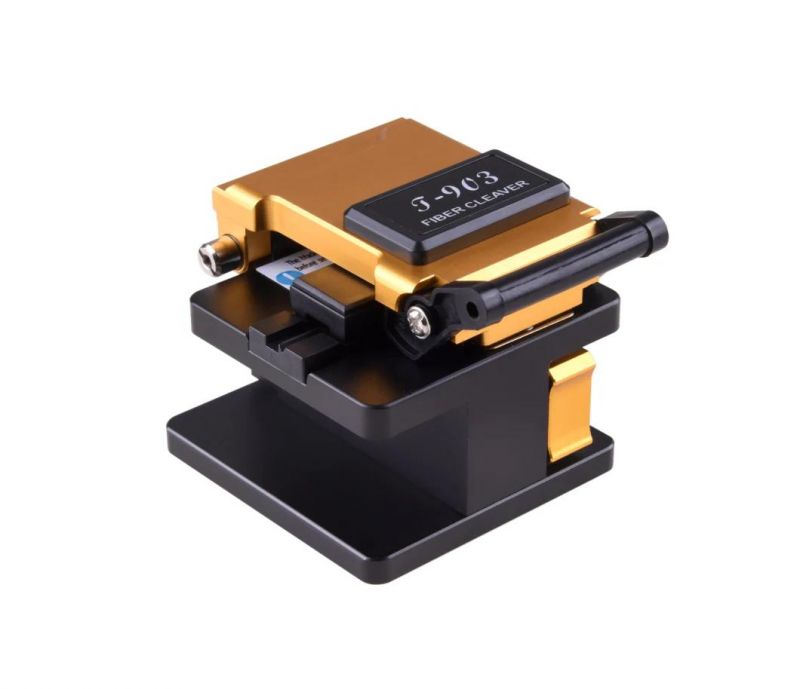

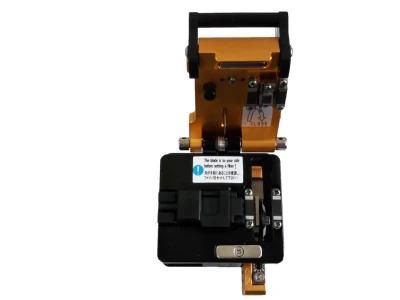

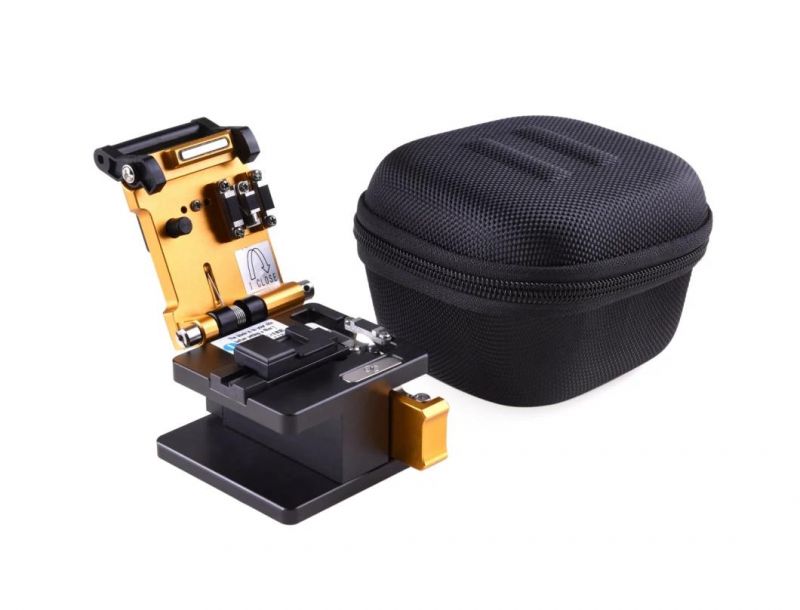

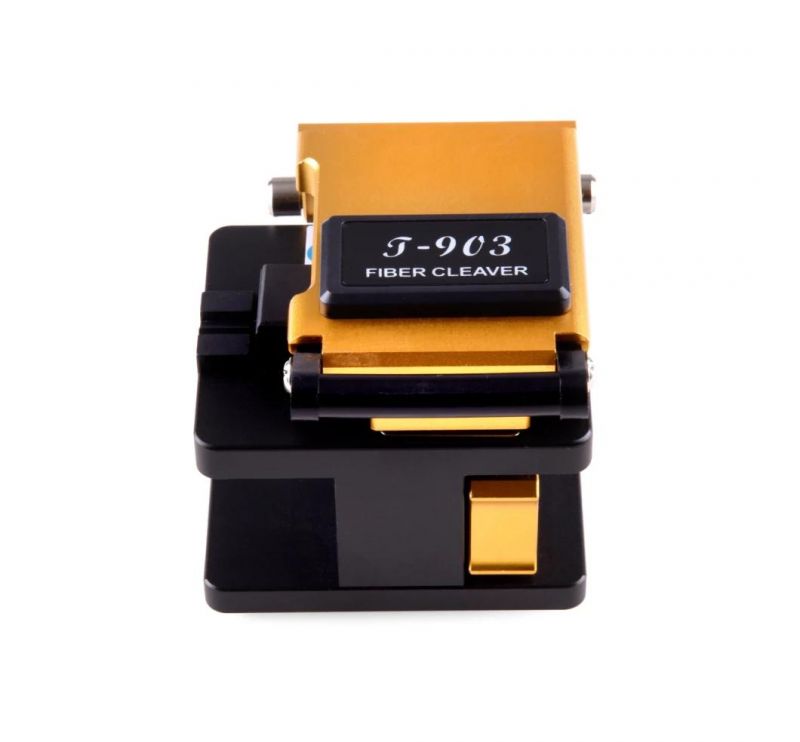

                                  Hot Selling Fiber Cleaver (T-903)

Description
   The T-903 is an economic multi-action and high precision fiber cleaver, standard length 16mm. Compact, slim and simple is available for application.

General
 1) Weight: 0.45kg.
 2) Dimensions: 63(W) x 76(D) x 63(H)mm.

Features
♦  Stable operation with Multi-Action process
♦  Typical cleave angle: 90°± 0.5°
♦  Compact & handy outfit design
♦  High precision cleaving blade with 16 cleave spots
♦  Scratch-free anodized body surface
♦ Simplified blade adjustment & replacements
♦  Built-in maintenance tool attached: on the bottom

Specification
 ♦ Applicable fiber: SM, MM, DS, NZ-DS, EDF, 125um OD of Nude Fiber Cable
 ♦ Fiber Diameter:  Core of Fiber Cable single(∮0.25 & 0.9mm)
 ♦ Coating Diameter: 100~1000um
 ♦ Cleave Angle: 90°± 0.5°
 ♦ Cut Length of Fiber Cable 9~16mm (∮0.25mm),10~16mm (∮0.9mm)
 ♦ Blade Lifetime: 36000 cleaves
