• Model NO.：HTR
• Approvals：CE, cULus, Iecex, Atex,Eac,CSA
• Transport Package：Innner Carton Master Carton
• Specification：11.0*4.4mm
• Trademark：jiahong
• Origin：Anhui Wuhu
• HS Code：85168000
• Production Capacity：50000PCS Per Day

Basic Info.

Model NO. HTR Approvals CE, cULus, Iecex, Atex,Eac,CSA Transport Package Innner Carton Master Carton Specification 11.0*4.4mm Trademark jiahong Origin Anhui Wuhu HS Code 85168000 Production Capacity 50000PCS Per Day

Product Description

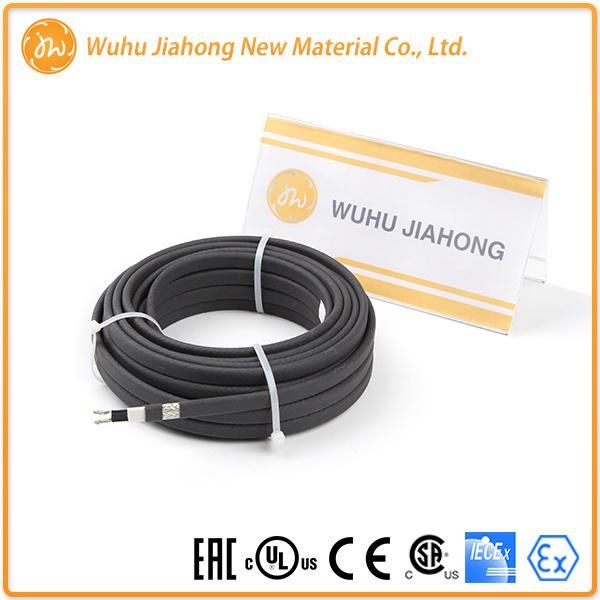

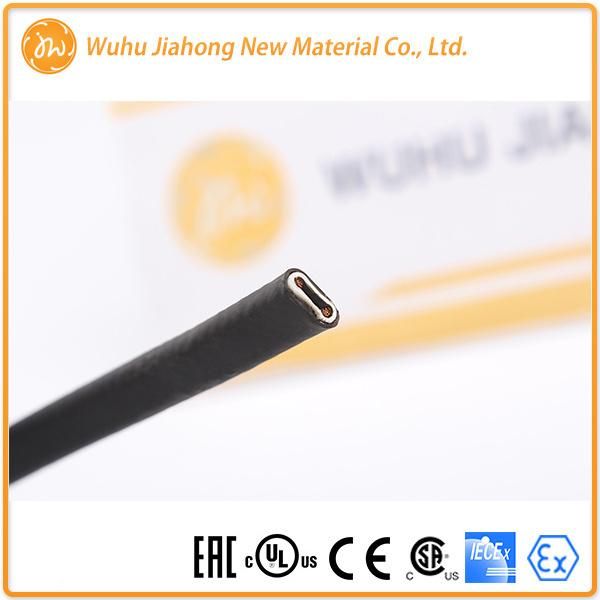

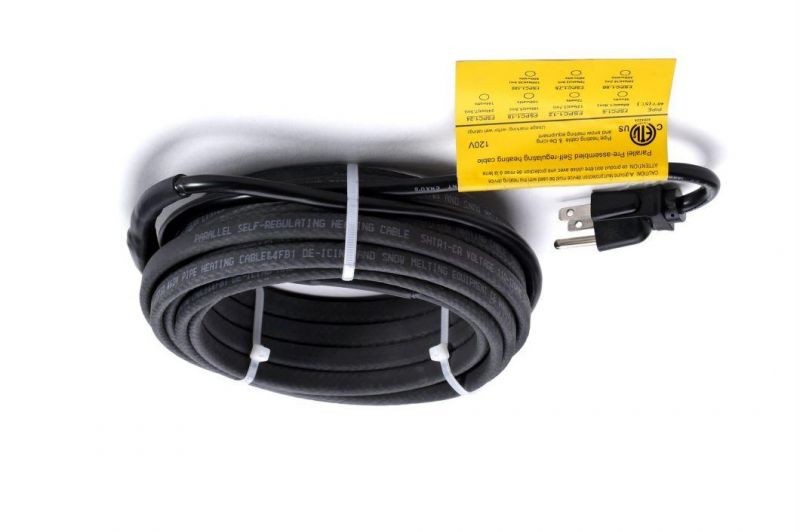

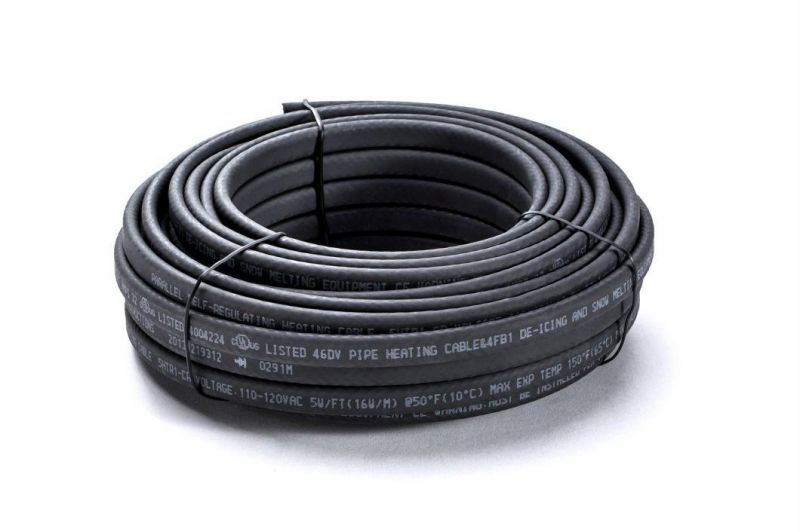

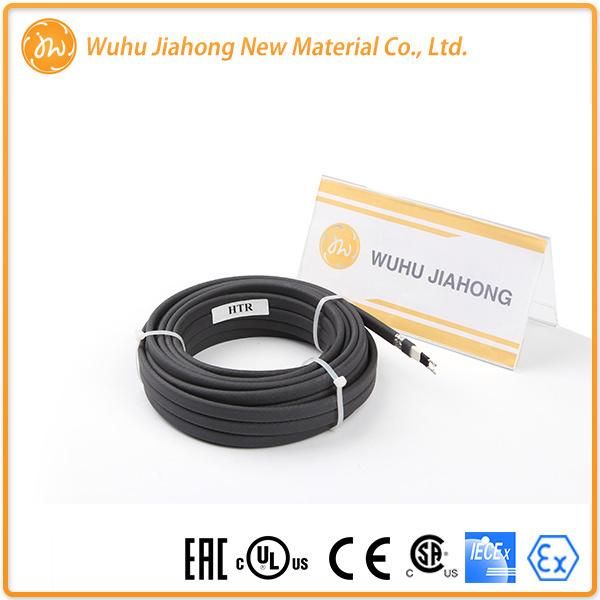

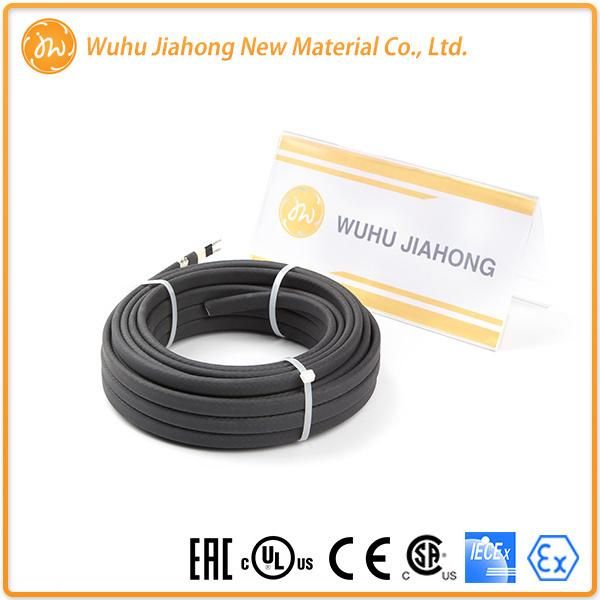

HTR self-regulating heating cable series

Features
· Energy efficient, automatically varies its power output in response to pipe temperature changes.
· Easy to install, can be cut to any length(up to max circuit length) required on site with no wasted cable.
· Lower installed cost than steam tracing, less maintenance expense and less downtime.
· No overheat or burnout even when wrapped over Itself (overlapped).
· Suitable for use in non-hazardous, hazardous and corrosive environments.
· Jiahong power connection, splice, tee and end seal kit will reduce installation time.

Description
HTR increases or decreases the heat output in a self-regulating way depending on the change of the ambient temperature, so a thermostat may not be necessary in some applications and it will never overheat or burnout even when wrapped over itself (overlapped). With optional outer-jacket, the heating cable is resistant to watery and inorganic chemicals and protects against abrasion and impact damage. HTR is suitable for use in explosion-hazardous areas up to a maximally admissible work-piece temperature of 150ºF(65ºC). Jiahong provides termination, power connection, splice, tee and end seal kit will reduce installation time and require no special skills or tools.

Options

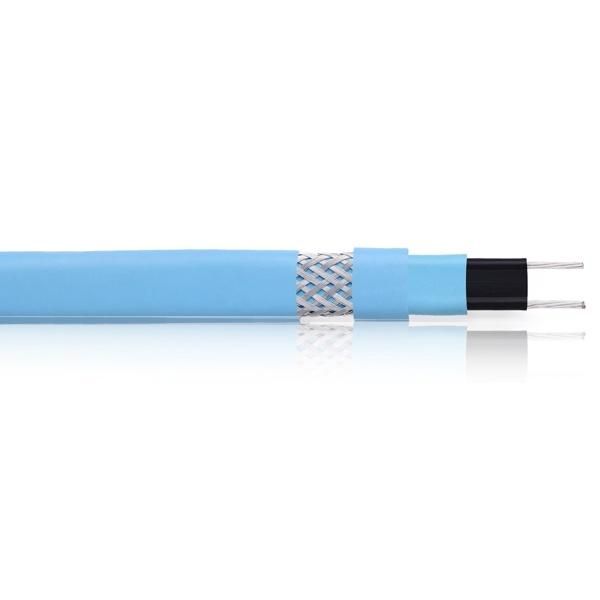

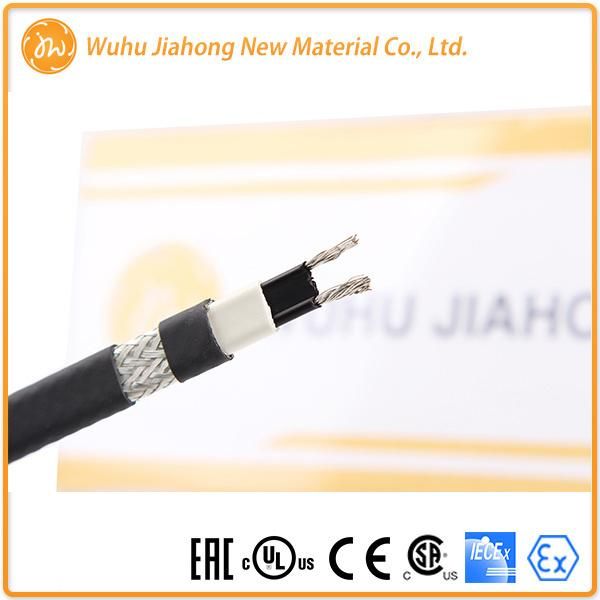

-HTR…C  Tinned copper braid provide additional mechanical protection and a positive ground path.
-HTR…CR Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.
-HTR…CT High-Temperature Fluoropolymer outer jacket is used for exposure to organic or corrosive solutions or vapors may be present.

Technical data
Service voltage                       110-120V, 208-277V
Maximum maintain or continuous
exposure temperature(power on)        +65ºC(150ºF)
Maximum intermittent exposure
Temperature, 1000 hours
(power on or off)                      +85ºC(185ºF)
Minimum installation temperature        -40ºC(-40ºF)
Protective braid resistance              <18.2Ω/km
Bus wire gauge                        16AWG
Approvals                              UL / CSA / ETL / IECEx / ATEX / EAC /CE

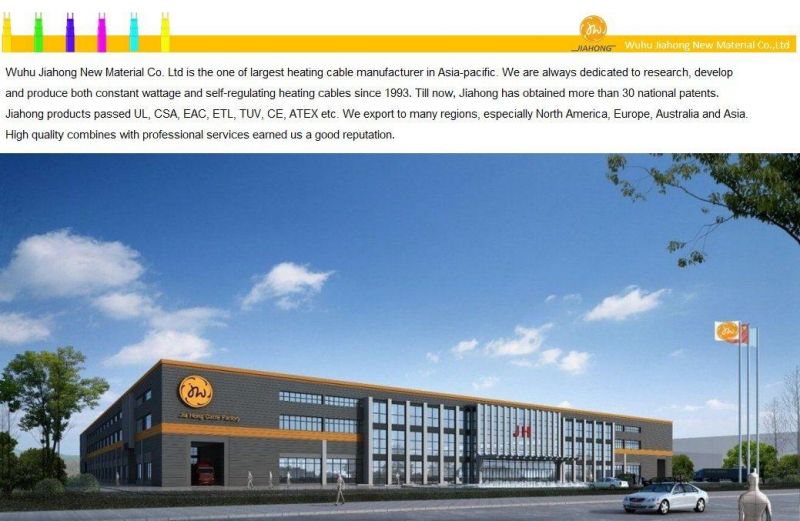

WHY WUHUJIAHONG

25 years experience made us to be the biggest manufacturer of heating cable in Asia. The only one have CE UL ETL TUV CSA certificate  in Aisa. And 6-year's supplier of homedepot ,GE ,Grainger.

Products include heating mat ,heating cable ,thermostat and self regulating heating cable , All products approved and 100% inspected.Only adopts high_quality raw materials, key materials imported from American, Japan and Germany . It made our products with excellent quality .Better than any other competitors  in China .

25-year warranty for underfloor heating system, 10-year warranty for self-regulating  heating system; Deal and solve any of your concerns at the earliest time
Besides, we have a new cable only 2mm thickness.
