• Model NO.：S,FTP Cat6A
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
• Model：S,FTP CAT6A
• Brand：Risun or OEM
• Conduct Material：Solid Bare Annealed Copper
• Insulation Material：Foam Skin Polyethylene
• Individual Screen：Aluminum , Polyester Tape
• Screen：Tinned-Copper Braid
• Outer Sheath Material：Lsfrzh
• No.of Conductor：8 Core, 4pairs
• Color：Blue,White or According Customer Requirement
• Drain Wire：None
• Ripcord：None
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：CE, ISO, RoHS, ETL SGS CPR ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

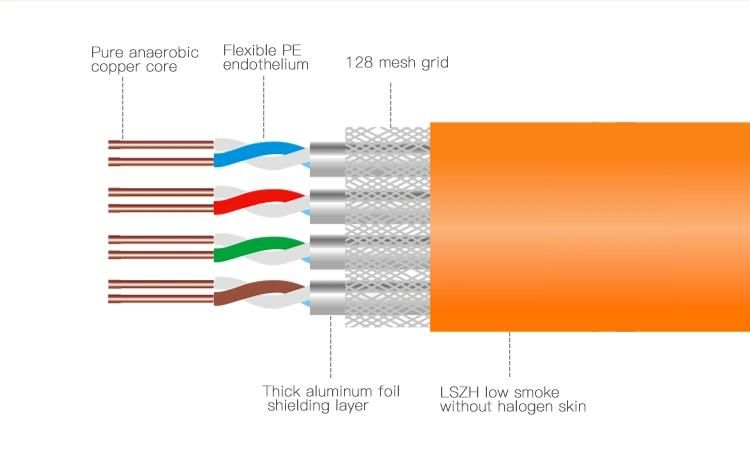

S/FTP CAT6A solidConductorMaterial: solid bare annealed copper
Nominal diameter: 23 AWGInsulationMaterial: Foam skin polyethylene.
Nominal diameter: 1.3 mm.Individual screenaluminum / polyester tapeScreentinned-copper braidOuter Sheath Material: LSFRZHPair Colour Identification1st White-Blue + Blue
2nd White-Orange + Orange
3rd White-Green + Green

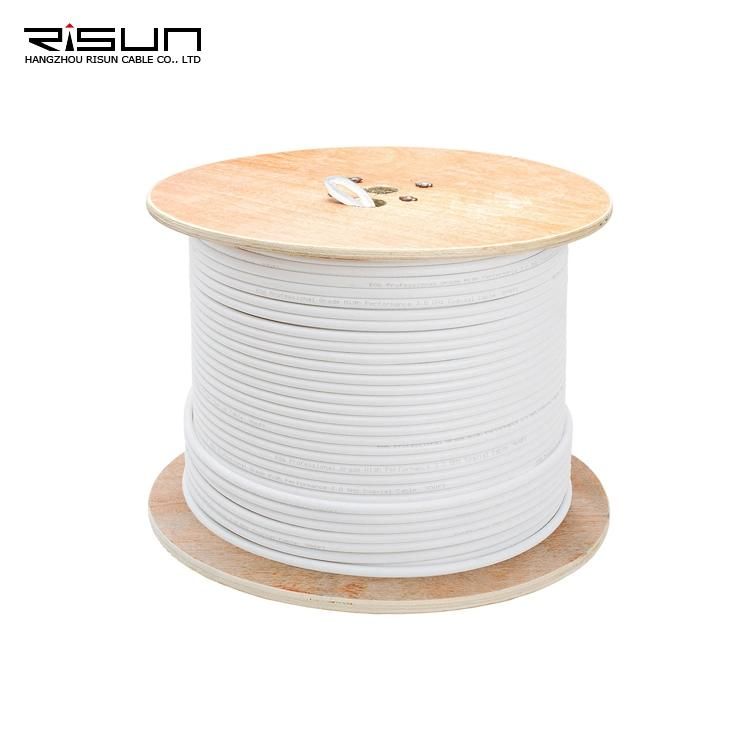

4th White-Brown + BrownPackage305M/1000ft, Wooden Reel, Carton, PalletDelivery timeNormally 25 days after received the deposit.Application10BASE-T (IEEE 802.3)
100BASE-T (IEEE 802.3)
1000BASE-T (Gigabit Ethernet)
10GBASE-T (10Gigabit Ethernet)
Power Over Ethernet

Electrical Characteristics@20°C:Max. DC Resistance:95Ω/kmNom. Mutual Capacity45pF/mNVP:80%Mean input Impedance:100 ± 5 @ 100MHzΩDelay Skew:5ns/100mSegregation class:d-Coupling attenuation:Min.80dB

Mechanical Characteristics:Min. bending radius in operation30mmMin. bending radius during installation60mmMax. pulling tension110NNominal weight60kg/kmNom. outer diameter7.6mmNom. wire diameter23AWG Storage Temperature-20 to +70ºCOperating Temperature-20 to +70ºCDuring installation0 to +50ºC

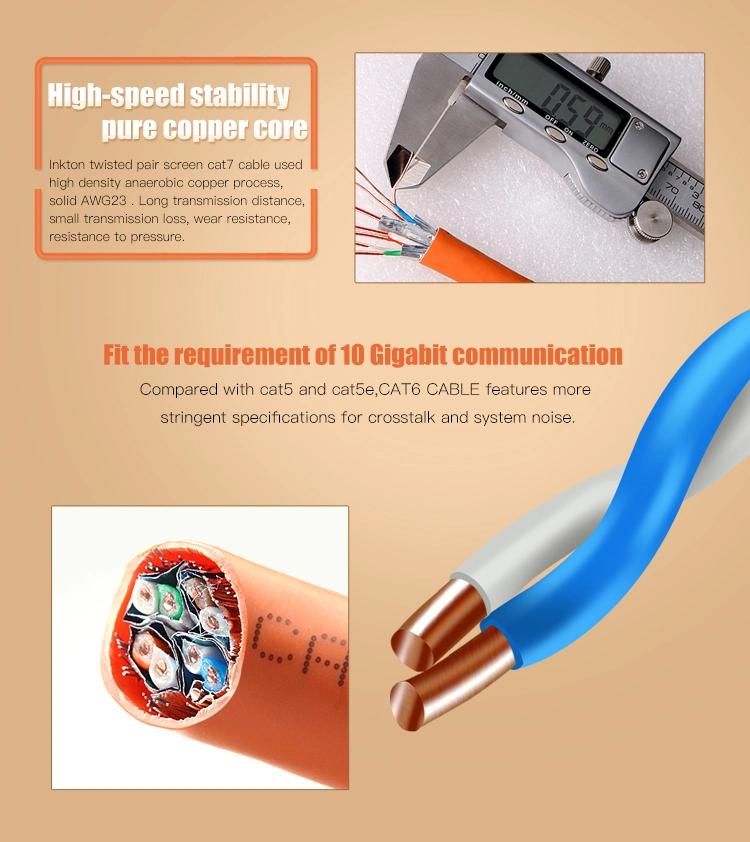

Details Images:

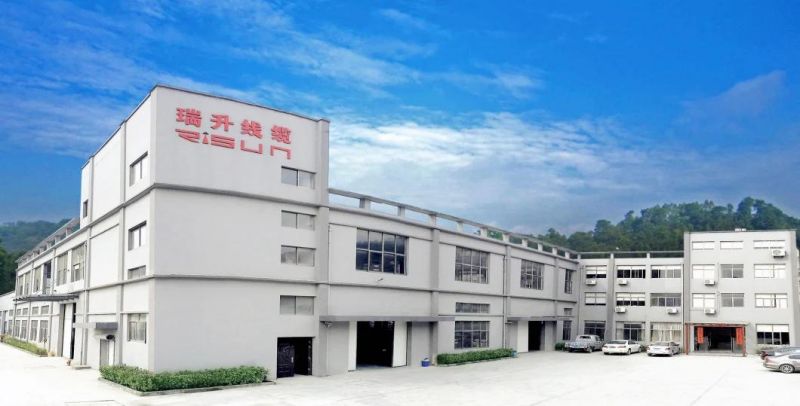

Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.

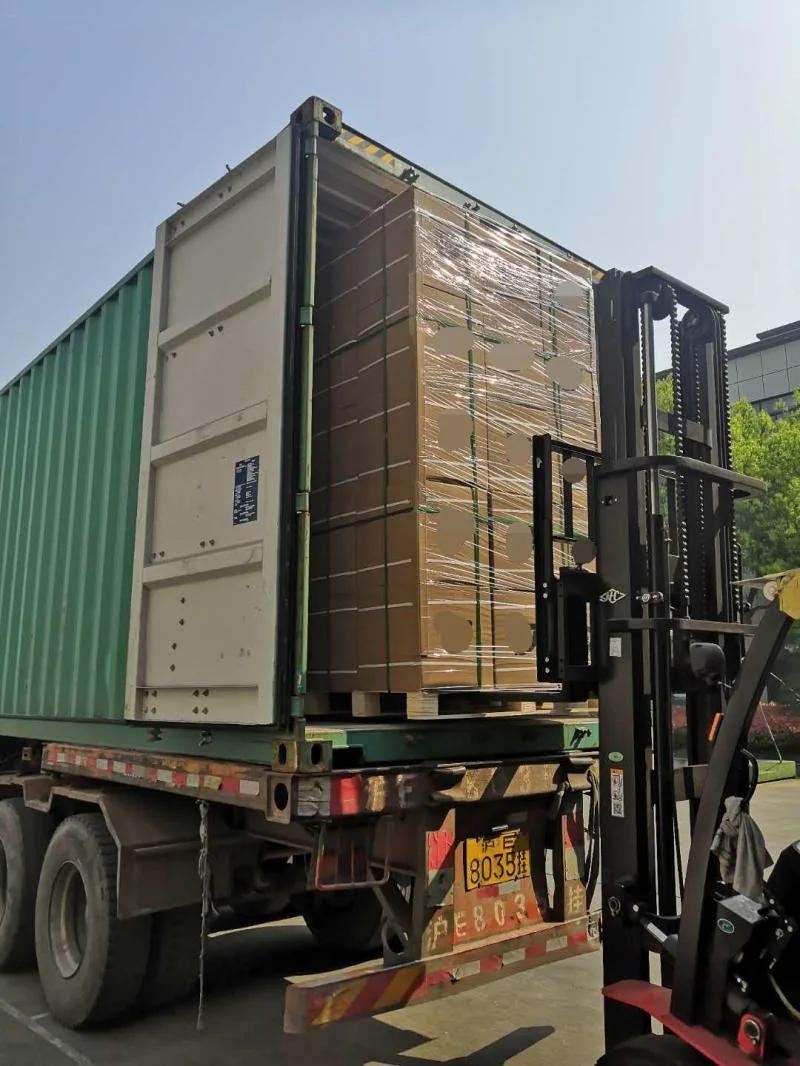

Packing&Shipping:













Why Choose Us:



FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
