• Model NO.：U,UTP Cat6a
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
• Model：U,UTP CAT6A
• Brand：Risun or OEM
• Conductor：Bare Solid Copper Wire AWG23 (Ø 0.56mm)
• Insulation：Polyethylene Ø 1.18 mm(Nom.)
• Twisting：2 Wires to The Pair
• Cable Lay up：4 Pairs to The Core with Cross Separator
• Pair Screen：Non
• Screen：Tinned-Copper Braid
• Overall Tape：Non-Continous Alien X-Talk Suppression Tape
• Sheath：Lsfrzh, Gray
• Drain Wire：None
• Ripcord：None
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：CE, ISO, RoHS, ETL SGS CPR ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

S/FTP CAT6A solidConductorBare solid copper wire AWG23 (Ø 0.56mm)InsulationPolyethylene Ø 1.18 mm(nom.)Twisting2 wires to the pairCable lay up4 pairs to the core with cross separatorPair screenNonOverall TapeNon-continous Alien X-Talk suppression tapeSheath LSFRZH, grayPair Colour Identification1st White-Blue + Blue
2nd White-Orange + Orange
3rd White-Green + Green
4th White-Brown + BrownPackage305M/1000ft, Wooden Reel, Carton, PalletDelivery timeNormally 25 days after received the deposit.ApplicationPrimary (Campus), Secondary (Riser), Tertiary (Horizontal)
IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T; 10GBase-T
IEEE 802.5 16 MB; ISDN; TPDDI; ATM
IEEE 802.3af-2002: POE; IEEE 802.3at: POE+

Technical Data:DC loop resistance ≤ 15.8 Ω / 100 mResistance unbalance ≤ 2 %Test voltageDC, 1 min, core/core1000 VInsulation resistance500 V≥ 2000 MΩ * kmCapacitanceAt 800 Hz43 pF / m nom.Capacitance unbalance(pair to ground)≤ 1200 pF / kmMean characteristic
impedanceAt 100 MHz100 ± 5 ΩNominal velocity of
propagation Approx. 66 %Propagation delayAt 1 MHz≤ 427ns / 100 mDelay skew ≤ 12 ns / 100 mCoupling attenuation 55 dBBalance TCLAt 1 MHz≥ 40 dB At 10 MHz≥ 40 dB At 100 MHz≥ 30 dBPS-Alien NEXTAt 100 MHzMin. 67 dB  Typ. 73 dB

Mechanical Properties:Bending radius≥ 32 mm during operation (without load) ≥ 64 mm during installation (with load)Temperature rangeDuring operation -20°C…+ 60°C During installation 0°C…+ 60°C

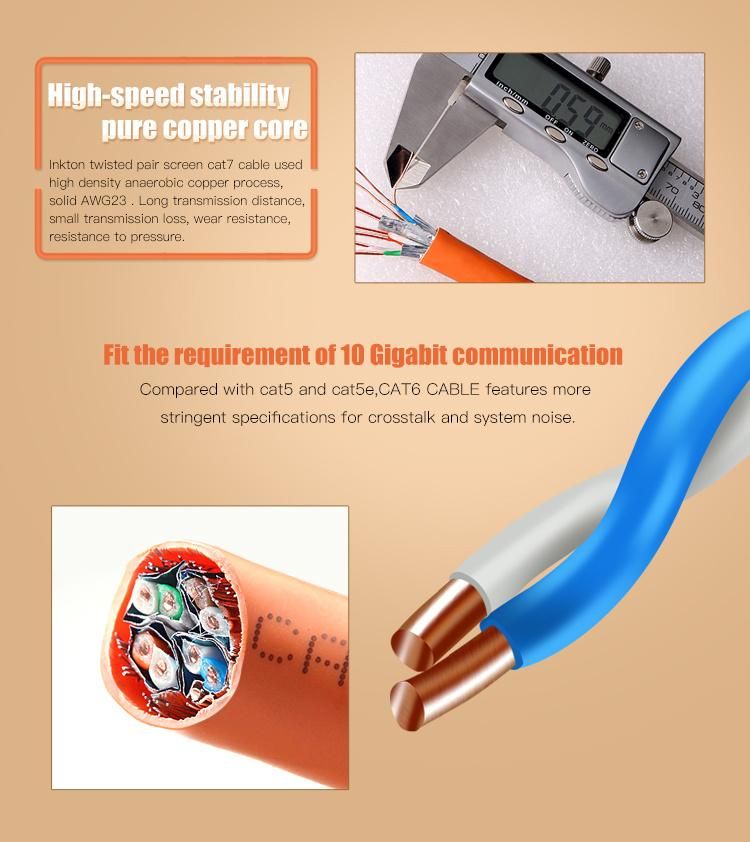

Details Images:










Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.



Packing&Shipping:













Why Choose Us:



FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
