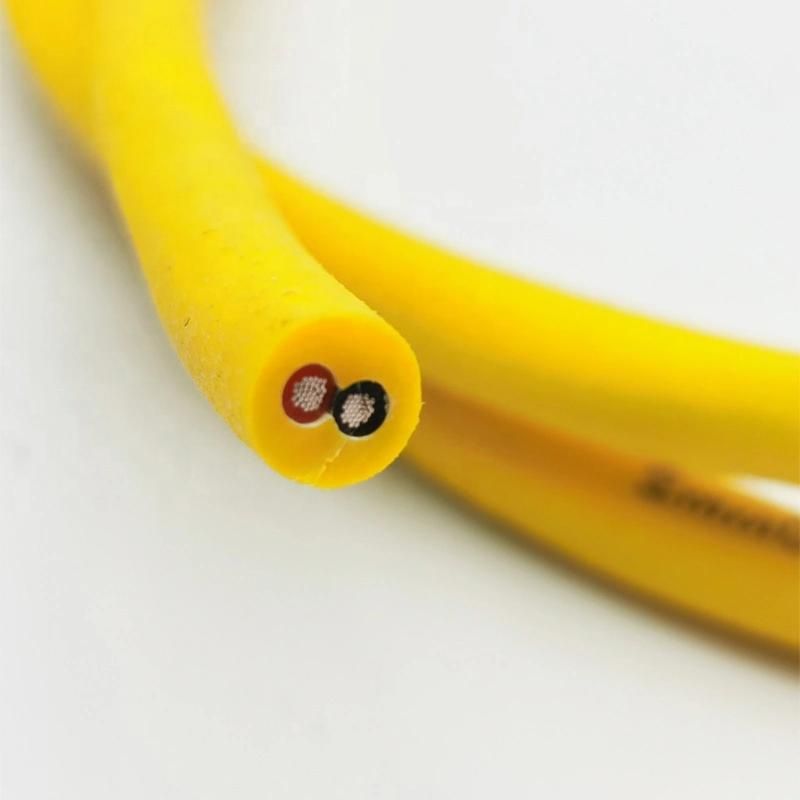

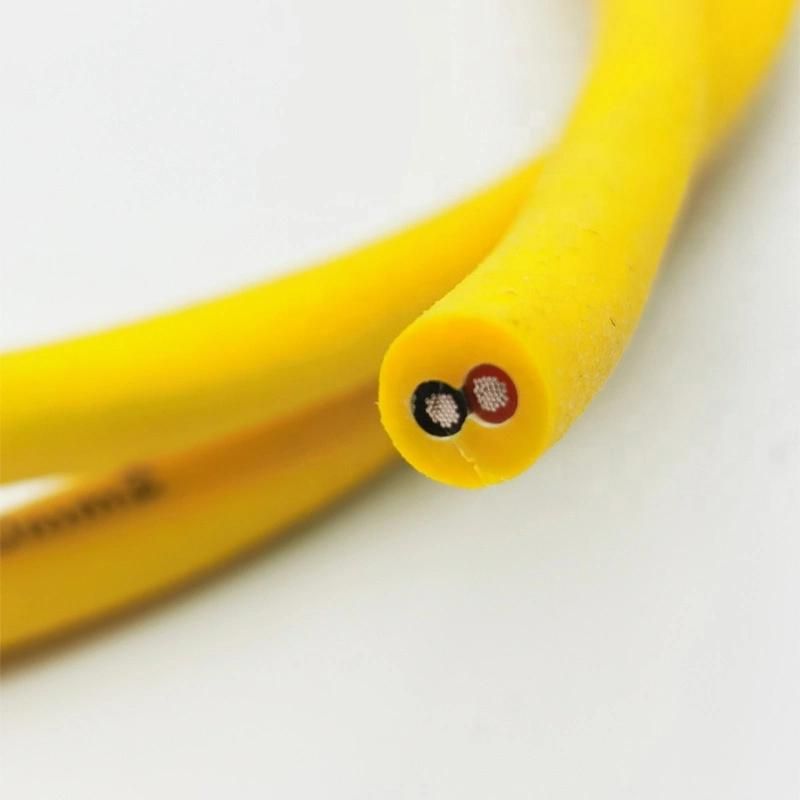

F-Cvv 600V PVC Power Cable Low Voltage Electrical Wire 0.5 mm2 up to 6 mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Installation
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：F-CVV PVC Power Cable
  • Material Shape：Round Wire
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemF-CVV CableConductorCopper (as client's required)InsulationSpecial Thermoplastic Insulation (as client's required)Outer SheathSpecial Thermoplastic Sheath (as client's required)Core NumberMulti-coresSpecifications0.5 mm2 up to 6 mm2Nominal Voltage600/1000VTest Voltage3500VOperating Temperature-10ºC to +90ºCMinimum Bending Radius15 × cable diameter ColorOptionalCharacteristicFire resistance
Environmental protectionApplicationIt is widely applicable to the monitoring system of electrical appliances,control equipment, automation devices and electrical equipment and power plant control circuits. It can be installed outdoors or installed in dry or humid cable trenches.
