ACSR AAAC AAC Acar Bare Aluminum Conductor Overhead Line

Henan Hongda Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead
  • Conductor Material：Aluminum
  • Sheath Material：PVC or XLPE
  • Insulation Material：PVC or XLPE

Base Info

  • Model NO.：DIN 48201-5
  • Material Shape：Round Wire
  • Range of Application：Overhead Electric Power Transmission
  • Certification：ISO9001, CCC
  • Brand：Hongda
  • Product Name：Aerial Cable
  • Standard：IEC, BS, AS,NZS, SABS
  • Color：as Your Require
  • Core Number：as Your Require
  • Rated Voltage：1kv-35kv
  • Rated Temperature：70c 90c 120c 200c
  • Armour：None Armour
  • Strand Number：7, 19, 37, 54, 61, 91
  • Transport Package：Wooden Drum, Steel & Wooden Drum
  • Specification：0.5mm2-400mm2
  • Trademark：Hongda
  • Origin：Henan China
  • HS Code：8544492100
  • Production Capacity：3000km,Month

Description

Codeword

 Size
(kcmil)

No. of
Wires

Resistance
(ohm/kft)

Ampacity*
(A)

DC at 20°C

AC at 75°C

Alton

48.69

7

0.414

0.492

143

Ames

77.47

7

0.260

0.311

191

Azusa

123.3

7

0.164

0.195

256

Anaheim

155.4

7

0.130

0.155

296

Amherst

195.7

7

0.103

0.123

342

Alliance

246.9

7

0.0816

0.0973

395

* Based on 75°C conductor temperature, 25°C ambient temperature, in sun and wind at 2 ft/sec.

Types

Nominal cross-sectional areaNo./Diameter of single wireApproximate
overall diameter of cableApproximate weight of cable Nominal
Breaking LoadMaximum DC
Resistance at 20ºCCurrent
RatingNominal [mm2]Actual [mm2]mmmmkg/kmdaNΩ/kmA1615.897/1.705.1442901.8018832524.257/2.106.3674251.18081083534.367/2.507.5945850.83321345049.487/3.009.01358100.57861685048.3619/1.809.01338600.59501667065.8219/2.1010.518111500.43712009593.2719/2.5012.525615950.3084248120117.0019/2.8014.032219100.2459285150147.1037/2.2515.240625700.1960328185181.6037/2.5017.550131050.1587373240242.5461/2.2520.267040150.1191445300299.4361/2.5022.582748500.09650506400400.1461/2.8926.0110561900.07221602500499.8361/3.2329.1138176000.05781688625626.2091/2.9632.6173396900.04625786800802.1091/3.3536.82219120550.036119071000999.7191/3.7441.12766148450.028971026

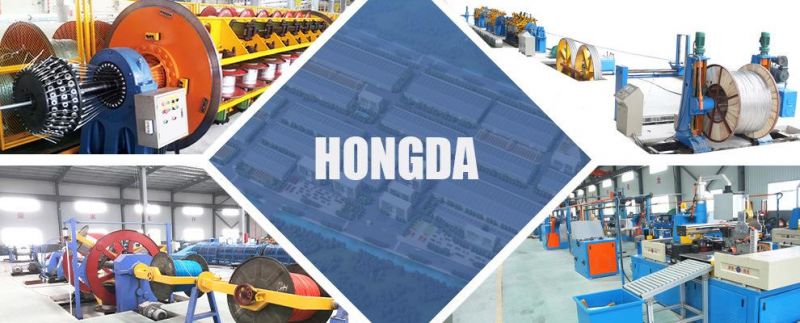

6. Factory


ACSR AAAC AAC Acar Bare Aluminum Conductor Overhead Line


     Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Hongda Cable
covers an area of 100,000 square meters, including 50,000 square meters of building area. We have more than 120 staff members and professional workers. our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity
     Henan Hongda Cable Co. Ltd. is the original Zhengzhou Hongda Cable Co. Ltd. established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products,We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 300 (sets) domestic and oversea-leading production and testing equipment


7. Packing and Transportation
  We provide you with the best product packaging design services, thereby allowing you to save more shipping charges


8. Certificate

ACSR AAAC AAC Acar Bare Aluminum Conductor Overhead Line



Contact information:

Any needs or question ,please contact us ,we will be more pleasure to service you.

We are looking forward to your inquiry and nice cooperaton.
