• Model NO.：FC APC
• Core：Double Core
• Certification：RoHS
• Brand：OEM
• Sheath Material：PVC
• Operating Temperature：-40~75°c
• Storage Temperature：-45~85°c
• Fiber Grade：G.652.D
• Transport Package：1PC,Bag
• Specification：Any length are available
• Trademark：SMD
• Origin：Shenzhen China
• HS Code：8544700000
• Production Capacity：200000,Month

Basic Info.

Model NO. FC APC Core Double Core Certification RoHS Brand OEM Sheath Material PVC Operating Temperature -40~75°c Storage Temperature -45~85°c Fiber Grade G.652.D Transport Package 1PC/Bag Specification Any length are available Trademark SMD Origin Shenzhen China HS Code 8544700000 Production Capacity 200000/Month

Product Description

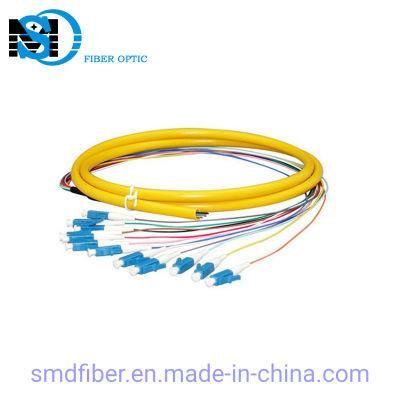

FC/Apc 12 Cores Bundle Fan out Fiber Optic Pigtail

Features

High quality ferrules
Strict quality testing: Insertion Loss and Return Loss 100% tested
Compliant with Telcordia GR-326-CORE, IEC, REACH, ROHS standards

Applications

LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, EPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net

Specification


Parameter	Unit	SM PC	SM  UPC	SM APC	MM PC	ST, MU SM PC
Insertion loss(typical)	db	≤ 0.3	≤ 0.2	≤ 0.3	≤ 0.2	≤ 0.3
Return loss	db	≥ 45	≥ 50	≥ 60	≥ 30	≥ 45
Operating wavelength	nm	1310, 1510	1310, 1510	1310, 1510	1310, 1510	1310, 1510
Exchangeability	db	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Vibration	db	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Operating temperature	° C	-40~75	-40~75	-40~75	-40~75	-40~75
Storage temperature	° C	-45~85	-45~85	-45~85	-45~85	-45~85
Cable diameter	mm	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9
