U1000 Rvfv Cable Armored Copper Cable
Henan Hongda Cable Co., Ltd.- Application:Construction, Underground, Power Station
- Voltage:Low and Medium Voltage Cable
- Current:DC Cable
- Insulation Material:XLPE
- Sheath Material:PVC
- Material Shape:Round Wire
Base Info
- Model NO.:YJV22 YJV32
- Wire Core Material:Bare Copper Wire
- Certification:ISO, CCC
- Model:Yjv22
- Brand:Hognda
- Transport Package:in Drum or in Pallent
- Specification:1.5 2.5 4 6 10 16 25 35 50 70 95
- Trademark:OEM
- Origin:Henan
- HS Code:8544492100
- Production Capacity:10000 M Per Day
Description
Basic Info.
Model NO. YJV22 YJV32 Wire Core Material Bare Copper Wire Certification ISO, CCC Model Yjv22 Brand Hognda Transport Package in Drum or in Pallent Specification 1.5 2.5 4 6 10 16 25 35 50 70 95 Trademark OEM Origin Henan HS Code 8544492100 Production Capacity 10000 M Per DayProduct Description
Application:0.6/1kV XLPE insulated power cable is used indoor or outdoor, in tunnel, cable furrow or pipe. It is able to bear external mechanical forces, but the tractive force during laying.Standards : IEC 60502,BS 5467, NF C 32-322
Rated Voltage Uo/U (Um) : 0.6/1 KV

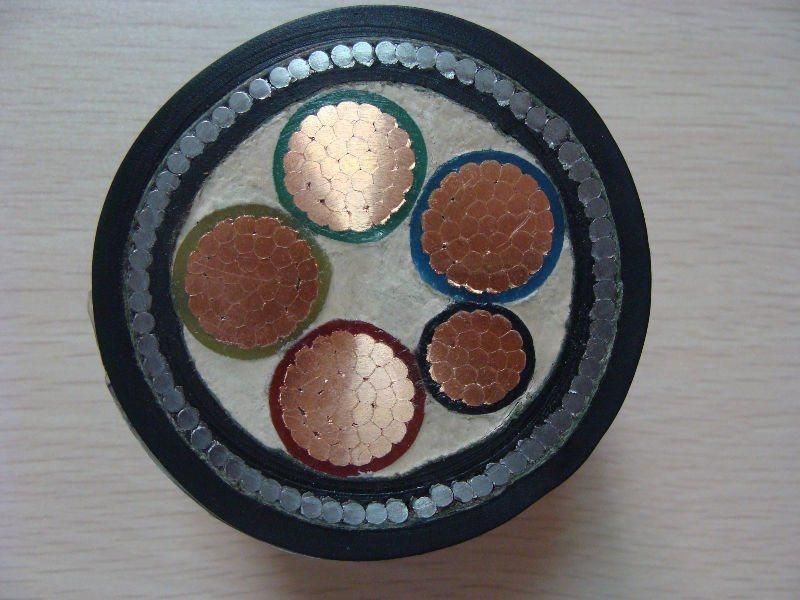

Conductor: Copper or Aluminum
Conductor shape : Stranded circular or shaped (sector) conductor
Cores number: 1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E
Insulation: XLPE (Cross-Linked Polyethylene)
Armor: non-armor, steel tape armored, steel wire armored
Sheath: PVC
Sheath Color: Black or Colors as your request.
Range of Nominal cross section: 1.5 mm2 ~ 630 mm2
8AWG~4/0AWG,300MCM,500MCM,750MCM
Usage characteristics:
Max. conductor temperature in service: 90°C
Short-circuit max. conductor temperature: 250°C
Operating temperature, range : -25 .. 60°C
Flame retardant cables can be available by the special request.
Water blocking cables can be available by the special request.
Certificate: ISO ,CE , SGS
