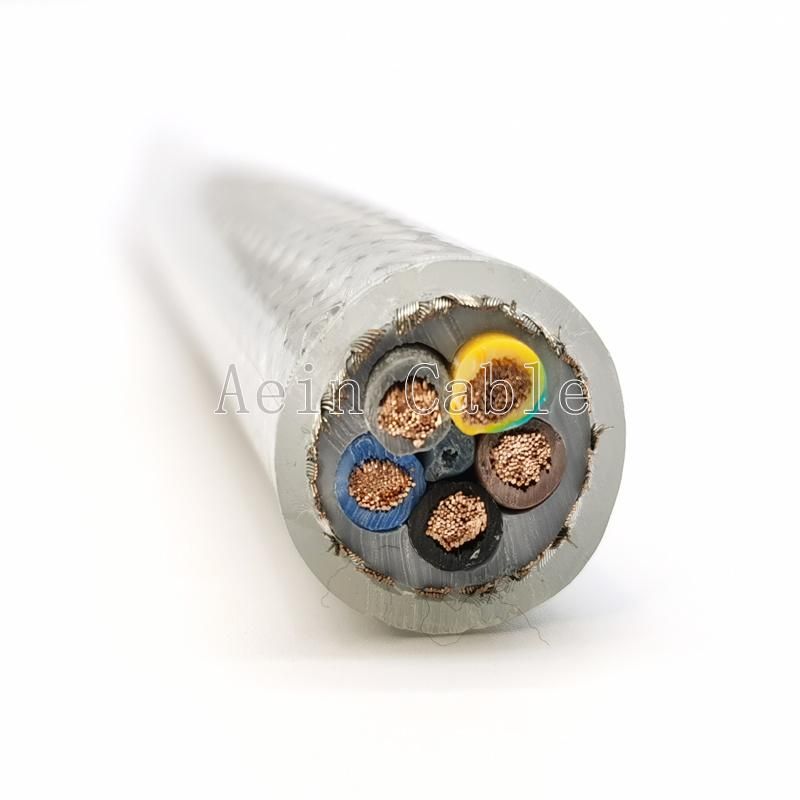

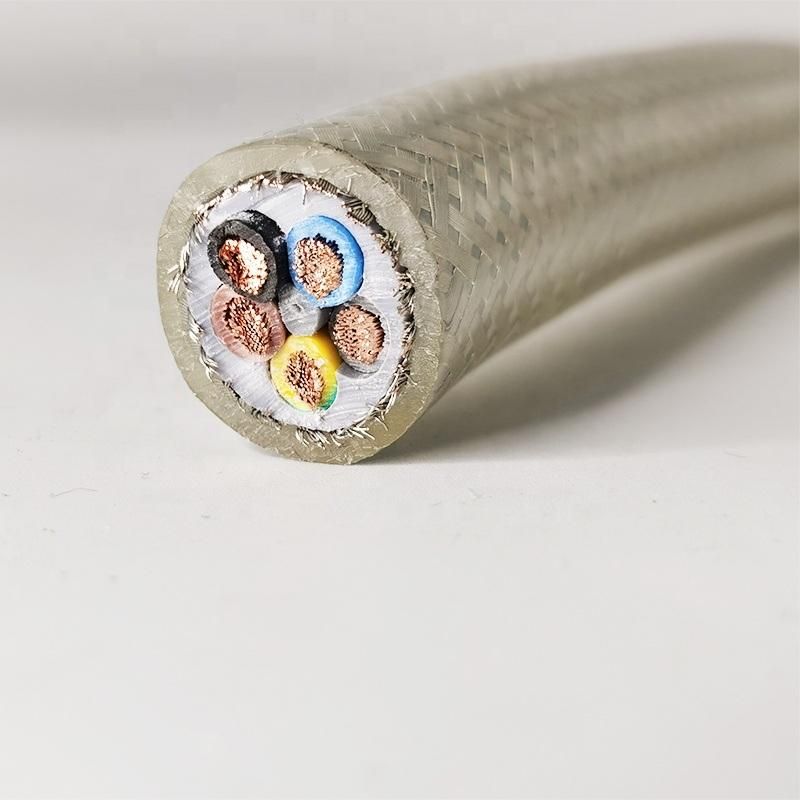

Low Voltage 300/500V Opvc-Jz/Oz-Ysy Cable 0.6/1 Kv Opvc-Jb/Ob-Ysy Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Electrical Facilities
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：OPVC-JZ,OZ-YSY OPVC-JB,OB-YSY Cable
  • Material Shape：Round Wire
  • Range of Application：Acids Resistant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemOPVC-JZ/OZ-CY Cable for Lossless Data and Signal TransmissionConductorBare copper strandInsulationPVCInner sheathPVCShieldCopper braid tinnedOuter sheathPVCSheath ColourTransparentCore NumberMulticores (As client's requirement)Rated VoltageUo/U - JZ/OZ: 300/500 V || JB/OB: 0,6/1 kVTest Voltage4000 VTemperature RangeFixed min/max -30 °C / +80 °C
Moved min/max -15 °C / +70 °CBending RadiusFixed 6 x d
Moved 15 x dColorOptionalSpecial Features• 4 kV testing voltage
• No storage outdoors or in wet rooms
• JZ/OZ: 300/500 V, JB/OB: 0,6/1 kV (from 25 mm²)
• Largely resistant to acids, bases and specified types of oil
• Triple protection for high mechanical requirements and magnetic shield (oxidationproofed steel wire braid and additional inner sheath)ApplicationPower, control and connecting cable in electrical facilities, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection, no laying underground.
