Flame-Jz/Oz-CH Frnc Cable Halogen-Free and Environmentally Power Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Electrical Facilities
  • Conductor Material：Copper
  • Sheath Material：Halogen Free Compound
  • Insulation Material：Halogen Free Compound

Base Info

  • Model NO.：FLAME-JZ,OZ-CH FRNC Cable
  • Material Shape：Round Wire
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

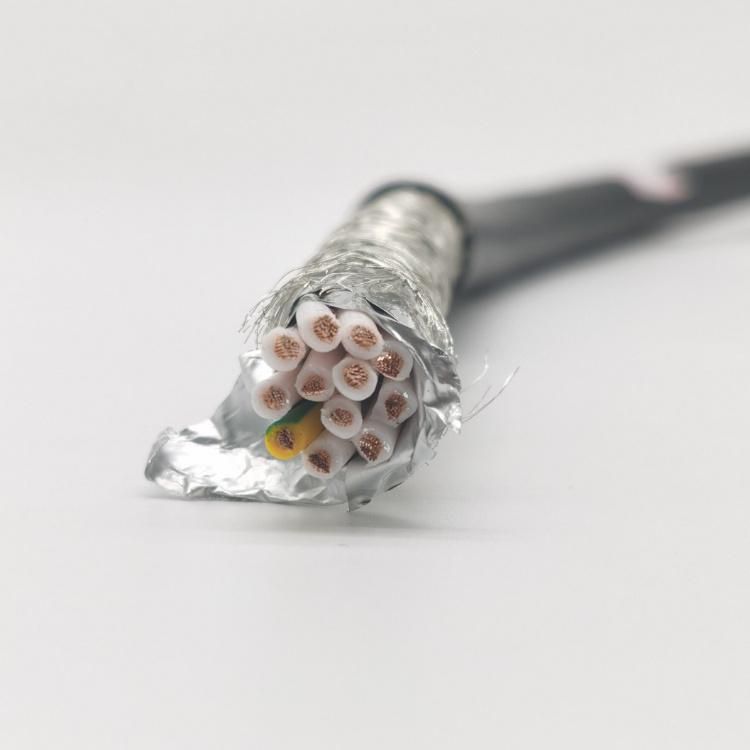

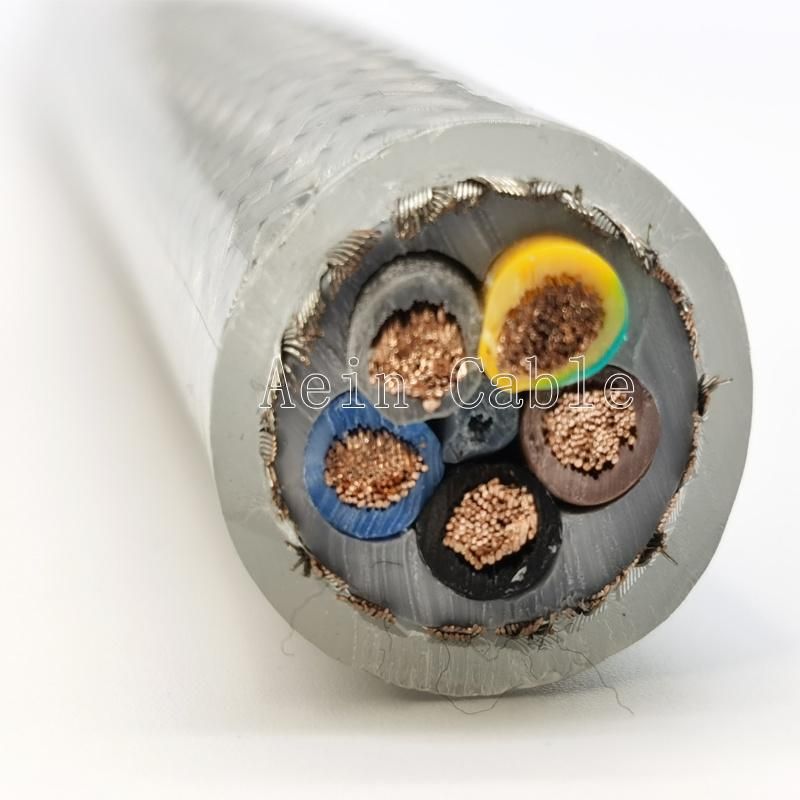

ItemFLAME-JZ/OZ-CH FRNC Environmentally Power cable ConductorBare copper strandInsulationSpecial halogen-free compoundShieldCopper braid tinnedOuter sheathSpecial halogen-free compoundCore NumberMulticores (As client's requirement)Rated VoltageUo/U  300/500 V Test Voltage3000 VTemperature RangeFixed min/max -40 °C / +70 °C
Moved min/max -5 °C / +70 °CBending RadiusFixed 6 x d
Moved 15 x dColorOptionalSpecial Features• LABS-free (during production)
• FRNC (Flame Retardant, Non Corrosive)
• LSF 0H ( Low smoke in fume, zero halogen)ApplicationHalogen-free and environmentally power, control and connecting cable in electrical facilities, in fire vulnerable areas and facilities with high concentration of people and property values, for fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry and humid rooms. Outdoor use only with UVprotection, no laying underground.
