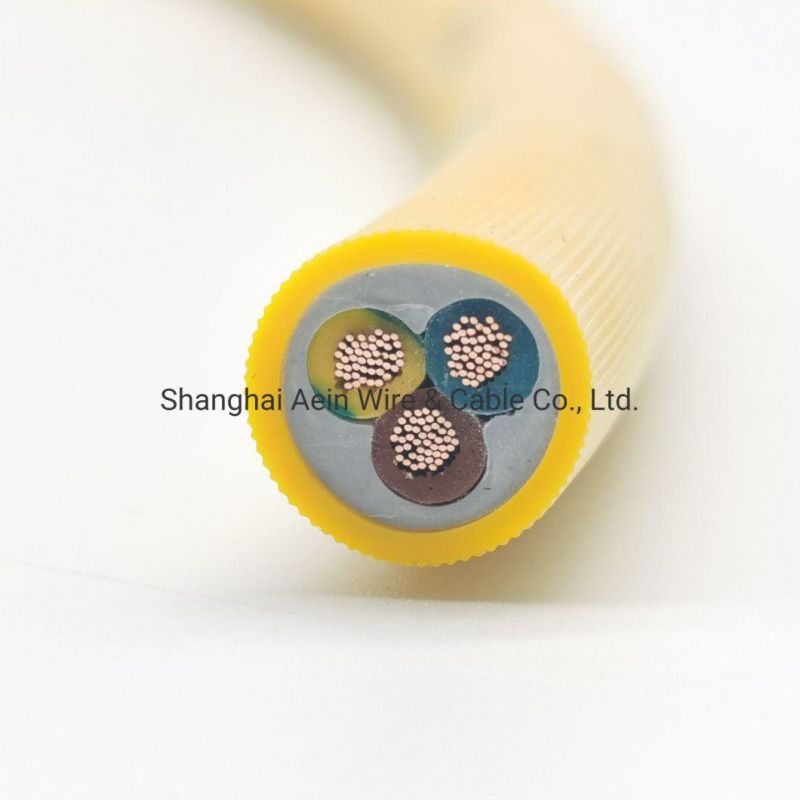

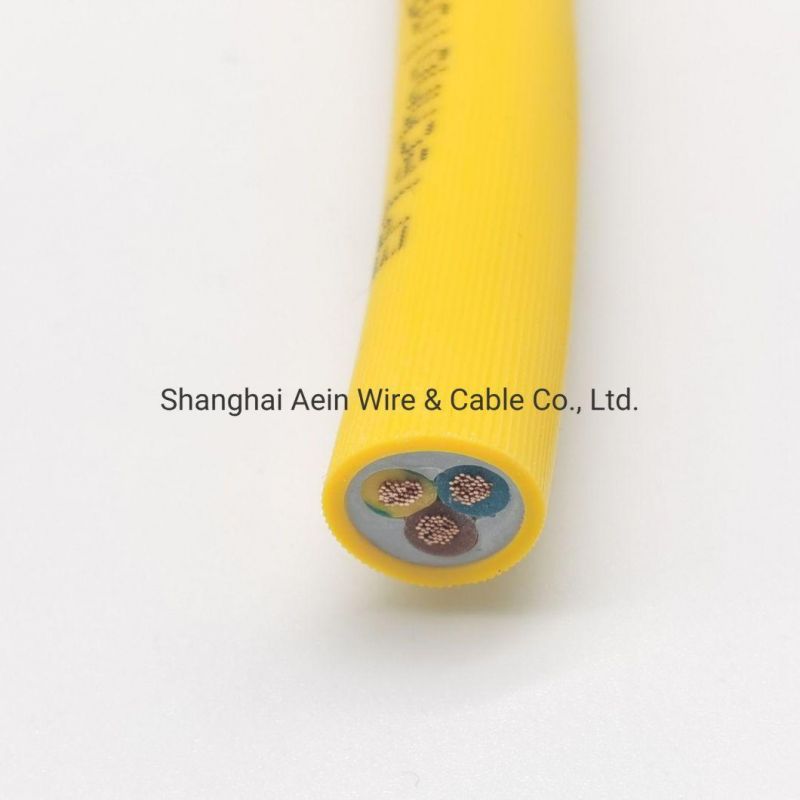

Xgb-CCA F2 1kv Installation Cable XLPE Insulated 0.6/1kv

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Industrial Installations
  • Conductor Material：Copper
  • Sheath Material：Hf Thermoplastic (Halogen Free)
  • Insulation Material：XLPE

Base Info

  • Model NO.：XGB-CCA F2 1kV Installation Cable
  • Material Shape：Round Wire
  • Range of Application：Industrial Installations
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemXGB-CCA F2 1kV Installation CableConductorCopper wire bareInsulationXLPEOuter sheathHF Thermoplastic (Halogen free)Voltage RatingUo/U 0.6/1kVTest Voltage3500VTemperatureOperating: -15ºC to +60ºC
Minimum Installation: 0ºC
Maximum conductor temperature in service: +90ºCColorOptionalApplicationInstallation cable for buildings with high concentrations of people or valuable equipment, especially in difficult evacuation conditions. This cable can be used in cable conduit, cable duct, embedded in concrete, cement or walls. It can also be used in open air protected from direct UV rays, in industries and houses. Underground installation is allowed provided the cable is installed in a sufficiently drained tube. Operating temperatures down to -15°C are permitted, only if there are no mechanical forces nor movements.
