4p*24AWG Od5.5mm UTP Cat5e Cable
Antenk Electronics Co., Ltd.- Application：Industrial, Power Station, Telecommunication, Computer
- Voltage：Low and Medium Voltage Cable
- Insulation Material：PE
- Sheath Material：PVC
- Material Shape：Round Wire
- Wire Core Material：Bare Copper Wire
Base Info
- Certification：ISO, RoHS
- Model：UTP Cable
- Brand：Antenk
- Wire：8c
- Length：2000mm
- Transport Package：Bag
- Specification：4P*24AWG OD5.5MM
- Trademark：ANTENK
- Origin：China
- HS Code：8544421900
- Production Capacity：300000
Description
Basic Info.
Certification ISO, RoHS Model UTP Cable Brand Antenk Wire 8c Length 2000mm Transport Package Bag Specification 4P*24AWG OD5.5MM Trademark ANTENK Origin China HS Code 8544421900 Production Capacity 300000Product Description
Product DescriptionUTP CATE Cable RJ45 patch cable 4P*24AWG OD5.5MM BLACK 8P8C PLUG RIGHT ANGLE TO 8P8C PLUG STRAIGHT L=2000MM
Conductor: 24AWG(Solid or Strand) CU/CCA/CCS
Insulation: 0.92mm+/-0.06HDPE
Sheath: 5.20+/-0.1mm PVC / LSOH / PVC (UV)/ PE / HFFR
Packing: 1000ft/pull box, 2boxes/out carton
Or as customers' requirments.
Elongation: Min. 300%
Temperature Range: -20 up to +75C
Tensile strength: Min. 1.68Kg/mm2
Conductor Resistance: Max. 9.38 ohm/100m
Resistance Unbalance: Max. 2%
Insulation Resistance: Max. 150 ohm/Km
Mutual Capacitance: Max. 5600pF/100m
Capacitance Unbalance: Max. 330pF/100m
Impedance: 100+/-15
Spark Test: 2000V
Velocity of propagation: 67%

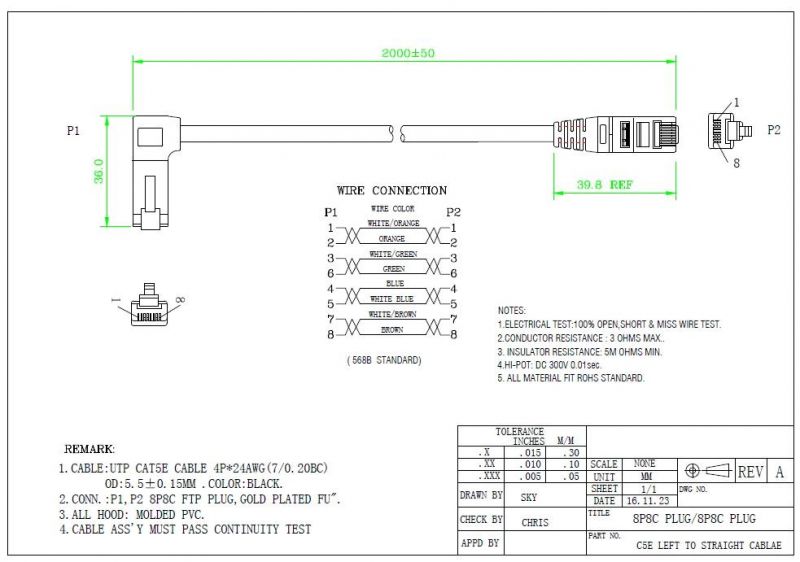

DRAWING
