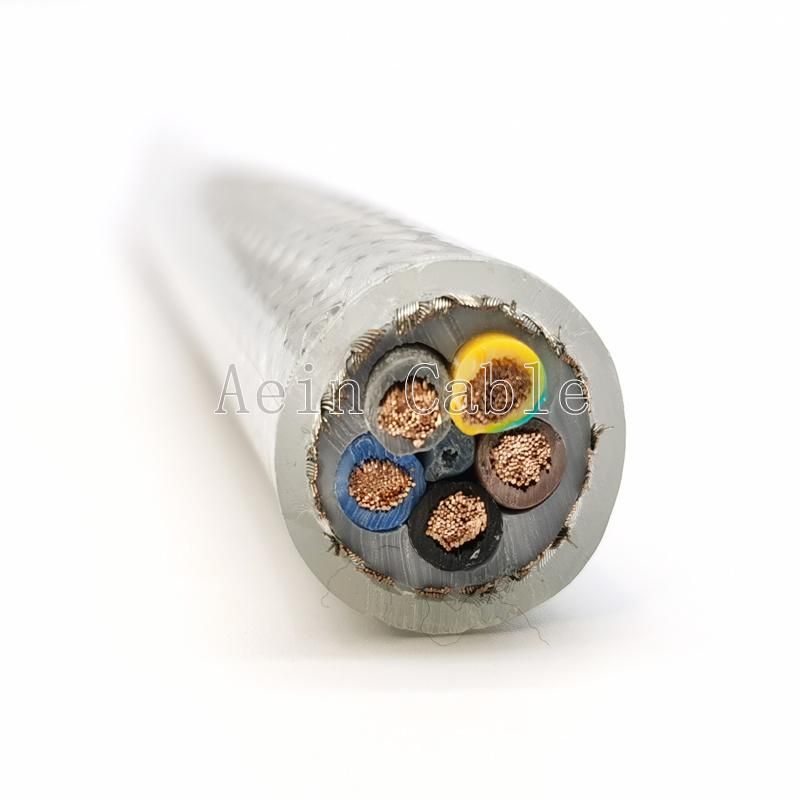

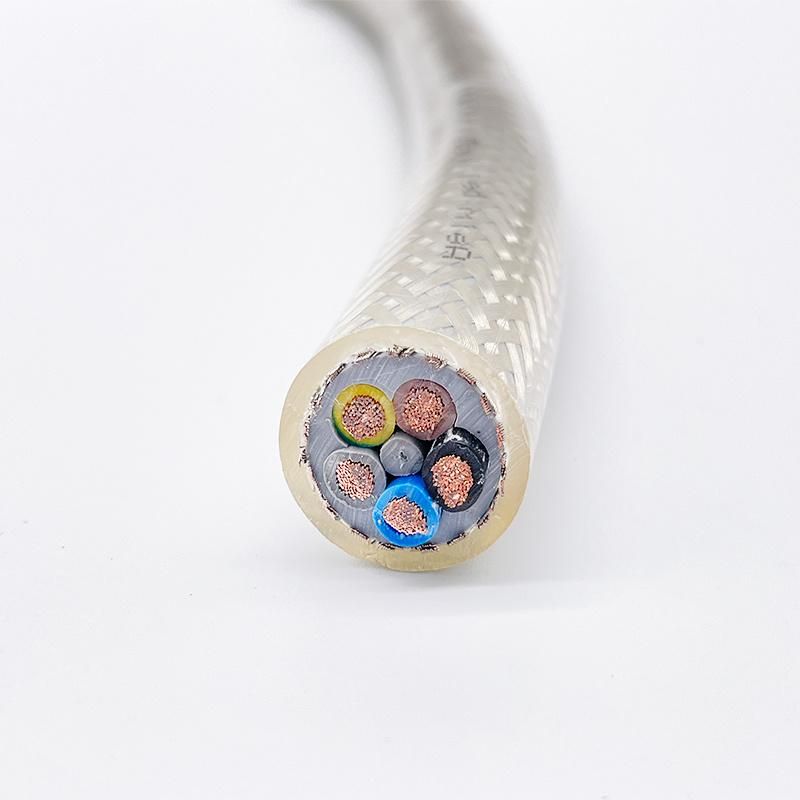

Oil-Resistant 2yslcy-J Cable Halogen Free Cables 4 Cores 1.5mm2 up to 240mm2

Shanghai Aein Wire & Cable Co., Ltd.

Type：Insulated
Conductor Type：Stranded
Conductor Material：Copper
Sheath Material：PVC
Insulation Material：PE
Material Shape：Round Wire

Base Info

Model NO.：2YSLCY-J Cable
Range of Application：Electrical Facilities
Certification：ISO9001, CE, UL, RoHS
Brand：Aein
Transport Package：Optional
Specification：Multicore
Trademark：AEIN
Origin：Shanghai
HS Code：8544492100

Description

Item2YSLCY-J CableConductorPlain copper flexible wire, class 5InsulationPEFillerNon-hygroscopic compoundScreenDouble screen of aluminium laminated tape and braid of tinned copper wire, braid shield of coverage bigger than 80%Outer SheathPVCCore NumberMulti-coresNominal Voltage600 / 1000 VOperating temperature rangeFor fixed installation from - 40 to + 70°C
For movable installation from + 5 to + 70°CConductor temperature limit in work conditions70°CColorOptionalApplicationThis shielded cables are intended for connecting converters or inverters with motors in industrial installations, production plants, air-conditioners and other equipment operating in dry and wet locations. Cables are protected by a specially designed and highly effective collective shield against emission of electromagnetic interferences to environment and against influence of external interferences.
