15kv Concentric Copper Power Cables 2X400mm2 2X300mm2

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：Concentric Cables
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC
  • Model：Concentric Cable
  • Brand：Yifang
  • Standard：IEC 60502
  • Transport Package：Steel Wooden Drum
  • Specification：2x185mm2, 2x300mm2, 2x240mm2, 2x400mm2
  • Trademark：YIFANG
  • Origin：China
  • HS Code：8544601200
  • Production Capacity：10000m Per Week

Description

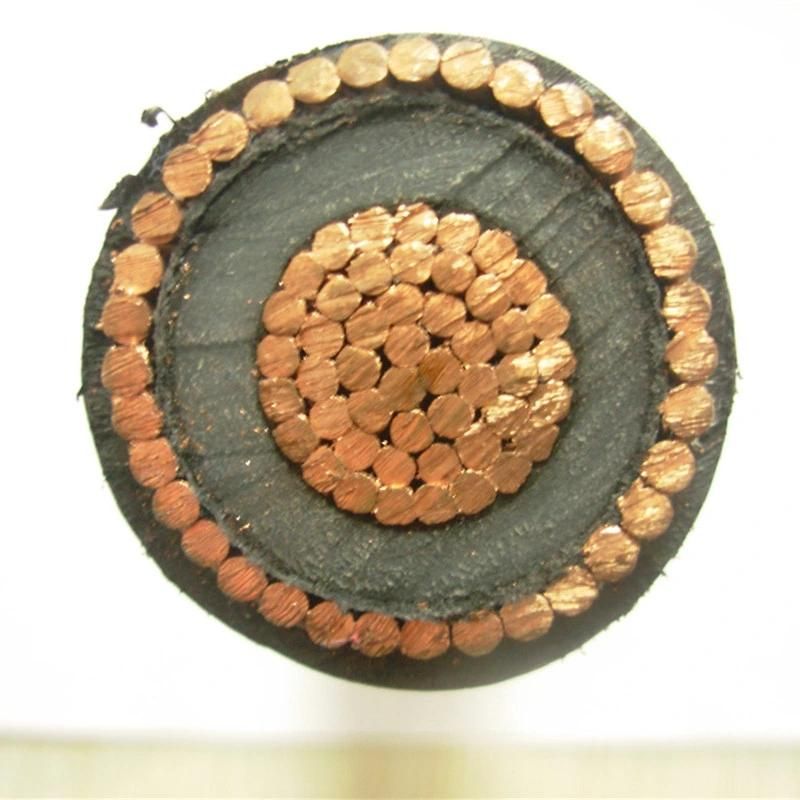

ITEMDESCRIPTIONUNITDATA1Standard to which the cable conform--IEC 60502-22Conductor  Conductor Material--Stranded Copper Wire,
compacted roundCore number of conductor--1Conductor Cross-sectional Areamm2400Min. Stranding NumberNo.53Approx. Conductor Diametermm23.6Max. D.C. Resistance of conductor at 20ºCΩ/km0.0473Conductor Screen  Material Semi-conducting compoundNominal thicknessmm0.64Insulation  Material--XLPENominal thicknessmm4.55Insulation screen  Material--Semi-conducting compoundNominal thicknessmm0.76Concentric layer  Material--Copper wireDia. of single wiremm4.37Wrapping tape--Non-woven clothing tape8Outer sheath  Material--PVCNominal thicknessmm2.49Complete cable  Overall diameter (approx.)mm50.2Weight per km (approx.)Kg/km830015kv Concentric Copper Power Cables 2X400mm2 2X300mm2
