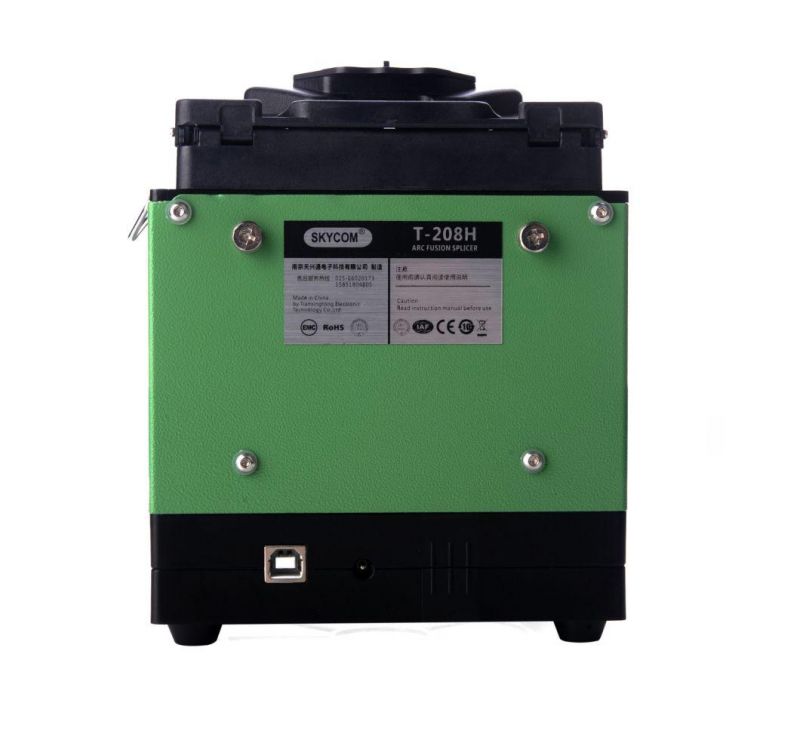

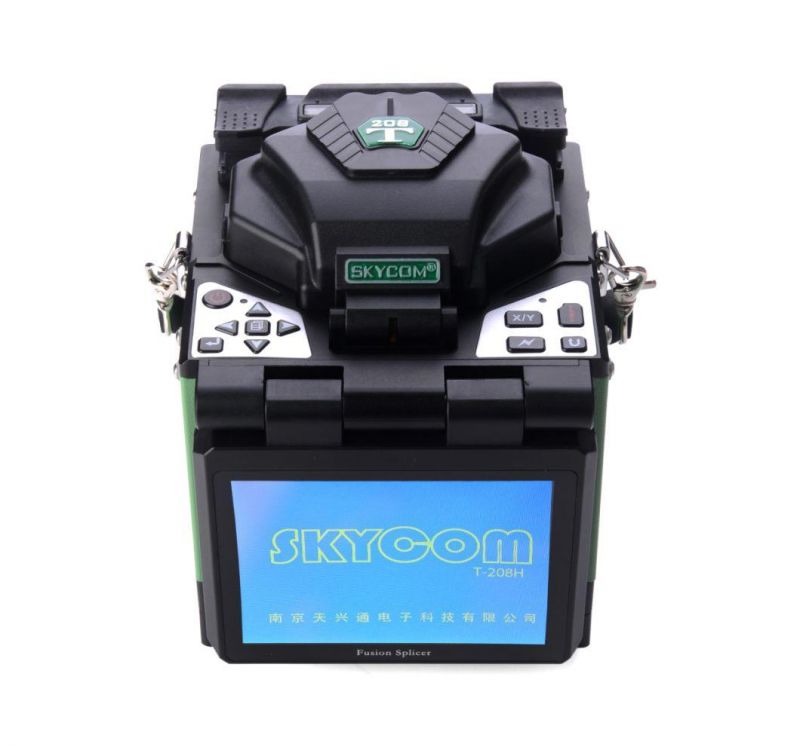

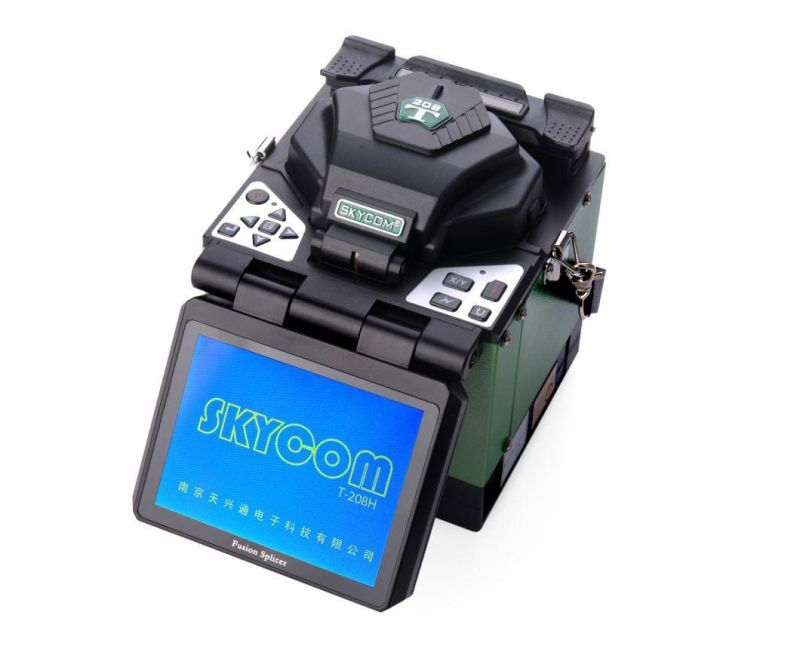

CE SGS Approved Fiber Optic Fusion Splicer (Skycom T-208H)
Nanjing Tianxingtong Electronic Technology Co., Ltd.- Type：Fiber Splicer
- Certification：CE, ISO
- Customized：Customized
- Condition：New
- Feature：Moistureproof
- Applicable Fibers：Sm, Mm, Nz-Ds, Edf, Pigtail, Rubber-Insulated Wire
Base Info
- Model NO.：T-208H
- Average Splice Loss：0.02db(Sm), 0.01db(Mm), 0.04db(Nzds), 0.04db(Edf)
- Return Loss：>60db
- Protection Sleeve Length：20mm, 40mm, 60mm
- Language：Chinese, English
- Tension Test：2.0n 200gf Standard
- Monitor：5 Inches Colorful LCD Display
- Fiber Image Magnification：X and Y Views with 200 Times
- Dimension：155mm(W) *165mm( D) * 150mm(H)
- Weight：2.5kg
- Transport Package：Export-Standard Carton Box with PE Foam Inside
- Specification：CE, SGS, CSI, ISO9000
- Trademark：Skycom , OEM
- Origin：Nanjing, China
- HS Code：8515800090
- Production Capacity：500PCS, Month
Description
Discription
> Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
> Skycom T-108H is multipurpose fiber optic splicing machine which is applicable for single bare fiber and rubber-insulated cable.
> Our company have developed fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. Skycom T-108H is our most popular and widely recognized product. It has successfully passed CE. SGS, ISO 9001 tests.
Key Features
> 5 inches high resolution colorful LCD display
> Average splice time: 10 seconds
> Average tube-heat time: 30 seconds
> Lithium battery: up to 300 times of continuous splice and heat
> Simultaneous X and Y views with 200 times magnification
> New developed technology providing wind and dust resistance
> Splicing mode: Auto & Manual & Full Automation
> USB Port
> Storing 6,000 groups of splice results
> Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, cable, fiber optic patch cord, bare fiber)
Package:
> If no special request, we will use standard carton packing with easy to carry case. We will use safety foam in the carrying case to protect products, in order to avoid any damage in delivery.
> Custom-made Professional tool kit(case) with anti-shock sponge inside + Export-standard Carton Box with PE Foam inside.
Applications:
> Telecom, Unicom, Mobile CATV, Power, Railway, Petro-chemical, Troop, Coal, College, Science & Research Agency, etc.
Delivery & Shipping:
> Leading Date: Within 3 to 5 working days for small orders after deposit received, kindly negotiation for bulk order.
> Shipment: By DHL, FedEx, TNT, EMS & UPS, directly delivery to your hands.
Warranty & Service:
> After-sales Service:
> We guarantee all our electrical and mechanical parts for one year from the delivery date the machine running smooth in customer's place.
> We guarantee that each product is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
> We are responsible for the whole lifespan of our products, and whenever you have questions during use, just call us, we are glad to offer technical support timely.
> Life-long Maintenance Service:
> During the warranty period, we can repair or replace the defective parts for free.
> After the warranty time, we also repair the defective parts, but only charge part cost.
> Shipping Damage Management:
> When you receive the package, please open and check it before signing, if it's damaged, ask a "Damage proof" from the delivery company.
