Cable & Wire

Cat6e Uutp Bulk Network Cable

Hangzhou Risun Cable Co., Ltd.
  • Application:Local Communication Cable, LAN Cable, Network Cable
  • Conductor Material:BC,CCS,CCA,TC,CU,CCAG
  • Cover Material:PVC,PE,LSZH
  • Type:Cat 6
  • Material Shape:Round Wire
  • Conductor Type:Solid

Base Info

  • Model NO.:Network Cable
  • Wire Core Material:Bare Copper Wire
  • Certification:CE, ISO, RoHS, CCC, ETL,CPR
  • Model:Cat6e Uutp Bulk Network Cable
  • Brand:Risun or OEM
  • Insulation:HDPE
  • UV:Available
  • Frame Returdant:Available
  • Jelly:Available
  • Transport Package:305m,Pull Box, 2box,Carton
  • Origin:Hangzhou, Zhejiang, China
  • HS Code:8544491100
  • Production Capacity:20000 Boxes , Month

Description

Basic Info.

Model NO. Network Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model Cat6e Uutp Bulk Network Cable Brand Risun or OEM Insulation HDPE UV Available Frame Returdant Available Jelly Available Transport Package 305m/Pull Box, 2box/Carton Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

 Cat6e  UUTP Bulk Network Cable

In most cases, Cat6 cable is used for connecting a computer to another device like a hub, router or switch in order to allow the sharing of files across a network or for accessing the Internet.
It can also be used for connecting computers to other devices together such as printers or scanners, or for incoming and outgoing LAN connections on patch panels.

construction:
conductor23awg (solid or strand) cu/cca/ccs
insulationHDPE 1.04±0.02mm
sheath6.2±0.1mm PVC (Fr,ROHs,UV)/LSOH / PE
cores/pairs8/4

mechanical properties:
elongationmin. 300%
temperature range-20 up to +75° c
tensile strengthmin 1.68kg/mm²

electrical properties:
resistancemax. 9.38 ohm/100m
resistance unbalancemax. 2%
insulation resistance150 ohm/km
mutual capacitancemax. 5600pf/100m
capacitance unbalancemax. 330pf/100m
impedance100+/-15 ohm
spark test2000v
velocity of propagation67%

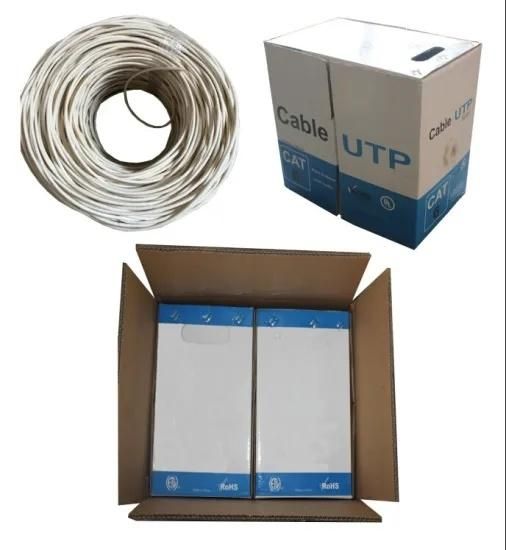

Packing

1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.


Cat6e Uutp Bulk Network CableCat6e Uutp Bulk Network Cable


company profileRisun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and  telephone cable in china. 95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.In the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.

We are committed to providing you with high-quality and competitive products.We will be your trusted partner.Cat6e Uutp Bulk Network Cable

process of production: Cat6e Uutp Bulk Network Cable
