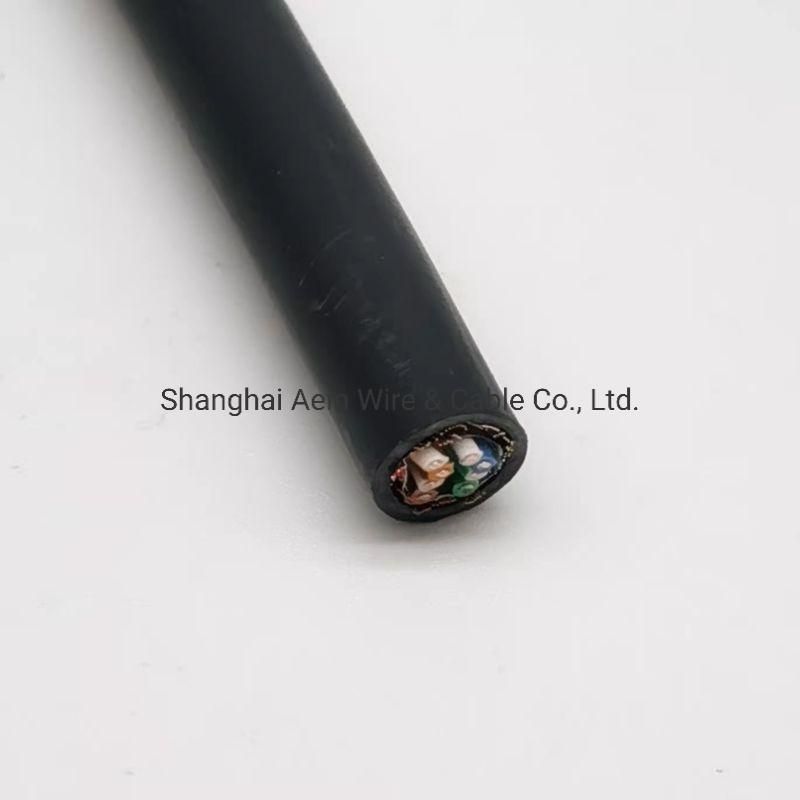

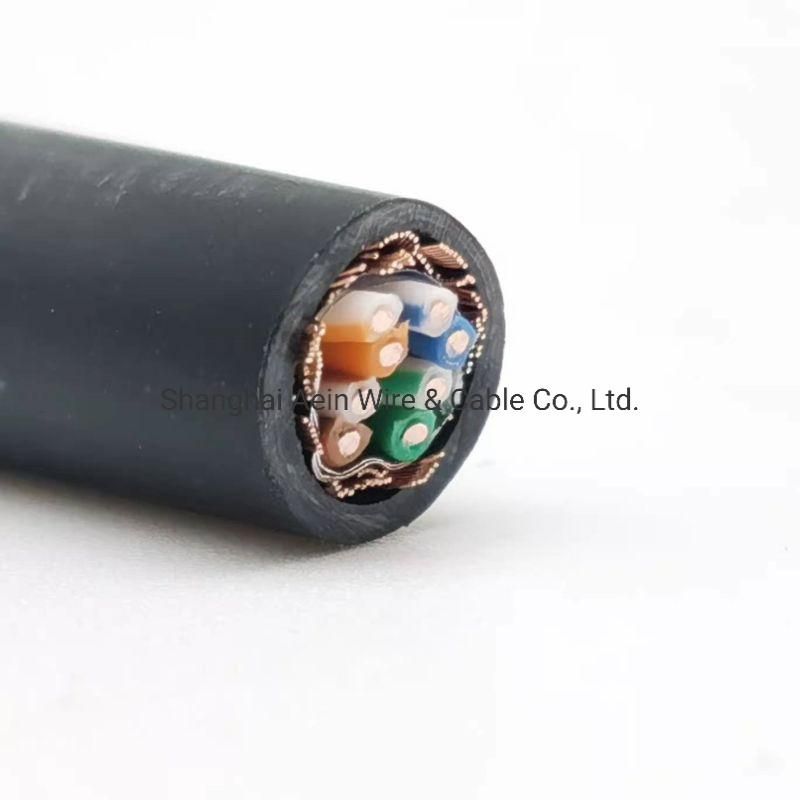

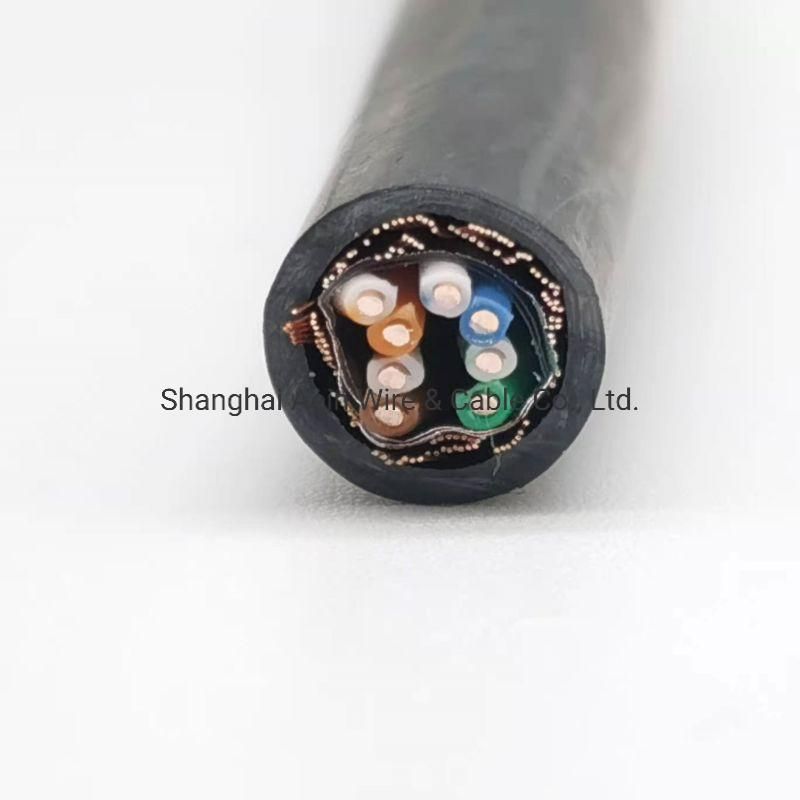

PUR Torsion Cable Rt 123 D with Overall Copper Screen for Car Manufacturing Industry

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PUR
  • Insulation Material：TPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：RT 123 D Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemPUR Torsion Cable RT 123 D with Overall Copper Screen for Car Manufacturing IndustryConductor

0,14 mm² - 0,34 mm²: bare copper strands, extra fine wires

from 0,50 mm²: bare copper strands

InsulationTPEStrandingSpecially adjusted layering with netting tape over each layer and one additional non-woven tape over the outer layerScreenWrapped with bare copper wiresWrappingNon-woven tapeOuter sheathPURCore numberMulticores (As client's requirement)Peak operating voltage0,14 mm² - 0,34 mm²: max. 350 VNominal voltagefrom 0,50mm²: Uo/U 300/500 VTesting voltage

0,14 mm² - 0,34 mm²: core/core 1500 V

from 0,50mm²: core/core 3000V

Torsion angleup to +/-450°/0,5 mMin. bending radius fixed

continuously flexible: 12 x d

from 34 cores: 20 x d

Radiation resistance5 x 10^7 cJ/kgTemperature range

DIN VDE fixed laying: -50/+90 °C

DIN VDE flexible application: -40/+90 °C

Application

RT 123 D is a PUR torsion cable with overall copper screen and a torsion angle up to +/- 450° over 0.5 m. It is recommended for use in packaging, wood working, textile, welding and cutting machine construction, car manufacturing industry, industrial robot construction, electrical drive, control, and measurement technology, construction of industrial plants and machine tooling construction. Also suitable for applications on robots!
