Rt 113 D PVC Torsion Cable for Electrical Drive Control and Measurement Technology

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：RT 113 D Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemRT 113 D PVC torsion cable for Electrical Drive Control and Measurement TechnologyConductor

0,14 mm² - 0,34 mm²: bare copper strands, extra fine wires

from 0,50 mm²: bare copper strands

InsulationPVCStrandingSpecially adjusted layering with netting tape over each layer and one additional non-woven tape over the outer layerScreenWrapped with bare copper wiresWrappingNon-woven tapeOuter sheathPVCCore numberMulticores (As client's requirement)Peak operating voltagemax. 350 VNominal voltagefrom 0,50mm²: Uo/U 300/500 VTesting voltage

Core/core 1500V

Core/screen 1200 V

Torsion angleup to +/-270°/0,5 mMin. bending radius fixed

continuously flexible: 12 x d

from 34 cores: 20 x d

Temperature range

DIN VDE fixed laying: -40/+70 °C

DIN VDE flexible application: +5/+70 °C

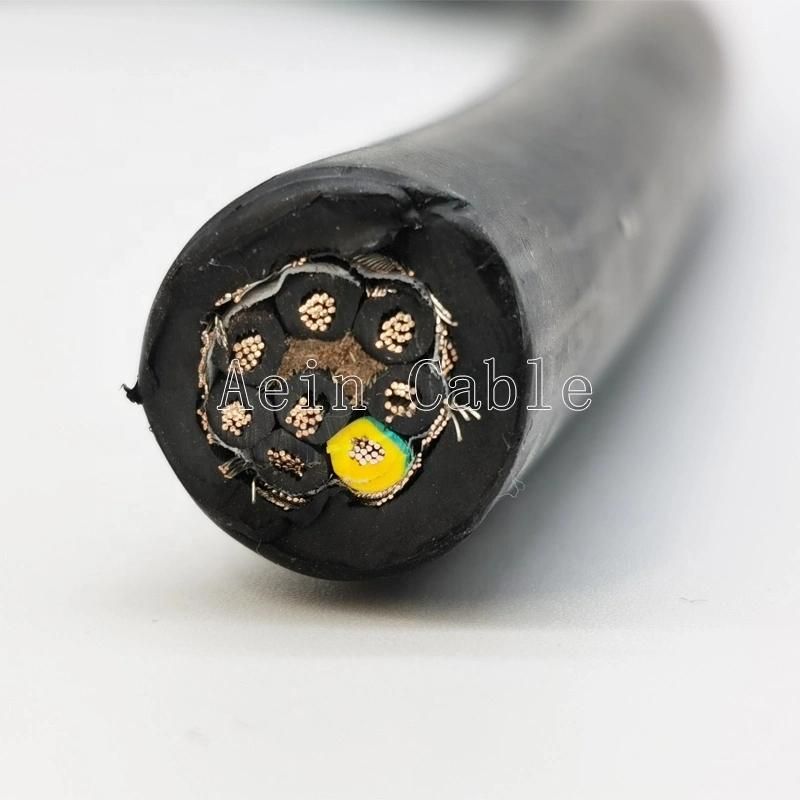

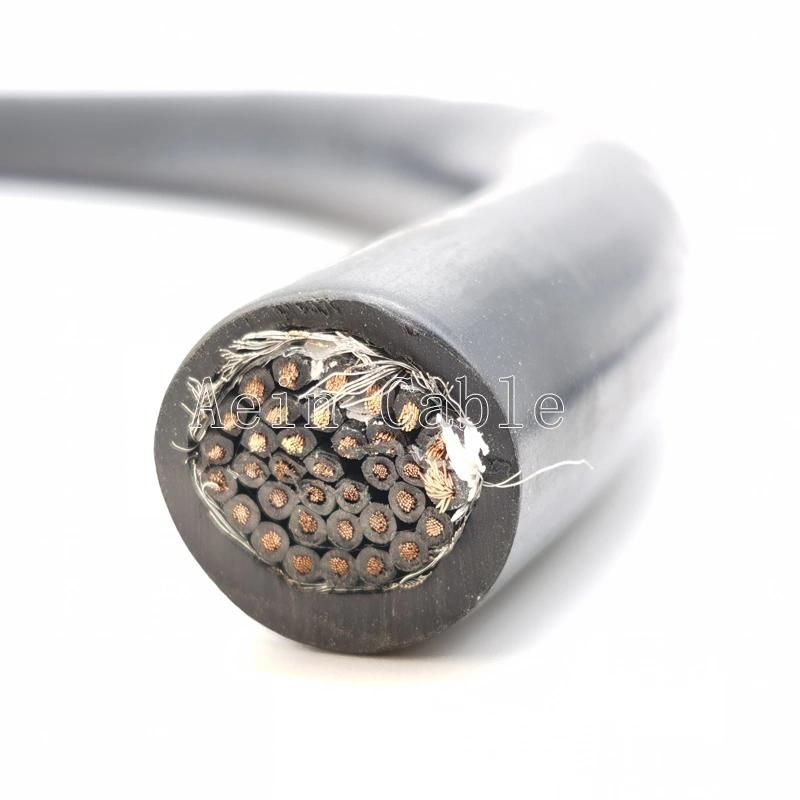

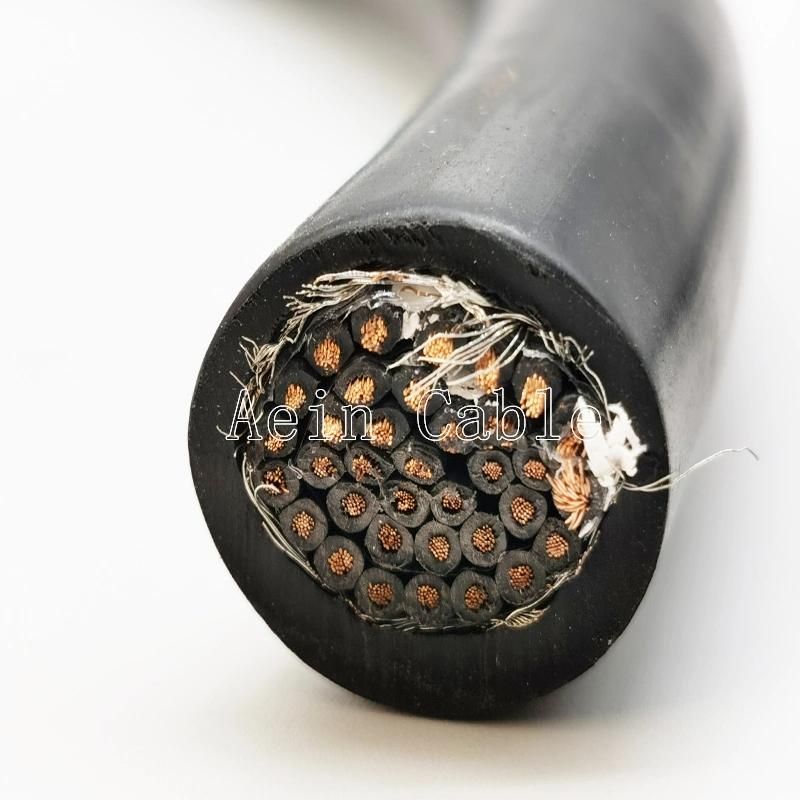

ApplicationRT 113 D is a PVC torsion cable with overall copper screen and  a torsion angle up to +/- 270° over 0.5 m. It is recommended for use in packaging, wood working, textile, welding and cutting machine construction, car manufacturing industry, industrial robot construction, electrical drive, control, and measurement technology, construction of industrial plants and machine tooling construction.
Also suitable for applications on robots!
