High Quality Cat5e LAN Cable with Messenger Double Jacket
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC,PE,LSZH
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：FTP Cat5e
- Wire Core Material：Tinned Wire
- Certification：CE, ISO, RoHS, ETL SGS CPR
- Model：FTP Cat5e
- Brand：Risun or OEM
- Cores：8
- Transport Package：305m,Wooden Reel,CTN
- Specification：ETL, CE, ROHS, ISO9001
- Trademark：RISUN or OEM
- Origin：Hangzhou, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
ConstructionConductor 24AWG (Solid or Strand) CU/CCA/CCS Insulation HDPE 0.90±0.03mm Cores/Pairs 8/4 Drain Wire 26AWG Tinned Copper Shield Polyester Tape/ Al Foil Sheath 5.20±0.1mm PVC (FR,RoHS,UV)/ LSOH / PE Elongation Min. 300% Temperature Range -20 up to +75°C Tensile strength Min. 1.68Kg/mm2 Conductor Resistance Max. 9.38 ohm/100m Resistance Unbalance Max. 2% Insulation Resistance 150 ohm/KM Mutual Capacitance Max. 5600pF/100m Cpacitance Unbalance Max. 330pF/100m Impendance 100±15 ohm Spark Test 2000V Velocity Propagation 67%
Attenuation RL Next PS Next (MHz) (db/100m) (db) (db) (db/100m) 1MHz 2.0 20 65.3 63.5 4MHz 4.1 23 56.3 54.2 8MHz 5.8 24.5 52.4 50.5 10MHz 6.6 25 51.3 49.2 16MHz 8.2 25 49.3 47.4 20MHz 9.3 25 48.8 46.9 25MHz 10.4 24 45.3 43.4 31.25MHz 11.7 23 43.0 41.8 62.5MHz 17.0 21 39.2 37.2 100MHz 22.0 20 36.3 34.4 155MHz 28.1 19 35.5 33.6 200MHz 32.4 19 31.8 29.9 240MHz 36.0 18 30.6 28.7 300MHz 41.0 18 29.2 27 350MHz 44.9 17 28.0 25.6

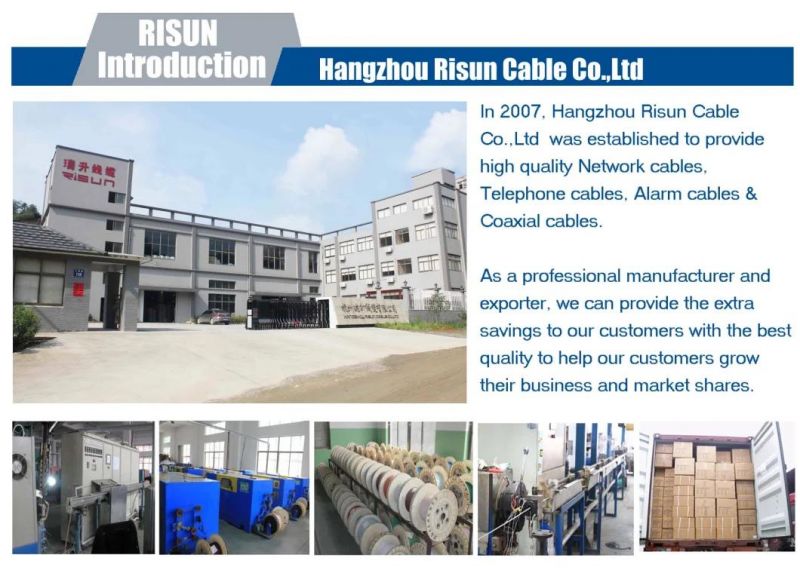

Risun Introduction
Ordering directly from a manufacturer like us will greatly reduce your costs and makes your products more competitive in your marked.

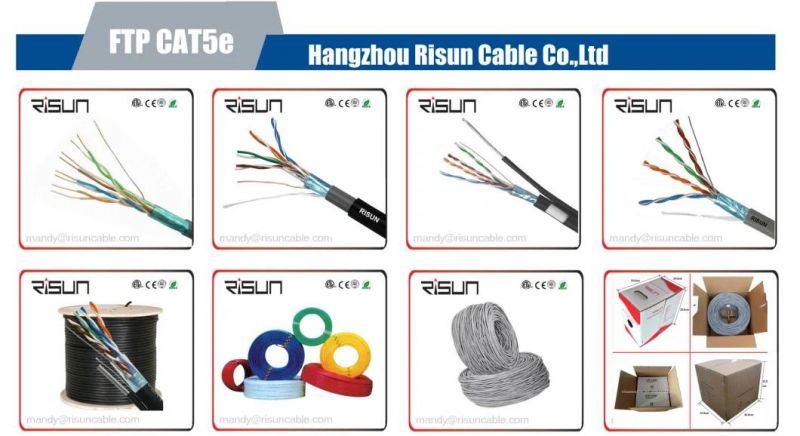

Product photos
Application & Certification
Quality Comes from the specialize, habit becomes second nature!
Welcomes to contact us for more details!
