Fluke Tested UTP CAT6 Network Cable with CPR Approved

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：UTP Cat6
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, UL, ETL SGS CPR
  • Brand：Risun or OEM
  • 23AWG：305m
  • Patch Cord：Network Cable
  • Transport Package：305m,Pull Box, 2boxes,CTN.
  • Specification：ETL, CE, RoHS, SGS, ISO9001
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, Zhejiang, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10 MPa



Electrical Properties:

Conductor Resistance≤7.5 Ω/100mResistance Unbalance≤ 2%Insulation Resistance≥5000 MΩ·KMImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%



Technical Performance:

   Frequency         Attenuation        RL    Next       PS Next       (MHz)          (≤dB/100m)       (≥dB)     (≥dB)          (≥dB)           4               3.8       23.0     66.3         63.3           8               5.3       24.5     61.8         58.8         10               6.0       25.0     60.3         57.3         16               7.6       25.0     57.2         54.2         20               8.5       25.0     55.8         52.8         25               9.5       24.3     54.3         51.3       31.25              10.7       23.6     52.9         49.9        62.5              15.4       21.5     48.4         45.4        100              19.8       20.1     45.3         42.3        200               29.0       18.0     40.8          37.8        250               32.8       17.3     39.3          36.3


Fluke Tested UTP CAT6 Network Cable with CPR Approved
RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.


Fluke Tested UTP CAT6 Network Cable with CPR Approved




Fluke Tested UTP CAT6 Network Cable with CPR Approved


WELCOME TO RISUN

 Our Tenet: If we can not be the best, we be the most suitable.



Hangzhou Risun Cable Co., Ltd specializes in manufacturing lan cable, network cable, alarm cable and telephone cable.

1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are RISUN or OEM;
3. Payment: We accept T/T and L/C;

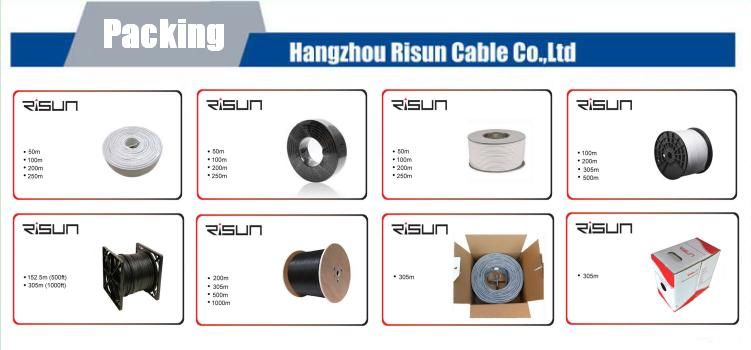

4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Other packing available according to client's request.
5. Any question, please contact us without hesitation. We'll reply as soon as we can.
