• Model NO.：XHHW PVC CABLE
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC, SGS
• Brand：Hongda
• Class of Conductor：5 or 2
• Rated Voltage：450,750 V
• Manufacture Standard：IEC 60227
• Transport Package：100m Per Roll, 100FT Per Roll
• Specification：0.75mm to 6mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492900
• Production Capacity：40km,Day

Basic Info.

Model NO. XHHW PVC CABLE Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC, SGS Brand Hongda Class of Conductor 5 or 2 Rated Voltage 450/750 V Manufacture Standard IEC 60227 Transport Package 100m Per Roll, 100FT Per Roll Specification 0.75mm to 6mm2 Trademark Hongda Origin China HS Code 8544492900 Production Capacity 40km/Day

Product Description

 4AWG 2AWG 1/0AWG XHHW PVC  4-core Type TC Power Cable

Application

XHHW/PVC, type TC Power Cable is used to supply power to motors, or for connection to other power devices in industrial settings. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Type TC Power Cable is listed for direct burial and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. This cable may be used in wet and dry locations at temperatures not to exceed 90°C.

Compliances

• ICEA S-58-679 Method
• ICEA T-29-520 - Vertical Cable Tray Flame Test
• IEEE 383 (IEEE 1202/FT4) - Flame Test
• ICEA S-95-658 (NEMA WC 70) construction requirements

Specifications

1.Certificate: CE,ISO,CCC
2.Standard: IEC60227  IEC60502
3.High quality

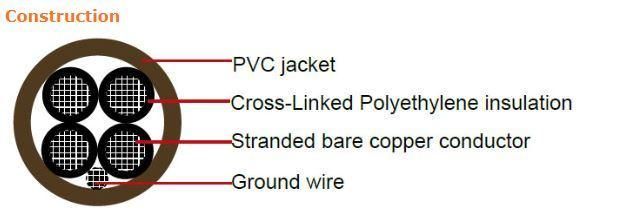

Conductor	Stranded bare annealed copper (Type XHHW-2)
Insulation	Flame-retardant and moisture resistant Cross-Linked Polyethylene (FRXLPE)
Ground Wire	Bare annealed copper (Type XHHW-2)
Jacket	Flame retardant, moisture and sunlight resistant PVC (LSOH is available upon request)
Color	Upon request, black is preferable

Parameters

AWG or kcmil	Strand	Ground Wire Size	Nominal jacketThickness	Nominal Overall Diameter	Cable Weight
AWG	Inch/mm	Inch/mm	Lbs/kft	kg/km
8	7	10	0.060	1.52	0.747	18.97	404	601
6	7	8	0.080	2.03	0.882	22.40	613	912
4	7	8	0.080	2.03	0.917	23.29	802	1193
2	7	6	0.080	2.03	1.054	26.77	1191	1772
1	19	6	0.080	2.03	1.21	30.73	1503	2236
1/0	19	6	0.080	2.03	1.307	33.20	1806	2688
2/0	19	6	0.080	2.03	1.411	35.84	2199	3272
3/0	19	4	0.080	2.03	1.529	38.84	2744	4084
4/0	19	4	0.110	2.79	1.729	43.92	3449	5132
250	37	4	0.110	2.79	1.888	47.96	4030	5996
350	37	3	0.110	2.79	2.137	54.28	5453	8114
500	37	2	0.110	2.79	2.448	62.18	7562	11252

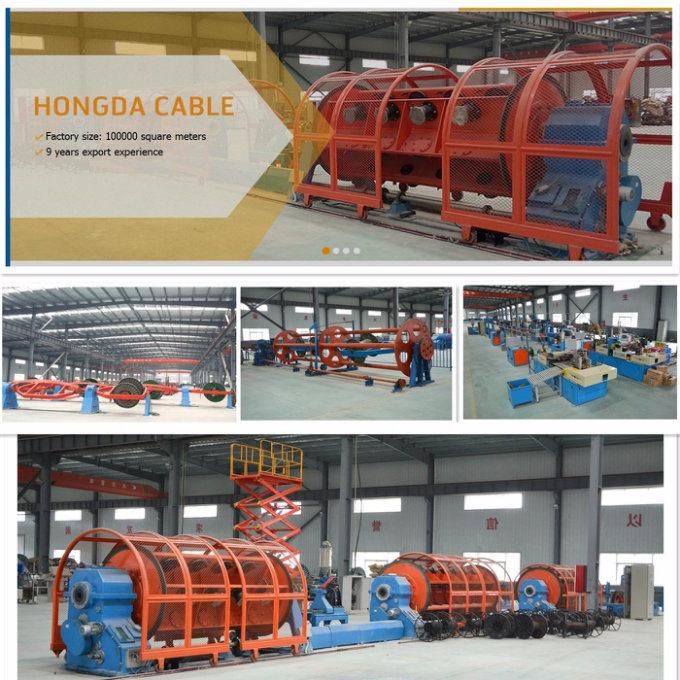

Factory information:

Hongda cable Co., Ltd. is one of the most professional cable & wire producer, which was founded in 1988, have exported for 9 years, integrating scientific research, development, production and sales. Henan Hongda Cable Co., is the original Zhengzhou Hongda Cable Co.,  The company mainly produces 1-35 kV power cable, TW, THW, THHW, THHN electrical wire, ABC cable, Overhead Cable, AAC, AAAC, ACSR, ACAR bare conductor, Concentric Cable, etc

Our advantages
1.  With more than 17 years manufacturing experience, our products are strictly in accordance with ISO, SGS, CCC ;
2.  Good cost-control system, with highly-competitive prices;
3.  Strong and Professional R&D team to meet your specific needs;
4.  Fast delivery&reliable products are always the reason why you choose us.
Custom Merchandise: we can make cable as your need include the color ,size and so on.we also offer OEM

Packing:


*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

We are looking forward to your inquiry and nice cooperation.
