Hot Sale ASTM ACSR Quail Conductor

YIFANG ELECTRIC GROUP INC.

Type：Bare
Conductor Type：Stranded
Application：Overhead
Conductor Material：Aluminum
Sheath Material：N,a
Insulation Material：N,a

Base Info

Model NO.：acsr
Material Shape：Round Wire
Range of Application：Power Transmission
Certification：ISO9001, CE, UL, CCC
Brand：Yifang
Certificate：ISO;Ce;UL;Kema
Transport Package：Wood Packing by Sea
Specification：1000meter per drum
Trademark：Yifang
Origin：China
HS Code：7614900000
Production Capacity：300km Per Month

Description

AluminumSteelTotalAluminum Steel AluminumSteelTotal.AWG or MCMmm2mm2mm2No.mmNo.mmmmkg/kmkg/kmkg/kmdaNΩ/kmQuail2/067.42 11.23 78.65 6 3.78 13.78 11.34 185.0 88.0 273.0 23620.42550

^{Applications:}
^{Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.}

^Standards:
^{1.ASTM B232 Standard, refer to the following specification}
^{B 230 Aluminum Wire1350-H 19 for Electrical Purpose}
^{B 231 Aluminum Conductor, Concentric-lay-stranded}
^{B 232 Aluminum Conductor, Concentric-lay-stranded, Coated Steel Reinforced (ACSR)}
^{B 341 Aluminum Coated Steel Core Wire for Aluminum Conductor Steel Reinforced(ACSR/AW)}
^{B 498 Zinc-coated Steel Core Wire for Aluminum Conductor Steel Reinforced (ACSR/AZ)}
^{B 500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductor Steel}
^{Reinforced (ACSR)}
^{2. CSA C 49 Standard}
^{3. BS 215 Part 2 Standard}
^{4. DIN 48204 Standard}
^{5. IEC 61089 Standard}
^{6. Other International Standard
7.Code name-BS stand: acsr moose, acsr dog, acsr rabbit, acsr lynx, acsr raccon, acsr panther, acsr zebra, acsr weasel, acsr wolf, acsr coyote, acsr squirrel, acsr mink.}

^{Construction:}
^{1. Conductor: Hard-Drawn 1350-H19 Aluminum Wires, Minimum Purity 99.45%,}
^{2. Reinforcement: Galvanized Steel Wires (Zinc-Coated)}
^{3. Best Seller: Turkey, Sparrow, Raven, Penguin, Waxwing, Dove, Rail, Pheasant, Martin}

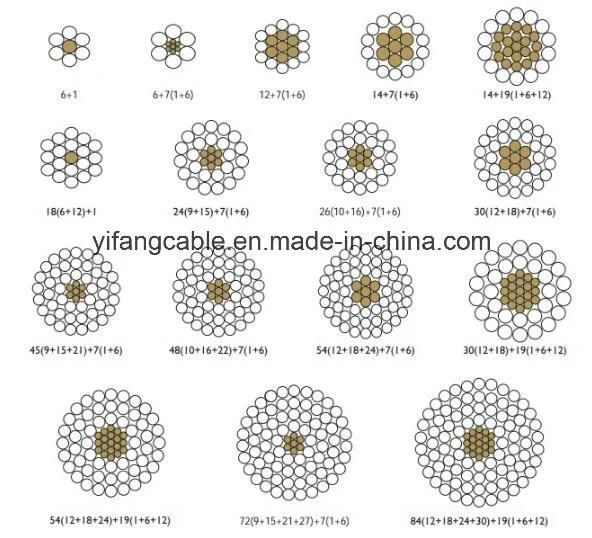

^{4. Construction (Aluminum/Steel): 6/1, 7/1, 8/1, 12/7, 16/19, 24/7, 26/7, 30/7, 30/19, 36/1, 45/7, 54/7, 30/19, 72/7, 76/19, 84/196. Cross-Sectional Area: 6~4/0 awg, 80~2312 mcm (80~211.3 mcm for Standard High-Strength Conductor),}
^{7. Galvanization: Class A, B or C}
^{8. Grease Corrosion Protection: Available upon Request}

Hot Sale ASTM ACSR Quail Conductor

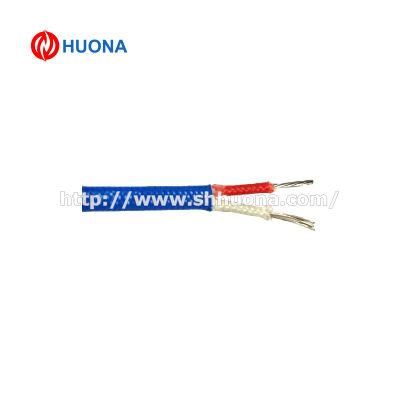

Pre：K / J Type Thermocouple Wire with Connector
