• Model NO.：KX
• Material Shape：Round Wire
• Range of Application：Compensation
• Certification：ISO9001, CE, RoHS
• Brand：Huona
• Section Area：0.2mm2 , 0.5mm2, 0.75mm2, 1.0mm2
• Grade：I, II, III
• Usage：Thermocouple Sensors
• Types：K,T,J,N,B,S,R
• Shape：Single, Pair, Stranded
• Insulation：Fiberglass, PVC, PTFE, Silicon Rubber
• Temperature Range：-60-1100
• Shield：Avaiable
• Colour：IEC, ANSI, BS
• OEM：Yes
• Sample：Free
• Stock：Seyn
• Transport Package：on Reel, Carton Box
• Specification：According to clients requirements
• Trademark：Huona
• Origin：Shanghai, China
• HS Code：7505220000
• Production Capacity：1000 Tons, Year

Thermocouple Code
Comp. Type
Comp. Wire NamePositive.NegativeNameCodeNameCodeKKCAIron-constantan22IronKPCAConstantan22KNCAKKCBCopper-constantan 40CopperKPCBConstantan 40KNCBKKXChromel10-NiSi3Chromel10KPXNiSi3KNX
GradeNominal Composition /%CuNiCrSiFeMgFe-CuNi22KPCA----100-Cu-Ni 40KPCB6040----Ni-Cr 10KPX-9010---

GradeMeasuring temperature/ºCNominal value/μVClass 1Class 2Tolerance
μVThermal EMF
Range μVTolerance
μVThermal EMF
Range μVKKX,KCA,KCBG-25-968±44-924~-1012±88-880~-105610040964052~41404008~4184KKX
KCAH-25-968±44-924~-1012±88-880~-105610040964052~41404008~418420081388094~81828050~8226

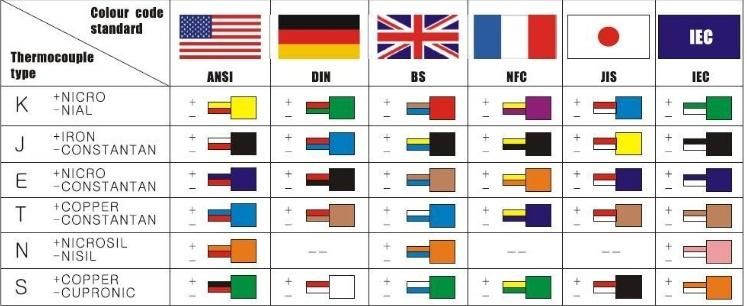

The color code of thermocouple cable



More color code can be tailor-made as per your request.
