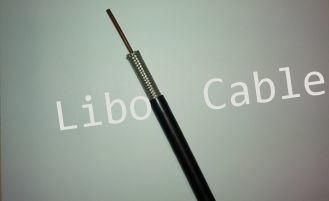

Rg213 Coaxial Cable with PVC Jacket 50 Ohm Cable
ZHEJIANG LIBO INDUSTRIAL CO., LTD.- Application：Local Communication Cable, Coaxial Cable, Fiber Optic Cable, Long Distance Symmetric Cable, RF Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Cat 6
- Material Shape：Hollow Line
- Conductor Type：Stranded
Base Info
- Model NO.：RG213
- Wire Core Material：Steel
- Certification：CE, ISO, RoHS, CCC, UL
- Model：MHYV-xx
- Brand：FUJI
- Date Transmission：Test and Measurement
- Rg213：PVC Jacket
- Transport Package：Plate
- Specification：CE, ROSHS, SGS
- Trademark：Libo cable
- Origin：Zhejiang, China
- HS Code：854420
- Production Capacity：3000kms,Month
Description
construction
Testing item
Unit
Standard
Inner conductor
material
-
13AWG solid copper
diameter
mm
7*0.75 stranded
Dielectric
material
-
Solid PE
diameter
mm
6.5mm+/-0.15mm(0.256 inches)
shield, Braid
Material
-
Bare copper wire
Diameter
mm
0.15
Ends
EA
7
Carrier
EA
24
Pitch
mm
36
Electrical properties
Coverage
%
91%
jacket
PVC
mm
9.5+/-0.18(0.374 inches)
Nominal velocity of propagation
%
66%
Capacitance
pF/M
100
Characteristic impedance(10MZ)
Ω
50 ohms+/-3 ohms
SRL
dB
20
Attenuation
20ºC(max)
50MHZ
dB/100m
4.8
100MHZ
7.20
200MHZ
10.50
400MHZ
15.40
500MHZ
17.60
600MHZ
19.50
800MHZ
24.20
1000MHZ
26.50
