• Model NO.：NYCWY POWER CABLE
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC
• Model：Nycwy
• Brand：Hongda
• Voltage Rating：600,1000V
• Transport Package：Steel & Wooden Drum or Customer Requirement
• Specification：8AWG to 500MCM
• Trademark：Hongda, accept OEM
• Origin：China
• HS Code：8544492100
• Production Capacity：10km,Days

Conductor
- NYCWY-RE cable
- NYCWY-RM cable
- NYCWY-SM cable
10-16 mm² round, solid conductors (re) alt.
10-25 mm², stranded conductor (rm),

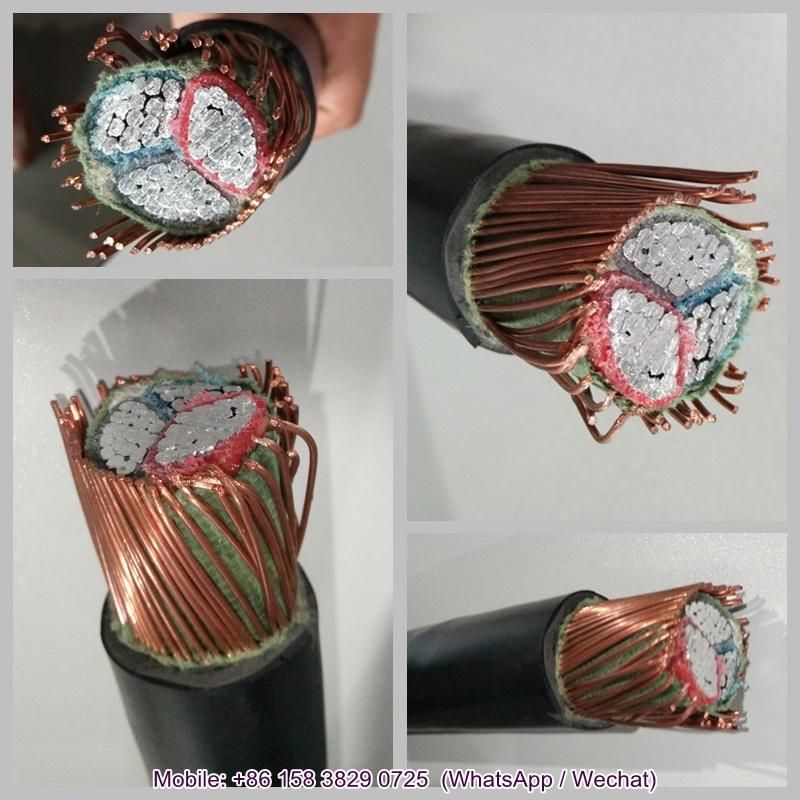

35-240 mm², sector shaped conductor, stranded (sm)InsulationPolyvinyl Chloride (PVC) DIV4BeddingPVCConcentric conductorWaveconal outer conductor (copper wire and counter spiral copper tape)SheathPVCTechnical Characteristics- Working voltage: 600/1000 volts
- Test voltage: 4000 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 12 x Ø
- Flexing temperature: -5º C to +50º C
- Fixed installation temperature: - 40º C to +70º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 100 MΩ x kmThis multi-core cable has an operating temperature range of -5oC to +70oC.

NYCWY CABLE DIMENSIONS:

AWG

NO. OF CORES X

NOMINAL CROSS

SECTIONAL AREA

# X MM²

STRANDED CONDUCTOR TYPE

NOMINAL

OVERALL DIAMETER
MM

NOMINAL COPPER WEIGHT KG/KM

NOMINAL CABLE WEIGHT KG/KM

8

2 x 10.0

re / 10.0

19

312

650

6

2 x 16.0

re / 16.0

21.5

489

850

4

2 x 25.0

rm / 25.0

24.5

763

1210

8

3 x 10.0

re / 10.0

19.5

408

730

6

3 x 16.0

re / 16.0

22

643

1000

4

3 x 25.0

rm / 16.0

26

902

1550

4

3 x 25.0

rm / 25.0

26

1003

1600

2

3 x 35.0

sm / 35.0

27.5

1402

1850

2

3 x 35.0

sm / 16.0

27

1190

1750

1

3 x 50.0

sm / 50.0

29.5

2000

2450

1

3 x 50.0

sm / 25.0

29

1723

2250

2/0

3 x 70.0

sm / 70.0

34

2796

3350

2/0

3 x 70.0

sm / 35.0

33

2410

2950

3/0

3 x 95.0

sm / 95.0

38.5

3791

4550

3/0

3 x 95.0

sm / 50.0

38

3296

4100

4/0

3 x 120.0

sm / 70.0

41

4236

5050

4/0

3 x 120.0

sm / 120.0

42

4786

5550

300mcm

3 x 150.0

sm / 70.0

45

5100

6000

300mcm

3 x 150.0

sm / 150.0

46

5970

6900

350mcm

3 x 185.0

sm / 95.0

50

6383

7550

350mcm

3 x 185.0

sm / 185.0

51

7363

8500

500mcm

3 x 240.0

sm / 120.0

57

8242

9950

8

4 x 10.0

re / 10.0

20.5

504

890

6

4 x 16.0

re / 16.0

23.5

796

1250

4

4 x 25.0

rm / 16.0

28

1142

1800

2

4 x 35.0

sm / 16.0

29

1526

2050

1

4 x 50.0

sm / 25.0

33

2203

2700

2/0

4 x 70.0

sm / 35.0

37

3082

3750

3/0

4 x 95.0

sm / 50.0

43.5

4208

5000

4/0

4 x 120.0

sm / 70.0

47

5388

6350

300mcm

4 x 150.0

sm / 70.0

51

6540

7650

350mcm

4 x 185.0

sm / 95.0

56

8159

9350

500mcm

4 x 240.0

sm / 120.0

62.5

10546

11600

For full technical specifications and other core sizes and cross-sectional area sizes please refer to the datasheets or speak to our technical team for more advice.

NYCWY CABLE SELECTION
Our technical team has vast experience advising on European fixed wiring power supply cables, Please contact us for technical support with NYCWY-RE, NYCWY-RM and NYCWY-SM cable selection, or for information about any other cables forming part of this range, including NYY, NYCY, and N2XY cable.

Other standard and specification can be produce depending on customer require.





PACKAGE AND SHIPPING:
Steel wooden drum (fumigation)
Cable length in each drum: 200m/300m or as per actual cable length requirements.
Drum size: As per cable length and container size

Shipping:
Port: Tianjin, Qingdao, or other ports as per your requireents.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.



*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me Mobile:+86-15838290725, we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
