Yjly23 8.7/10kv 3X240mm Aluminium XLPE Mv Cables Al

Henan Hongda Cable Co., Ltd.
  • Application：Overhead, Underground
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：YJLY23
  • Wire Core Material：Red Copper Wire
  • Certification：ISO, CCC
  • Model：Yjv22
  • Brand：OEM
  • Product Name：Yjly23 8.7,10kv 3X240mm Aluminium XLPE Cable
  • Packaging：Wooden Drum
  • Transport Package：Wooden Drum
  • Specification：300mm
  • Trademark：OEM
  • Origin：China(Mainland)
  • HS Code：8544492100
  • Production Capacity：500 Kilometer,Month

Description

TypeNameMain ApplicationCu CoreAl CoreYJV
YJYYJLV
YJLYXLPE insulated,PVC or PE Sheathed Power CableFor laying indoor,tunnel,channel and undergroud,Unable to bear external mechanical force,but bear the traction force during laidYJV22
YJY22YJLV22
YJLY23XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power CableFor laying indoor,tunnel,channel and undergroud Able to bear external mechanical force,but unable to bear large pulling forceYJV32
YJY32YJLV32
YJLY32XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power CableFor laying in shaft with large difference of level.Able to bear external machanical force and maderate pulling forceYJV42
YJY42YJLV42
YJLY42XLPE Insulated,Thick Steel Wire Armoured,PVC or PE Sheathed Power CableAble to bear positive pressure and pulling force
Note:"ZR-"Include ABC three kinds of flame retardent cables,which are spectively indicated in "ZRA-" or "ZRB-" "ZRC-".For example:"ZRB-YJV","ZRA-YJV22".

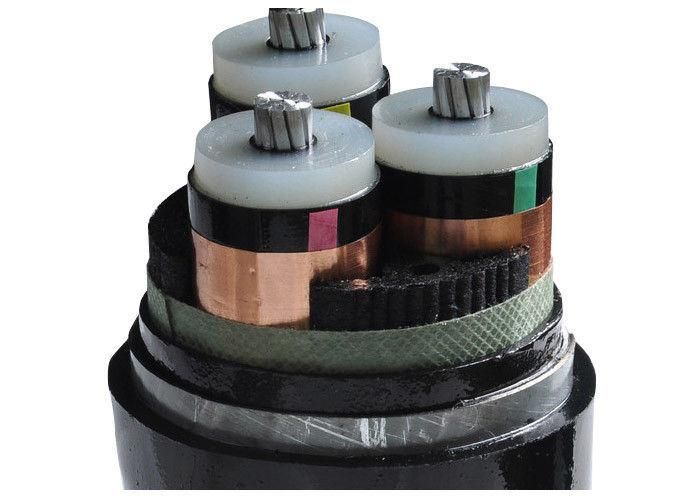

Yjly23 8.7/10kv 3X240mm Aluminium XLPE Mv Cables AlReference Standards:IEC60502-2, IEC 60228, IEC60332 -1/2/3, BS6622, BS7835, VDE0276, AS/NZS 1429.1, GB/T 12706, etc.Rated Voltage:6/10kV, 6.35/11kV (12kV), 8.7/15kV, 12/20kV, 18/30kV,19/33kVCore Number:Single Core or Three Core (1C or 3C)Available Dimensions:25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2.Codes Available:N2XSY, N2XSEY, NA2XSY, NA2XSEY, N2XSRY, NA2XSRY, N2XSEBY, N2XSEYBY, NA2XSEBY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY, N2XS(F)2Y, NA 2XS(F)2Y, N2XS(FL)2Y, N2XSH, N2XSYRYYJV, YJLV, YJSV, YJLSV, YJV72, YJLV72, YJSV72, YJLSV72, YJV22, YJLV22, YJLV23,YJSV22, YJLSV22, YJV32, YJLV32, YJSV32, YJLSV32Application:For power networks, underground, outdoors and in cable ducting. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected during installation.Construction: Conductor:Stranded round compacted copper or aluminum conductor (Cu / Al ), copper wire annealed.Conductor Screen:Semi-conducting materialInsulation:XLPE (Cross-Linked Polyethylene)Insulation Screen:Semi-conducting materialMetallic Screen:Copper tape screen or copper wire screen (CTS / CWS )Filler:PP ropeSeparator:Binding tapeBedding:PVC (Polyvinyl Chloride)Armouring:Single Core: Aluminium Wire Armoured (AWA) Multi-core: Steel Wire Armoured (SWA) or Steel Tape Armoured (STA)Sheath:PVC (Polyvinyl Chloride), flame retardant PVC, PE, LSOH, HFFRColour:Red or BlackTemperature Rating:0°C to 90°CMinimum Bending Radius:Single Core: 15 x overall diameter Three Core: 12 x overall diameter (Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)

Partial Discharge TestTest Voltage__6.210.415.120.831.136.345Discharge Capacity__10101010101010Packing &Shipping

Yjly23 8.7/10kv 3X240mm Aluminium XLPE Mv Cables Al
 Yjly23 8.7/10kv 3X240mm Aluminium XLPE Mv Cables Al
Yjly23 8.7/10kv 3X240mm Aluminium XLPE Mv Cables Al
Why Choose Us ?

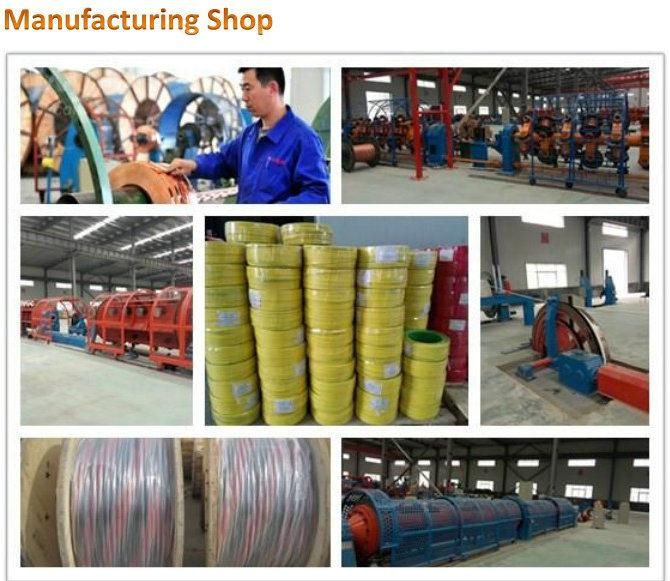

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
Yjly23 8.7/10kv 3X240mm Aluminium XLPE Mv Cables Al
FAQ
Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance,70% T/T balance before shipment

If you have another question, pls feel free to contact us below
