T90 Awm 300V VW-1 18 AWG Single Core PVC Insulated Stranded Copper Electric Housing Wire
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：Nylon
- Insulation Material：PVC
Base Info
- Model NO.：THHN-THWN-THW-TW Nylon Wire
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Color：Black Red Yellow, According to Voltage Level
- Whether It Is Environmentally Friendly：Yes
- Whether Quality Inspection：Provide Inspection Certificate
- Standard：Customized According to Specified National Standar
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Transport Package：Standard Export Packaging
- Specification：International General Specifications
- Trademark：Fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：5000000km,Year
Description
Applications:
General purpose building wire for installation as exposed or concealed wiring and in raceways (except cable troughs) in dry or damp locations.
Approved for use with ceiling fixtures
Features:
Single copper conductor with thin wall PVC insulation and nylon covering.
Rated 600 colts, and FT 1.
CSA Spec C22.2 No. 75-M1983
Building Wire Construction:
Insulation: PVC (Poly Vinyl Chloride) with Secondary Nylon Jacket
Conductor: Annealed solid or stranded copper wires (copper or CCA)
Voltage Rating: 600 Volts.
Standard:
Built to CSA C22.2 No.75
Standard colours are available.
T90 is not sunlight resistant.

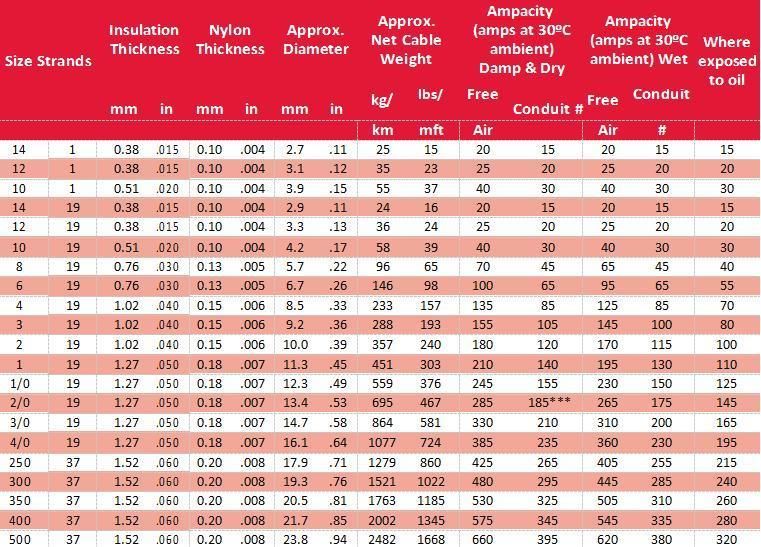

Specification:
