T90 for Canada Market Thhn Copper Conductor Double Insulation Nylon Jacket Single Core Hook up Wire

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Solid
  • Application：Overhead, Underground
  • Conductor Material：Copper
  • Sheath Material：Nylon
  • Insulation Material：PVC

Base Info

  • Model NO.：T90
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, CCC, RoHS, VDE, CSA
  • Brand：Feiya
  • Color：Black Red Yellow, According to Voltage Level
  • Whether It Is Environmentally Friendly：Yes
  • Whether Quality Inspection：Provide Inspection Certificate
  • Standard：Customized According to Specified National Standar
  • OEM/ODM：Accepted
  • Core：Single Core and Multicore
  • Transport Package：Standard Export Packaging
  • Specification：International General Specifications
  • Trademark：Fengda
  • Origin：Tianjin, China(Mainland)
  • HS Code：8544492100
  • Production Capacity：5000000km,Year

Description

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, CSA certified.4ODM&OEM is available.

Applications:

General purpose building wire for installation as exposed or concealed wiring and in raceways (except cable troughs) in dry or damp locations.
Approved for use with ceiling fixtures

Features:
Single copper conductor with thin wall PVC insulation and nylon covering.
Rated 600 colts, and FT 1.
CSA Spec C22.2 No. 75-M1983

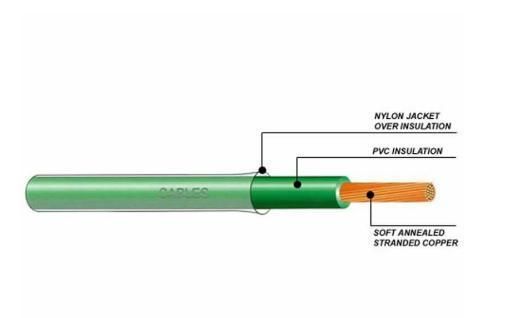

Building Wire Construction:
Insulation: PVC (Poly Vinyl Chloride) with Secondary Nylon Jacket
Conductor: Annealed solid or stranded copper wires (copper or CCA)
Voltage Rating: 600 Volts.

Standard:
Built to CSA C22.2 No.75
Standard colours are available.
T90 is not sunlight resistant.

T90 for Canada Market Thhn Copper Conductor Double Insulation Nylon Jacket Single Core Hook up Wire

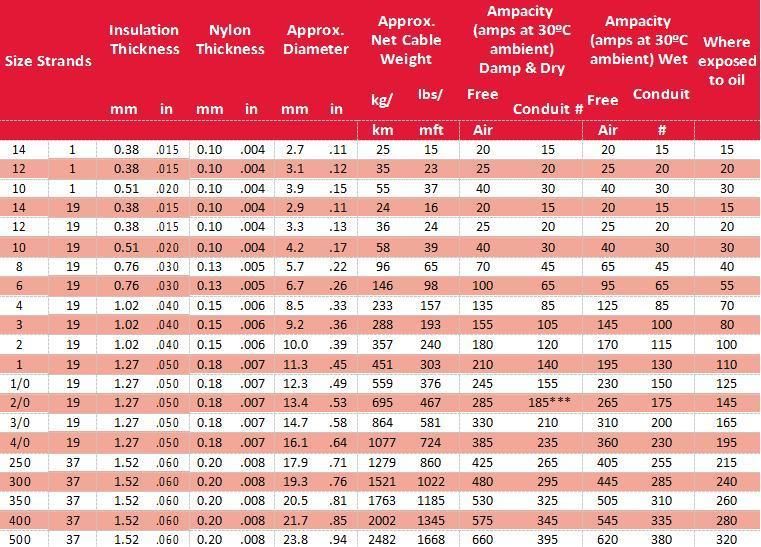

SPECIFICATIONS

T90 for Canada Market Thhn Copper Conductor Double Insulation Nylon Jacket Single Core Hook up Wire
T90 for Canada Market Thhn Copper Conductor Double Insulation Nylon Jacket Single Core Hook up Wire
T90 for Canada Market Thhn Copper Conductor Double Insulation Nylon Jacket Single Core Hook up Wire
T90 for Canada Market Thhn Copper Conductor Double Insulation Nylon Jacket Single Core Hook up Wire
T90 for Canada Market Thhn Copper Conductor Double Insulation Nylon Jacket Single Core Hook up Wire
T90 for Canada Market Thhn Copper Conductor Double Insulation Nylon Jacket Single Core Hook up Wire
T90 for Canada Market Thhn Copper Conductor Double Insulation Nylon Jacket Single Core Hook up WireT90 for Canada Market Thhn Copper Conductor Double Insulation Nylon Jacket Single Core Hook up Wire
