• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, UL
• Model：YJV
• Brand：Yifang
• Transport Package：Wooden Drum
• Origin：China
• Production Capacity：200km,Month

Basic Info.

Wire Core Material Bare Copper Wire Certification ISO, CCC, UL Model YJV Brand Yifang Transport Package Wooden Drum Origin China Production Capacity 200km/Month

Product Description

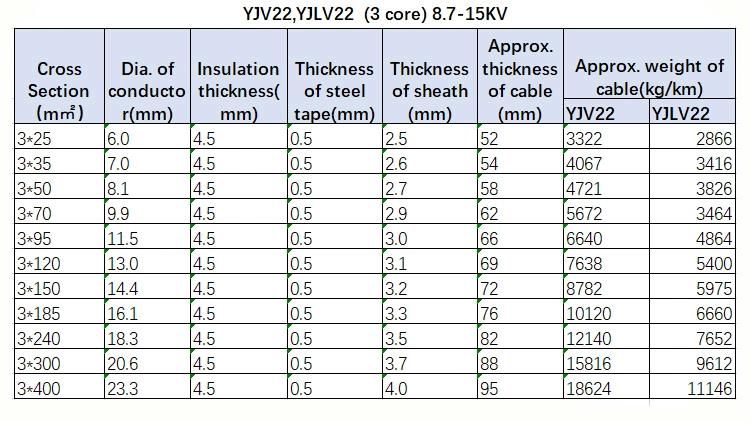

8.7/10kV 3-core copper wire XLPE insulated metallic screen steel wire armored PVC sheathed electrical power cable

1.Manufactured according to the shandard of IEC,BS,DIN or ICEA upon requst.

2.Suitable for use in power transmission and distribution lines with rated power frequency voltage 8.7/ 10 kV~          26/35kV.

3.The ambient temperature for installation: ≥0°C

4.Maximun conductor temperature in normal operation:≤90°C

5.Max operating temperature of conductor when cable short-circuited(5s maximun duration): 250°C

6.Permissible bending radius:

Single cable: [20(D+d)±5%]mm

Multi cable: [15(D+d)±5%]mm

7. Suitable for under ground,can bear mechanical stress,but can not endure large pulling force.





3.About us

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock, hi-tech enterprise established in 2001. We are specialized in wires & cables, including designment, production and sales. Located in Zhengzhou, China, our factory's position is extremely advantageous.



There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.



Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire),flame retardant mining cable, etc



We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
