• Material Shape：Round Wire
• Certification：ISO9001, CE, CCC
• Brand：Yifang
• Voltage：10kv or Below
• Transport Package：Wooden Drum, Steel Drum or Steel-Wooden Drum etc.
• Trademark：Yifang
• Origin：China
• HS Code：8544601200
• Production Capacity：According to The Order Quantity.

Basic Info.

Material Shape Round Wire Certification ISO9001, CE, CCC Brand Yifang Voltage 10kv or Below Transport Package Wooden Drum, Steel Drum or Steel-Wooden Drum etc. Trademark Yifang Origin China HS Code 8544601200 Production Capacity According to The Order Quantity.

Product Description

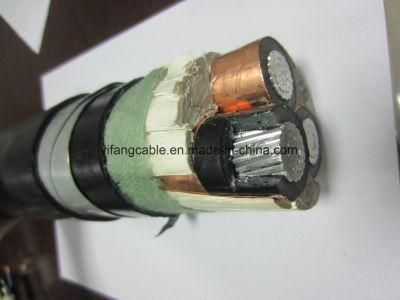

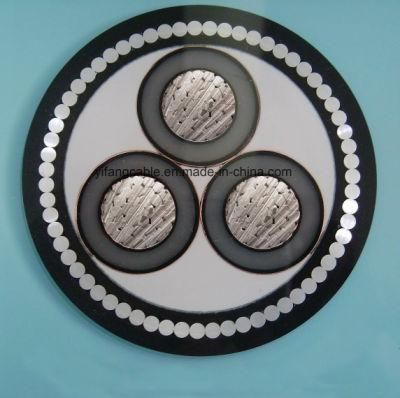

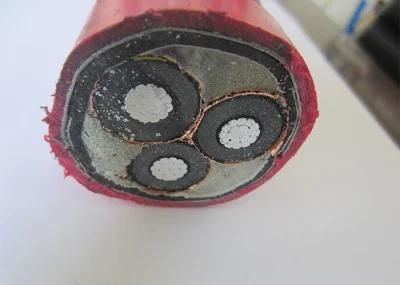

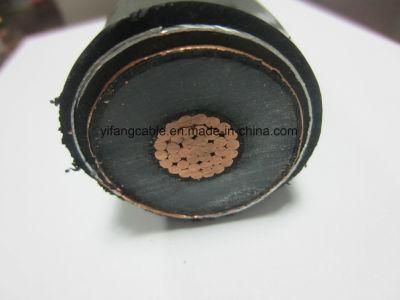

10kV Rubber Insulated Minning Cable

Application: Designed for use as a trailing cable on AC mining equipment.

Manufactured standards: ICEA S 75-381   MT818.1-818.9 GB/T12972

Production Scope:
Nominal Cross-section:1.5-800mm²
Rated Voltage:  10kV or below
Core Number:  1-9core

Construction:
1.9/ 3.3kV below cable structure
Conductor: Strand tinned copper, class5
Insulation: EPR
Core: 3-9(Include ground-check conductor .ground conductor etc.)
Insulation shield (optional): Tinned Copper braid or Semi - conductive shielding tape
Ground-check conductor (optional): Strand tinned copper, class5
Ground-check Insulation: PP EPR
Ground conductor: Bare conductor or insulated of EPR
Inner sheath (optional): CPE
Reinforcement layer (optional): Fiber braid/ Galvanized steel wire
Outer sheath: CPE

1.9/ 3.3kV and 8.7/10kV cable structure
Conductor: Strand tinned copper, class5
Conductor shield: Extruded thermosetting semi-conducting stress control layer over conductor
Insulation: EPR
Insulation shield: Semi - conductive shielding tape
Metal shield: Tinned Copper braid/Bare Copper tape
Core: 3-7(Include ground-check conductor .ground conductor etc.)
Ground-check conductor (optional):  Strand tinned copper, class5
Ground-check Insulation: PP EPR
Ground conductor: Bare conductor
Inner sheath (optional): CPE/CR
Wrap tape: Insulation tape
Outer sheath: CPE/CR

* We can design and produce according to client's requirement.


Factory picture:
