• Wire Core Material：Steel
• Certification：CE, ISO, RoHS, CCC, UL
• Model：Rg11
• Brand：OEM
• 75 Ohm：PVC Jacket
• Messenger：14AWG
• Transport Package：Plate
• Specification：CE, ROSHS, SGS
• Trademark：Libo cable
• Origin：Zhejiang, China
• HS Code：854420
• Production Capacity：12000kms,Month

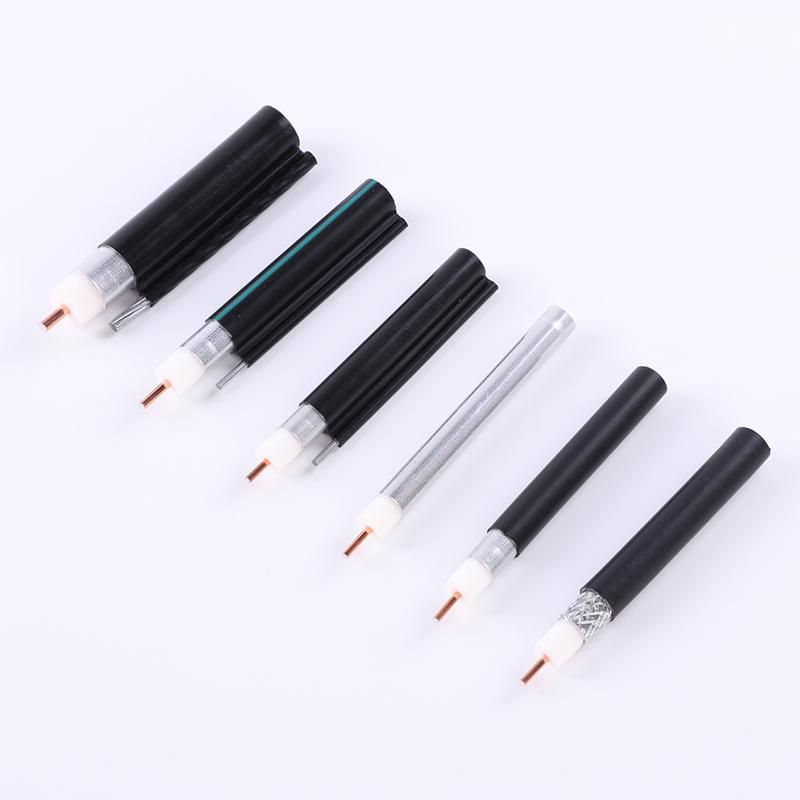

PVC Jacket RG11 Coaxial Cable With Messenger  75 Ohm RG11 CATV Coaxial Cable With 60% Braiding coverage


RG11 cable is for CATV (community antenna television), and MATV (master antenna television) distribution.

Product description:
Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 62% braid, PVC jacket.

Center conductor:
14 AWG copper clad steel
Nominal diameter: 0.064 inches (1.63mm)

Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.280 inches (7.11mm)

Shield:
1st shield: laminated aluminum tape bonded to the dielectric.
Nominal diameter over tape: 0.287inches (7.29mm)
2nd shield: 0.16mm aluminum braiding wire, 62% coverage.


PVC Jacket:
Nominal diameter over jacket: 0.40inches 10.16mm)
Nominal jacket thickness: 0.042inches (1.07mm)

Electrical properties:
Impedance: 75±3 ohms
Velocity of propagation: 85% nominal
Attenuation@ 68OF(20oC):
@Frequency MHZ
dB/100ft. (MAX.)
dB/100 meters(MAX.)
5MHZ
0.38
1.25
55MHZ
0.96
3.15
83MHZ
1.18
3.87
187MHZ
1.75
5.74
211MHZ
1.90
6.23
250MHZ
2.05
6.72
300MHZ
2.25
7.38
350MHZ
2.42
7.94
400MHZ
2.60
8.53
450MHZ
2.75
9.02
500MHZ
2.90
9.51
550MHZ
3.04
9.97
600MHZ
3.18
10.43
750MHZ
3.65
11.97
865MHZ
3.98
13.05
1000MHZ
4.35
14.27
Competitive Advantage:
Outstanding anti-interference effectiveness and excellent transmission reliabilities.

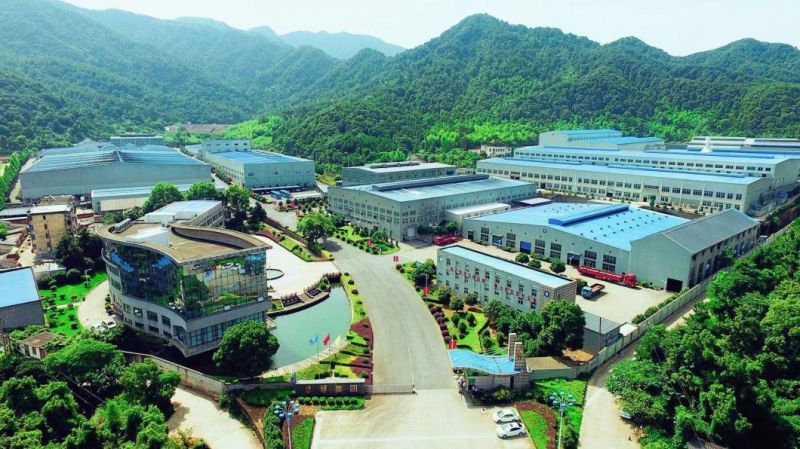

Low cost and it is easy to install.Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable has a stable workforce and engineering team, production procedures and testing meet with ISO9000 and ISO14000 standard.

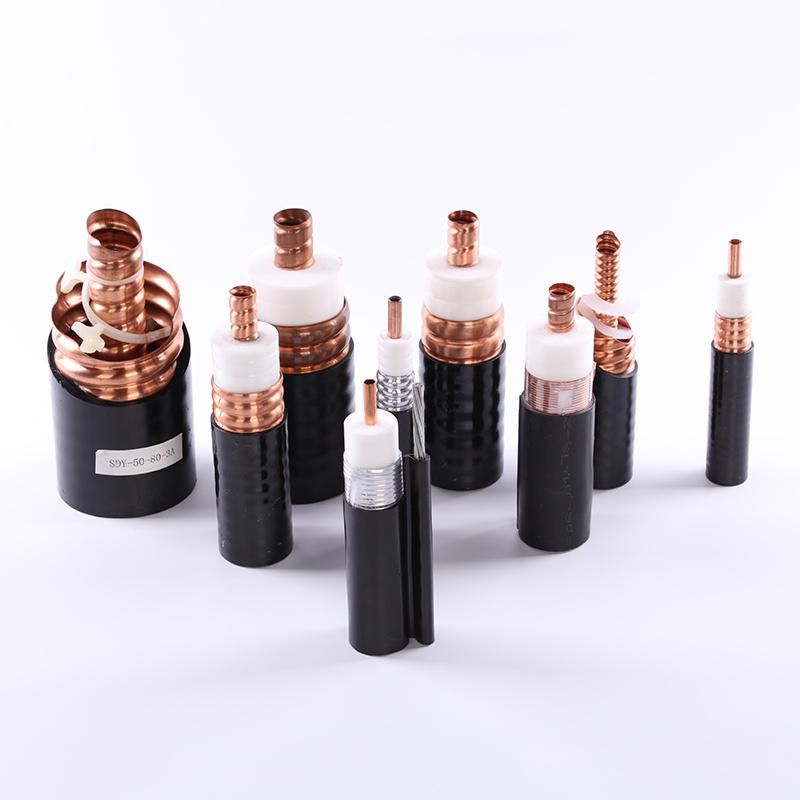

MORE PRODUCTS OF OUR COMPANY:
