PVC Sdi Cable, 450/750 V, 1/C, Australian Cu/V-90/PVC Power Cable (AS/NZS 5000.2)
Jiangsu Boan Cable Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Underground
- Conductor Material:Copper
- Sheath Material:PVC
- Insulation Material:PVC
Base Info
- Model NO.:PVC SDI Cable
- Material Shape:Round Wire
- Range of Application:Distribution
- Certification:ISO9001, CCC
- Brand:Boan
- Rated Voltage:450,750 V
- Size:25-35 mm2
- Class of Conductor:2
- Number of Cores:1

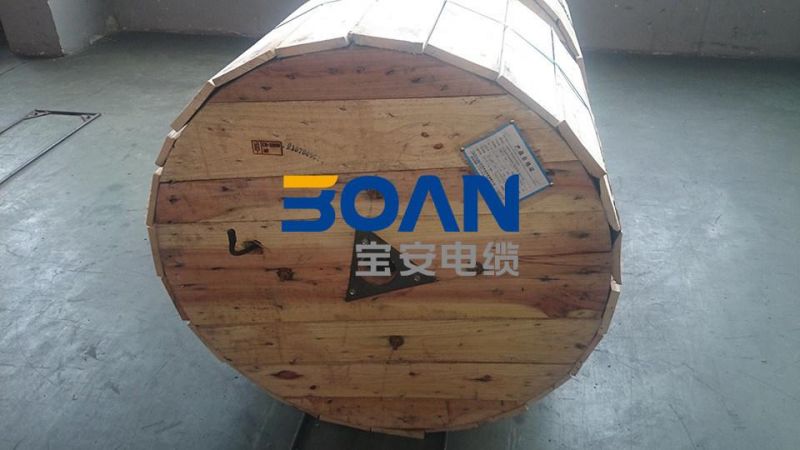

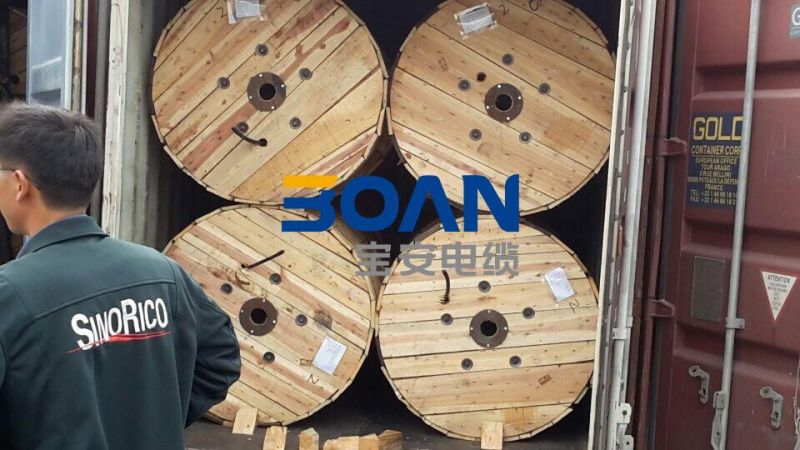

- Transport Package:Fumigated Steel-Wooden Drum,Roll
- Specification:AS,NZS
- Trademark:DingAn or OEM
- Origin:Jiangsu Yixing, China
- HS Code:8544492100
- Production Capacity:38000 km,year
Description
Basic Info.
Model NO. PVC SDI Cable Material Shape Round Wire Range of Application Distribution Certification ISO9001, CCC Brand Boan Rated Voltage 450/750 V Size 25-35 mm2 Class of Conductor 2 Number of Cores 1 Transport Package Fumigated Steel-Wooden Drum/Roll Specification AS/NZS Trademark DingAn or OEM Origin Jiangsu Yixing, China HS Code 8544492100 Production Capacity 38000 km/yearProduct Description
PVC SDI Cable, 450/750 V, 1/C, CU/V-90/PVC Power Cable (AS/NZS 5000.2)General
Single core, V-90 insulated, PVC sheathed to AS/NZS 5000, copper conductors, 90°C.
1.0 to 16mm2 450/750V to AS/NZS 5000.2.
Standard
AS/NZS 5000.2
Structure
Class 2 Strand Copper Conductor
V 90 Insulation
PVC Sheath
Nominal conductor area | Main conductor type | Nominal insulation thickness | Nominal sheath thickness | Nominal overall diameter | Approx.Product mass |
mm2 | mm | mm | mm | kg/100m | |
1.0 | Strand Cu | 0.6 | 0.8 | 4.0 | 2.7 |
1.5 | Strand Cu | 0.6 | 0.8 | 4.4 | 3.2 |
2.5 | Strand Cu | 0.7 | 0.8 | 5.1 | 4.8 |
4 | Strand Cu | 0.8 | 0.9 | 6.0 | 7.1 |
6 | Strand Cu | 0.8 | 0.9 | 6.6 | 9.4 |
10 | Strand Cu | 1.0 | 0.9 | 7.8 | 14.3 |
16 | Strand Cu | 1.0 | 1.0 | 8.9 | 20.8 |
