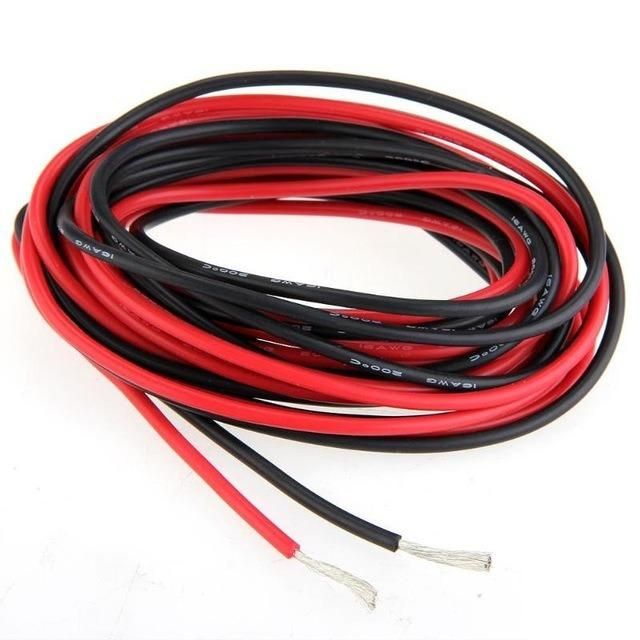

8/10/12/14/16/18/20/22/24/30 AWG Various Colours Flexible Silicone Wire Cable
Henan Hongda Cable Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Heating, Battery Cable
- Conductor Material:Tinned Copper
- Sheath Material:Silicone Insulation
- Insulation Material:Rubber
Base Info
- Model NO.:Silicone Wire
- Material Shape:Round Wire
- Range of Application:Cold-Resistant
- Certification:ISO9001, CCC
- Brand:Hongda Cable
- Insulated:Silicone Insulated
- Temperature:-40 to 200
- Transport Package:100m Per Roll, 500m Per Roll
- Specification:28awg to 2awg
- Trademark:hongda cable or OEM
- Origin:China
- HS Code:8544110000
- Production Capacity:5000km Per Month
Description
Product performance description
- Working temperature between -60 and 200 degrees
- Gauges: 2awg, 4awg, 6awg, 8awg, 10awg, 12awg, 14awg, 16awg, 18awg, 20awg, 22awg, 24awg, 30awg
- Colours: Red, Black

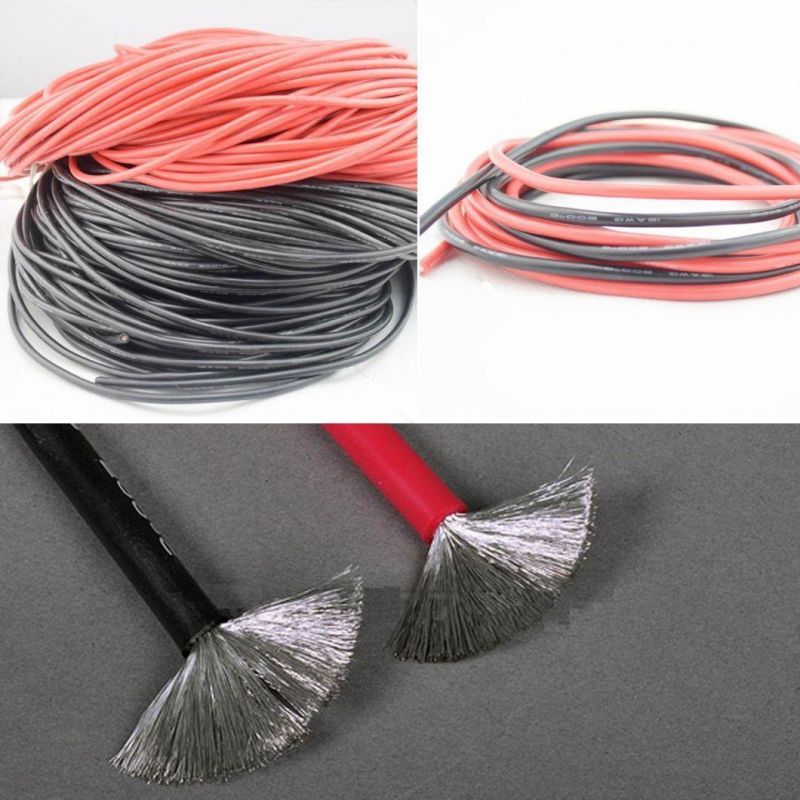

Details Images
Please see example applications for each size wire:
8 AWG - Big Lipo batteries > 5000 mAh. Heavy industrial applications
10 AWG - Big Lipo batteries > 5000 mAh
12 AWG - Biggest size to fit 4mm bullet, Deans, XT60 and Tamiya connectors. Big Lipo batteries > 3000 mAh
14 AWG - Lipo batteries > 2000 mAh. Most common size used on SubC NiMH packs and motors
16 AWG - Regualr Lipo batteries > 1300 mAh. Perfect for Airsoft batteries
18 AWG - Smaller/standard Lipo batteries > 1000 mAh
20 AWG - Largest size wire to fit Mini-T and JST connectors. Perfect for smaller power packs
22 AWG - Perfect for lower power lighting and LED's. Most common size used to fit JST and Futaba connectors. Excellent for use with receiver batteries
24 AWG - Smaller LED lighting applications. Smaller light weight receiver batteries
30 AWG - Slot car motor and lighting wiring
Product Usage
Please see the specifications of flexible wire below:
8 AWG - Max current: 200A. Conductor Area: 8.25 mm. Stranding: #1950/0.08 mm
10 AWG - Max current: 140A. Conductor Area: 5.3 mm. Stranding: #1650/0.08 mm
12 AWG - Max current: 90A. Conductor Area: 3.4 mm. Stranding: #990/0.08 mm
14 AWG - Max current: 60A. Conductor Area: 2.07 mm. Stranding: #680/0.08 mm
16 AWG - Max current: 35A. Conductor Area: 1.27 mm. Stranding: #452/0.08 mm
18 AWG - Max current: 20A. Conductor Area: 0.75 mm. Stranding: #260/0.08 mm
20 AWG - Max current: 12A. Conductor Area: 0.5 mm. Stranding: #185/0.08 mm
22 AWG - Max current: 10A. Conductor Area: 0.33 mm. Stranding: #85/0.08 mm
24 AWG - Max current: 8A. Conductor Area: 0.22 mm. Stranding: #50/0.08 mm
30 AWG - Max current: 6A. Conductor Area: 0.15 mm. Stranding: #18/0.08 mm
Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
