• Model NO.：GYXTW
• Core：Multicore
• Certification：CE
• Brand：Softel
• Sheath Material：PE
• Apply for：Directly Burial
• Fiber Count：2-432cores
• Cable Type：Sm or mm
• Fiber Type：G652D
• Material of Jacket：MDPE,HDPE
• Fiber Optic Cable Tube：Central Loose Tube
• Model Name：Fiber Optic Cable
• Model No.：GYXTW
• Delivery Time：30 Days
• MOQ：2 Drum
• Transport Package：4km Wooden Drum
• Specification：size
• Trademark：SOFTEL
• Origin：China
• HS Code：85176229
• Production Capacity：1000km Per Month

Basic Info.

Model NO. GYXTW Core Multicore Certification CE Brand Softel Sheath Material PE Apply for Directly Burial Fiber Count 2-432cores Cable Type Sm or mm Fiber Type G652D Material of Jacket MDPE/HDPE Fiber Optic Cable Tube Central Loose Tube Model Name Fiber Optic Cable Model No. GYXTW Delivery Time 30 Days MOQ 2 Drum Transport Package 4km Wooden Drum Specification size Trademark SOFTEL Origin China HS Code 85176229 Production Capacity 1000km Per Month

Product Description

Stranded Loose Tube Armored Outdoor GYTY53 Cable For Directly Burial Using

1. Application:

These corrugated steel tape armored and double sheath cables are suitable for installation in harsh environments where mechanical impact on the cable to be expected, e. G. Direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected.

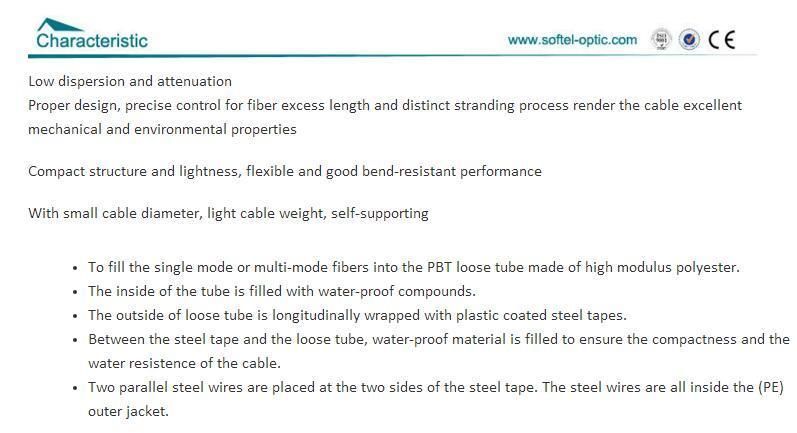

Features:

1. Up to 432 fibers
2. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
4. Metal strength member provides excellent strain performance.

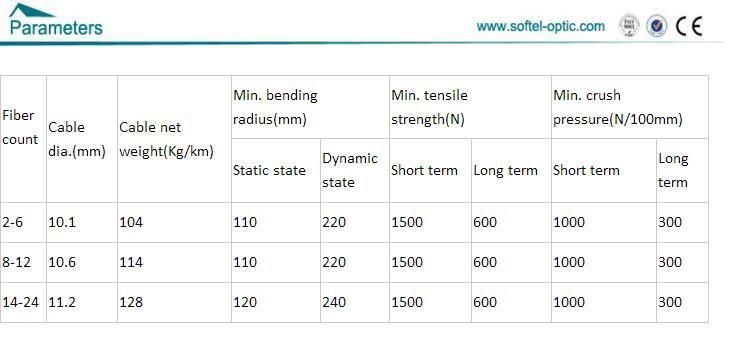

Item	Specification
F iber  t ype	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm	£ 0.36 dB/km £ 0.32 dB/km £ 0.22 dB/km £ 0.30 dB/km
Point discontinuity	£ 0.05 dB
Cable cut-off wavelength	£ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	£  0.09 3  ps/(nm 2 .km)
Chromatic dispersion @ 128 8  ~ 133 9  nm @ 1271 ~ 1360 nm @ 1550 nm @ 1 625  nm	£ 3.5 ps/(nm.   km) £ 5.3  ps/(nm .  km) £ 1 8  ps/(nm .  km) £ 22  ps/(nm .  km)
PMD Q  (Quadrature average*)	£ 0. 2  ps/km 1/2
Mode field diameter @ 1310 nm	9.2 ± 0.4 um
Core   /   Clad concentricity error	£  0. 5  um
Cladding diameter	125.0  ±  0.7 um
Cladding non-circularity	£ 1.0 %
Primary  c oating diameter	245  ±   10 um
Proof test level	100 kpsi (=0.69 Gpa), 1%
Temperature  d ependence 0 o C~ +70 o C @ 1310 & 1550nm	£  0.1 dB/km
