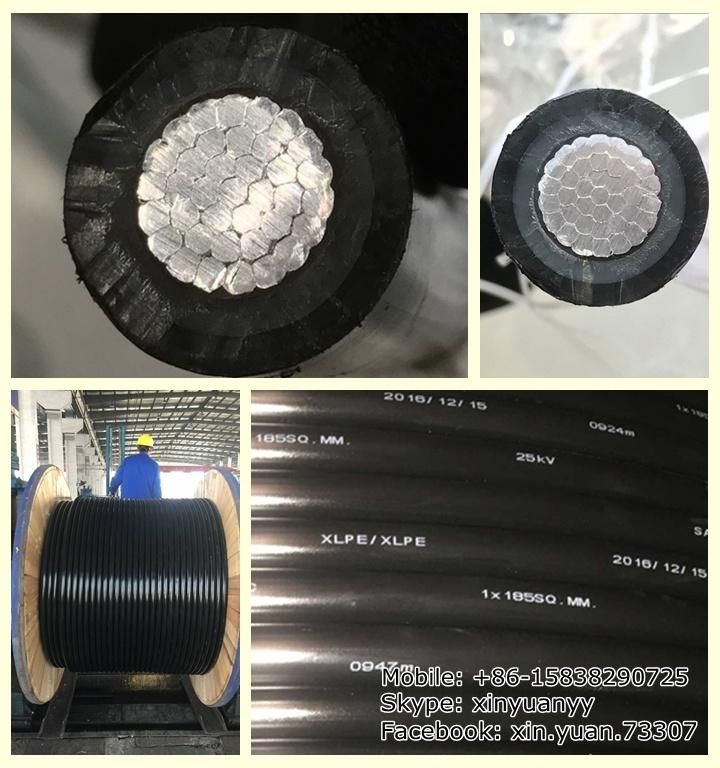

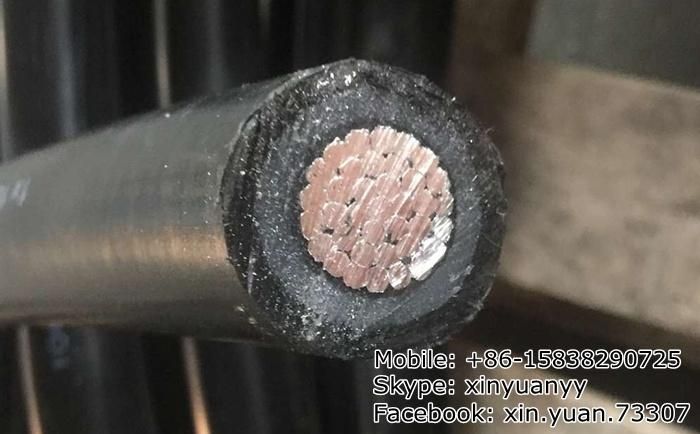

35kv Single Core Aluminum Conductor Spaced Aerial Cable - Sac Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：Crosslinking
- Material Shape：Round Wire
Base Info
- Model NO.：SAC cable
- Wire Core Material：Aluminium
- Certification：ISO, CCC, SGS
- Model：Al,XLPE,XLPE (HDPE)
- Brand：Hongda
- Voltage Rating：35kv
- Transport Package：Steel & Wooden Drum
- Specification：1.6*1.1
- Trademark：Hongda Cable
- Origin：Made in China
- HS Code：8544601200
- Production Capacity：600km,Month
Description
- Compact stranded hard drawn Aluminum wire
- Conductor sizes 35 mm2 up to 240 mm2
- Cross-linked polyethylene
- Colour : Natural
- Track resistant cross-linked polyethylene
- Colour : Black
- Normal operation 90 °C
- Emergency overload conditions 130 °C
- Short circuit conditions 250°C
- Voltage rating 35 Kv.( Phase to Phase )
SAC 35 KV ALUMINIUM STRANDED CONDUCTOR CROSS-LINKED POLYETHYLENE INSULATED AND SHEATHED SPACED AERIAL CABLE
Space Aerial Cable - SAC Cable Specifications:| Nominal Sectional Area | Minimum Number of wire | Diameter of Conductor (approx.) | Thickness of Insulation | Thickness of sheath | Overall Diameter (approx.) | Maximum DC. conductor resistance at 20°C | Allowable ampacities in free air at 40°C ambient | Cable weight (approx.) | Standard packing |
| mm2 | NO | mm | mm | mm | mm | Ω / km | A | kg/km | m |
| 25 | 7 | 5.9 | 4.45 | 3.18 | 20.0 | 1.200 | 119 | 380 | 1000/D |
| 35 | 7 | 6.95 | 4.45 | 3.18 | 21.0 | 0.868 | 149 | 490 | 1000/D |
| 50 | 7 | 8.33 | 4.45 | 3.18 | 22.0 | 0.641 | 186 | 530 | 1000/D |
| 70 | 18 | 9.73 | 4.45 | 3.18 | 24.5 | 0.443 | 229 | 630 | 1000/D |
| 95 | 18 | 11.45 | 4.45 | 3.18 | 26.0 | 0.320 | 279 | 750 | 1000/D |
| 120 | 18 | 12.95 | 4.45 | 3.18 | 27.0 | 0.253 | 321 | 850 | 1000/D |
| 150 | 18 | 14.27 | 4.45 | 3.18 | 29.5 | 0.206 | 371 | 960 | 1000/D |
| 185 | 34 | 15.98 | 4.45 | 3.18 | 31.0 | 0.164 | 429 | 1100 | 1000/D |
| 240 | 34 | 18.47 | 4.45 | 3.18 | 33.5 | 0.125 | 520 | 1400 | 1000/D |
Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
