72.5kv 2000A Wall Silicon Rubber Bushing

Ningbo Hyuan Power Industry Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Heating
  • Conductor Material：Copper
  • Certification：ISO9001
  • Transport Package：Wooden

Base Info

  • Model NO.：SILICON
  • Specification：33KV,72.5KV,123KV,132KV,145KV
  • Trademark：HEMG
  • Origin：China
  • Production Capacity：100000

Description

Basic Info.

Model NO. SILICON Specification 33KV/72.5KV/123KV/132KV/145KV Trademark HEMG Origin China Production Capacity 100000

Product Description

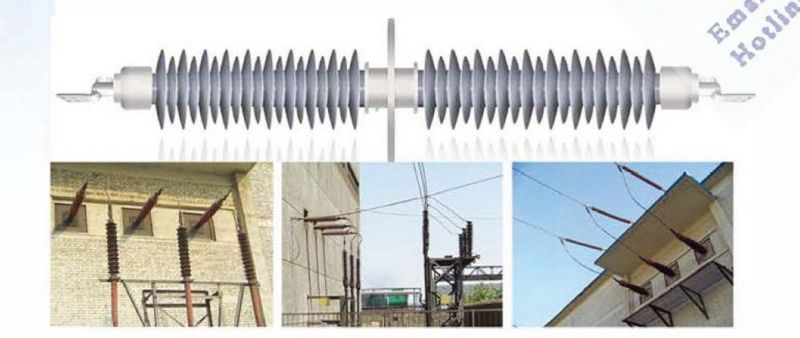

72.5kv 2000A Wall Silicon Rubber Bushing

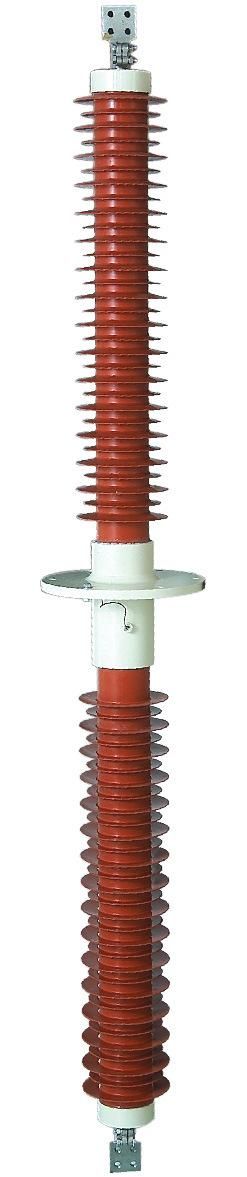

72.5kv 2000A Wall Silicon Rubber Bushing

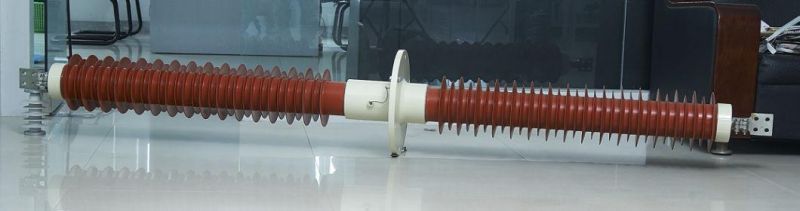

72.5kv 2000A Wall Silicon Rubber Bushing

1.Service conditions
Ambient air temperature: -50 centigrade ~ +50 centigrade
The altitude ≤ 1000m, if higher, amend according to IEC 60137
The creepage ratio20mm/kV, 25mm/kV or 31mm/kV

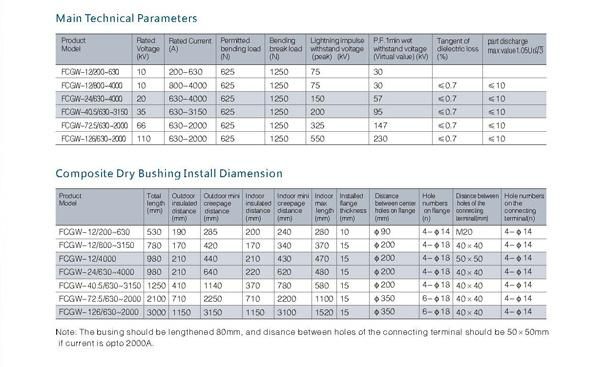

2. Technical indexes
Rated voltage ( Ur ): 33kV, 52kV, 72.5kV, 123kV, 145kV, 170kV, 245kV
Rated current ( IR ): ≤ 4000A
Partial discharge: ≤ 5PC
Dielectric dissipation factor: ≤ 0.004
Ith: 25IR
All parameters are in accordance with IEC 60137
