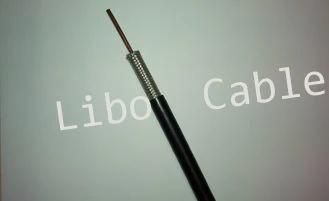

Rg8 Coaxial Cable of Low Loss 50 Ohm Cable

ZHEJIANG LIBO INDUSTRIAL CO., LTD.
  • Application：Local Communication Cable, Coaxial Cable, Fiber Optic Cable, Long Distance Symmetric Cable, RF Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 5
  • Material Shape：Flat Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：RG8
  • Wire Core Material：Steel
  • Certification：CE, ISO, RoHS, CCC, UL
  • Model：MHYV-xx
  • Brand：FUJI
  • Tinned Copper Wire：Low Loss
  • PVC Jacket：Braiding Material
  • Transport Package：Plate
  • Specification：CE, ROSHS, SGS
  • Trademark：Libo cable
  • Origin：Zhejiang, China
  • HS Code：854420
  • Production Capacity：3000kms,Month

Description



construction







Testing item
Unit
Standard
Inner conductor
material
-
solid copper or CCA
diameter
mm
2.74
Dielectric
material
-
foamed PE
diameter
mm
7.24
shield, Braid
Material
-
Tinned copper wire
Coverage
%
35%-75%
Electrical properties
jacket
PVC
mm
10.24
Nominal velocity of propagation
%
85
Capacitance
pF/M
81
Characteristic impedance
Ω
50 +/-2
SRL
dB
20
Attenuation
20ºC(max)

10MHZ

1.64
50MHZ
dB/100m
3.28
100MHZ
4.59
200MHZ
5.90
400MHZ
8.52
700MHZ
11.80
900MHZ
13.44
1000MHZ
14.43
1500 MHZ
18.03
1800 MHZ
20.00
2000 MHZ
21.31
2500 MHZ
24.59
3000 MHZ
27.21
 Rg8 Coaxial Cable of Low Loss 50 Ohm Cable
Competitive Advantage:
RG8 has lower signal loss than smaller diameter cable such as RG 174
Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
