• Model NO.：0.6,1kv Cooper 3 core underground power cable XLPE
• Material Shape：Round Wire
• Range of Application：Underground
• Certification：ISO9001, CE, CCC, RoHS, VDE
• Brand：Hongda
• Relate Voltage：0.6,1kv
• Key Word：Power Cable

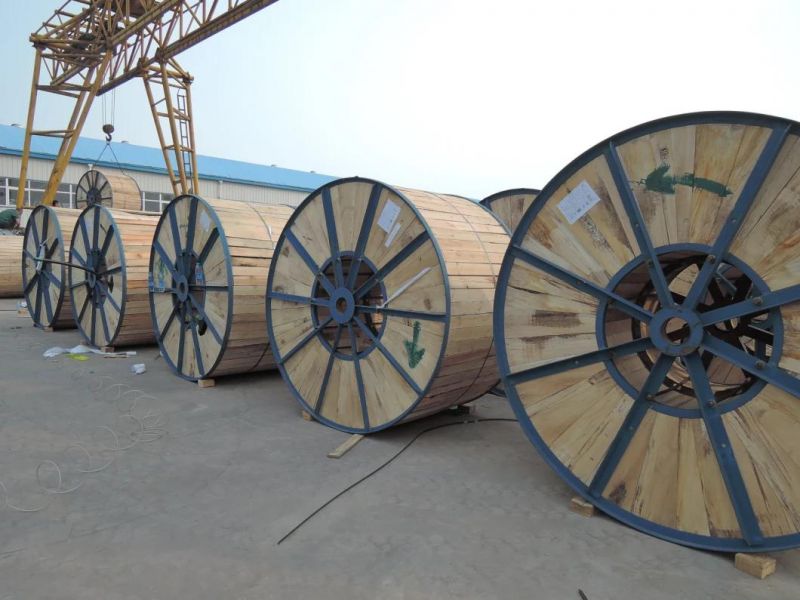

• Transport Package：Wooden Drum and Steel Wooden Drum
• Specification：single core Cooper power cable
• Trademark：hongda cable
• Origin：Henan China
• HS Code：8544492100
• Production Capacity：50000meter,Week

U-1000 R2V - Technical data and testsStandards: NF C 32-321 C32-321/A1; IEC 60502-1 NF EN 60332-1-2; NF C 15-100Nominal voltage U0/U: 0,6/1 kVTest voltage (50 Hz): 4 kVMaximun voltage Um: 1,2 kVMaximun operating temperature: +90° CMaximun short circuit temperature: +250° CMin. operating temperature
(without mechanical shocks): -25° CMinimum installation and use temp.: -10° CMinimum bending radius per
D cable diameter (in mm): 6 x DMaximum pulling stress: 5 kg/mm² (of copper cross section)Core colourssingle core : black
two cores : blue-brown
three  cores : brown-black-blue  (1,5/2,5 mmq); brown-black-gray (4 mmq)  or Y/G-blue-brown)
four cores : blue-brown-black-gray (or Y/G instead blue)
five cores : blue-brown-black-gray-Y/G (or black instead Y/G)Sheath colour: blackYJV CU/XLPE/PVC
YJLV
AL/XLPE/PVCmm²mmmmmmmmkg/kmkg/kmAAAA3×1.5 RE1.380.71.810.2132.0104.025-30-3×2.5 RE1.780.71.811.1168.7122.0302535303×4 RE2.240.71.812.1220.4145.8403050403×6 RE2.760.71.813.2296.6184.7504060453×10 CC3.80.71.815.4439.4252.9655080603×16 CC4.80.71.817.6645.9347.48565100803×25 CC6.00.91.821.0937.2470.9115901301003×35 CC7.00.91.823.21231.6578.71451101551203×50 SM8.01.01.822.11611.4678.81751301851403×70 SM9.51.11.925.72213.1907.42201702251753×95 SM11.01.12.028.72938.71166.62702052702103×120 SM12.41.22.132.53687.01448.53152403052353×150 SM13.81.42.336.84598.41800.4360275345265
