Medium Voltage High Voltage Copper XLPE Power Cable According to IEC Standard
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Power Station, Telecommunication
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：YJV32 YJV22
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：Yjv, Yjv22,Yjv32,Yjsv,Yjv72
- Brand：Yifang
- Transport Package：Drum
- Specification：According to customer request
- Trademark：YIFANG
- Origin：China
- HS Code：8544601200
- Production Capacity：10000km
Description
1AWG~800kcmil2AWG~800kcmil 4/0AWG~
800kcmil Construction:
Conductor:IEC60228 class 1 class 2 bear copper/Aluminum etc
Conductor Screen: Semi-conducting compound
Insulation: XLPE
Insulation Screen: Semi-conducting compound
Core: 1core or 3cores
Shield: Copper wire/ Copper tape/AL-Plastic tape
Inner Sheath( optional): PVC/ PE/ LSZH
Armoured ( optional): Galvanized steel wire/Aluminum wire/Two layers of Aluminum tapegap-wrapped /Two layers of steel tape gap-wrapped / Galvanized steel interlocked armour/Aluminum alloy interlocked armour
Outer Sheath: PVC/ PE/ LSZH

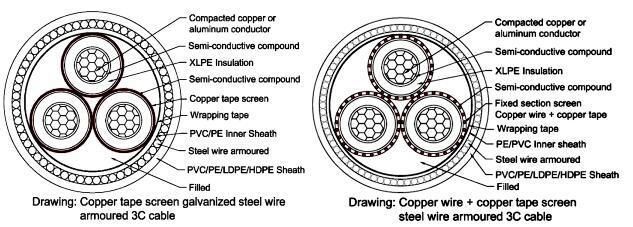

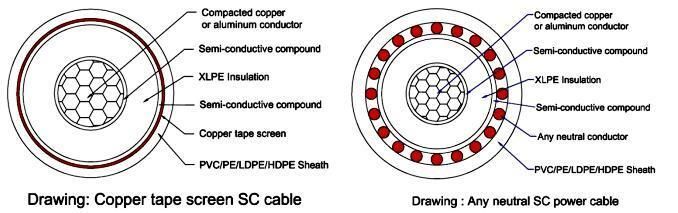

Cable Drawing
* We can design and produce according to client's requirement
