Nyy Tinned Copper 8X2.5st Ntmtwoeu 0.6/1kv Mine Hoist Power Transmission Aluminium Control Electric Wire Coaxial Waterproof Rubber Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car, Installation in Ground, Indoors, Outdoors.
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Epr Type 3gi3.
- Sheath Material：Pcp Rubber Type 5GM5.
- Material Shape：Round Wire
Base Info
- Model NO.：NTMTWOEU
- Wire Core Material：Flexible Stranded Tinned Copper Conductor, Class 5
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：H07rn8-F
- Brand：Feiya
- Temperature Range：-25 Degree to +60 Degree
- OEM&ODM：Yes
- Rated Voltage：0.6,1kv
- Operating Environment：Handling Equipment, Mobile Power Supplies, Worksit
- Other Service：Can Be Customized
- Colors：Can Be Customized
- Used Place：Mining Cable
- Anti-Torsion Braid：Textile Braid.
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper,aluminum,rubber
- Trademark：Feiya
- Origin：China
- HS Code：8544
- Production Capacity：80000 Meter,Meters Per Month
Description
Application:

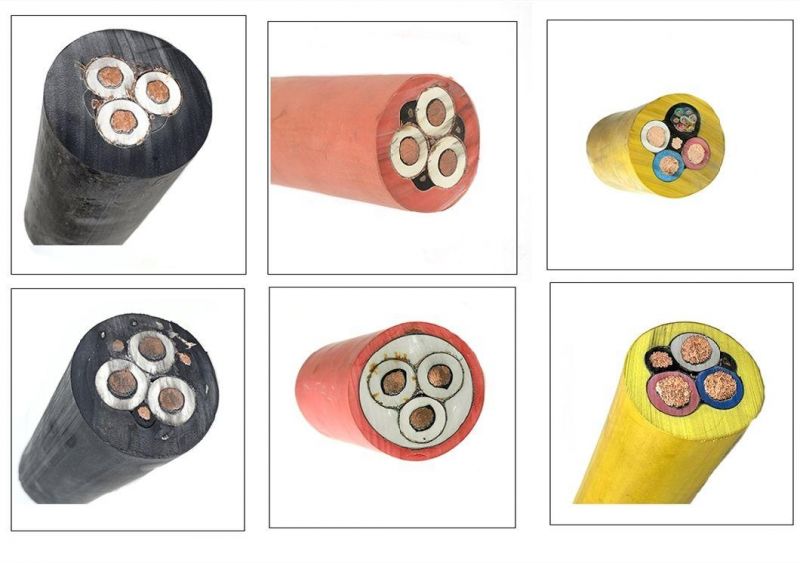

Flexible cable, rubber sheathed, suitable for mining applications alongside conveyor belts, for energy supply to equipment in movement, industrial apparatus, and submersed pumps. It's resistant to abrasion, oils and flame retardant.
Phase Conductor: Class 5 flexible copper conductor
Insulation: Rubber EPR type 3G13 (acc. to DIN VDE 0207 part 20)
Inner Sheath: Rubber GM1b (acc. to DIN VDE 0207 part 21)
Outer Sheath: Heavy duty rubber compound 5GM5(acc. to DIN VDE 0207 part 21)
Sheath Colour: Black
Voltage Rating Uo/U:0.6/1kV
Test Voltage: 3kV
Ambient Temperature:
Fixed: -40°C to +80°C;
Flexed: -25°C to +80°C
Maximum Short Circuit Temperature: +250°C
