• Model NO.：YJV YJY YJLV YJLY YJLV22 YJLV23
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, CE
• Model：YJV
• Brand：Gdyg
• Transport Package：Wooden Drum
• Specification：ICEA S-76-474 etc, NFC-33029
• Trademark：GDYG
• Origin：Guangdong Province, China
• HS Code：854449210
• Production Capacity：30000km

Basic Info.

Model NO. YJV YJY YJLV YJLY YJLV22 YJLV23 Wire Core Material Red Copper Wire Certification ISO, CCC, CE Model YJV Brand Gdyg Transport Package Wooden Drum Specification ICEA S-76-474 etc, NFC-33029 Trademark GDYG Origin Guangdong Province, China HS Code 854449210 Production Capacity 30000km

Product Description

Rated voltage 3.6/6KV-26/35KV copper/aluminum conductor,XLPE/PVC insulated, PVC sheathed, power cable.These cables includes single core and muti cores.The corss section area of conductor can be from 25mm2, 35mm2, 50mm2, 70mm2 .... to 240mm2, 300mm2, 400mm2, 500mm2, 630mm2. There XLPE Cables can be armoured with steel tape, steel wire, aluminum wire. or you can require more functions such as flame retardant etc for your special purpose of application.

XLPE/PVC insulated power cable has the advantages of not only high mechanical strength,good ambient stress resistance,good electrical properties and anti-chemical corrosion,but also simple construction,light weight and convenient to use.It applies to electricl power transmission and distribution lines.

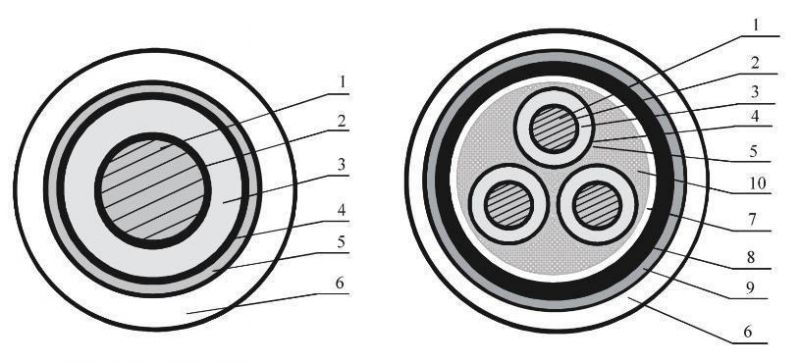

Structure of Product

1. Conductor
2. Inner semi-conducting screen
3. Insulation
4. Outer semi-conducting screen
5. Metallic screen
6. Outer sheath
7. Wrapping tape
8. Inner sheath
9. Steel belt armor
10. Filler

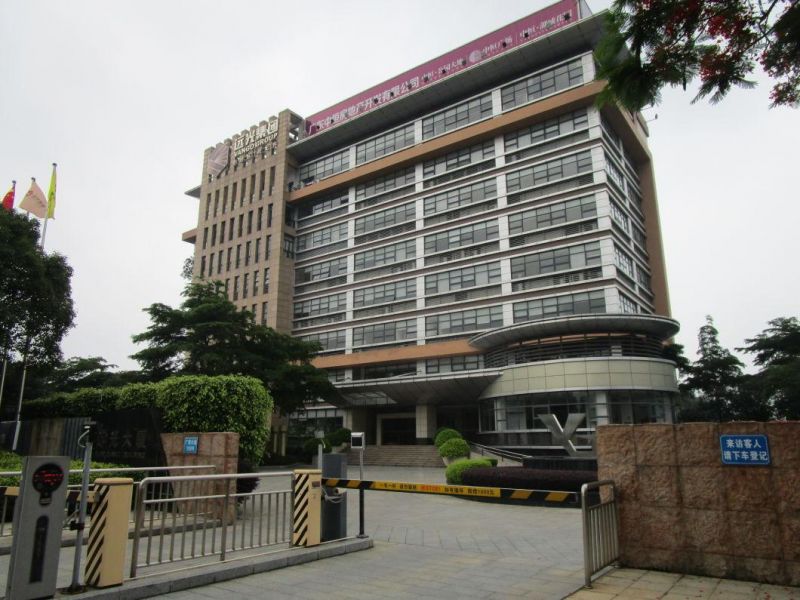

Company Building

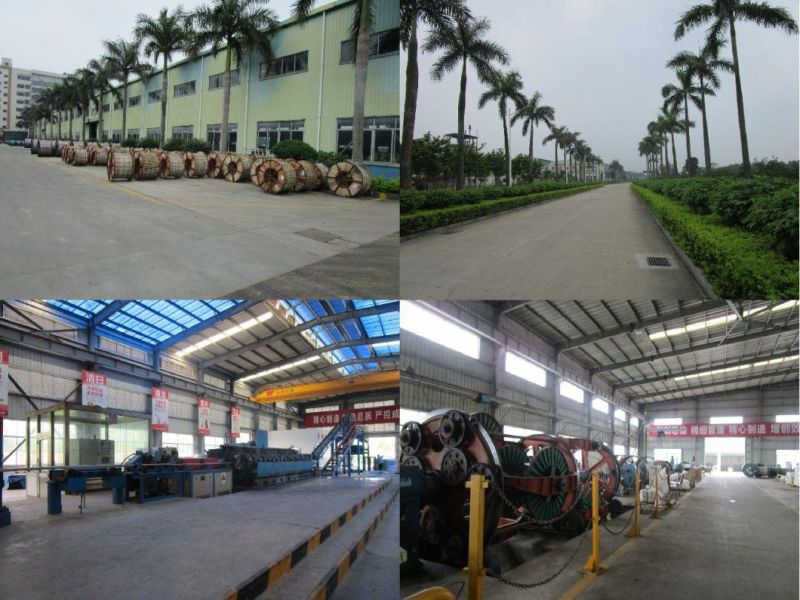

Factory & Workshop

Certificates

Customers
