Medium Voltage XLPE Insulated PVC/PE Sheathed Power Cable
Guangdong Vango Cable Industry Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：YJV YJY YJLV YJLY YJV22 YJV23
- Wire Core Material：Red Copper Wire
- Certification：ISO, CCC, CE
- Model：YJV
- Brand：Gdyg
- Transport Package：Wooden Drum
- Specification：ICEA S-76-474 etc, NFC-33029
- Trademark：GDYG
- Origin：Guangdong Province, China
- HS Code：854449210
- Production Capacity：30000km
Description
Basic Info.
Model NO. YJV YJY YJLV YJLY YJV22 YJV23 Wire Core Material Red Copper Wire Certification ISO, CCC, CE Model YJV Brand Gdyg Transport Package Wooden Drum Specification ICEA S-76-474 etc, NFC-33029 Trademark GDYG Origin Guangdong Province, China HS Code 854449210 Production Capacity 30000kmProduct Description
0.6/1KV copper/aluminum conductor,XLPE/PVC insulated, PVC sheathed, power cable.These cables includes single core and muti cores.The corss section area of conductor can be from 1.5mm2 to 500mm2;3x1.5mm2 to 3x300mm2 or other size as customers require.XLPE/PVC insulated power cable has the advantages of not only high mechanical strength,good ambient stress resistance,good electrical properties and anti-chemical corrosion,but also simple construction,light weight and convenient to use.It applies to electricl power transmission and distribution lines with A.C rated voltage up to and including 0.6/1KV.

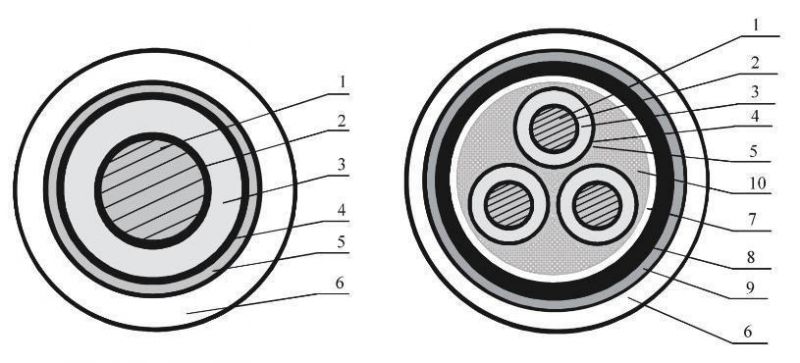

Structure of Product
1. Conductor
2. Inner semi-conducting screen
3. Insulation
4. Outer semi-conducting screen
5. Metallic screen
6. Outer sheath
7. Wrapping tape
8. Inner sheath
9. Steel belt armor
10. Filler

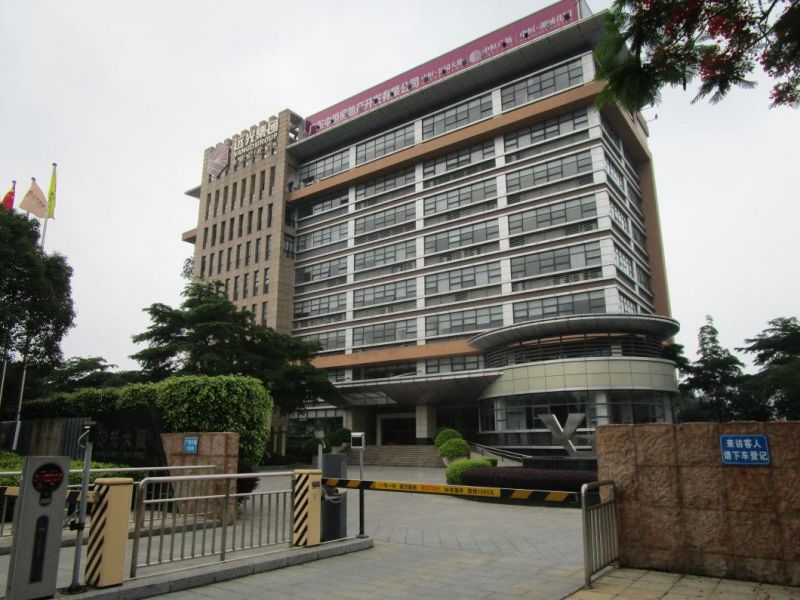

Company View

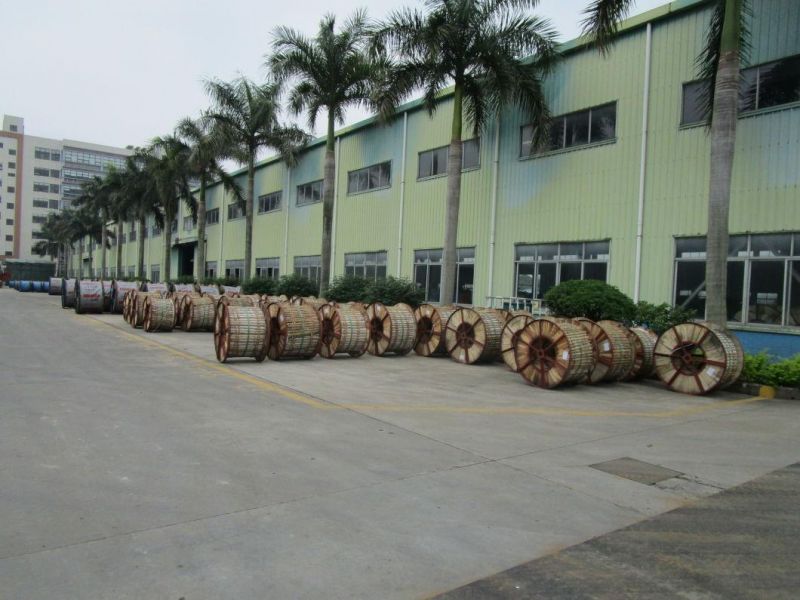

Factory

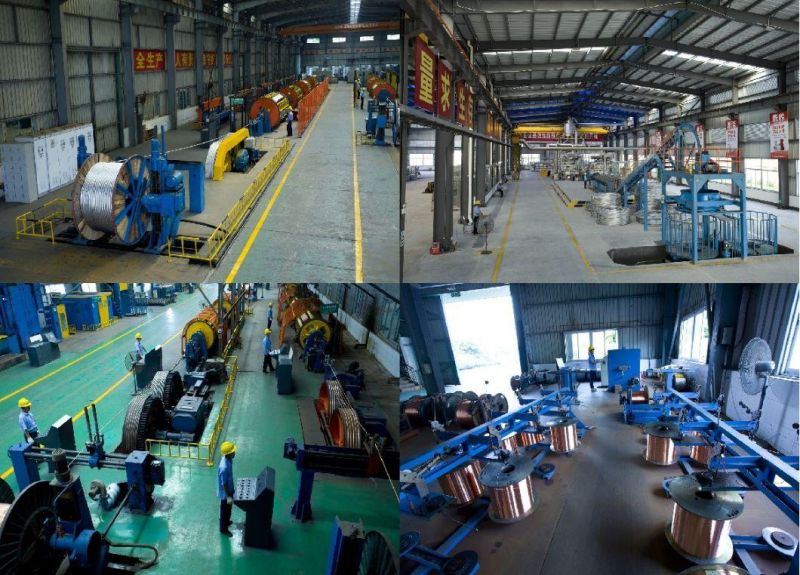

Workshop
Certificates
Customers
