• Model NO.：LV Cable-B-60
• Wire Core Material：Copper or Aluminum
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：LV Cable
• Brand：Yifang
• Conductor Material：Cu or Al
• Sheath Colour：Black,Red,Blue,Orange, Other as Per Requirements
• Transport Package：Drum or Under Clients′ Request
• Specification：1.5mm2-1000mm2
• Trademark：Yifang
• Origin：Zhengzhou, China
• Production Capacity：1000km,Month

Basic Info.

Model NO. LV Cable-B-60 Wire Core Material Copper or Aluminum Certification ISO, CCC, CE, RoHS, UL, VDE Model LV Cable Brand Yifang Conductor Material Cu or Al Sheath Colour Black,Red,Blue,Orange, Other as Per Requirements Transport Package Drum or Under Clients′ Request Specification 1.5mm2-1000mm2 Trademark Yifang Origin Zhengzhou, China Production Capacity 1000km/Month

Product Description

Cable BT U1000 RO2V

1. Cable BT U1000 RO2V belongs to cables rated voltage up to 1KV. They are used for laying indoor, tunnel, underground, canal, water and seabed, etc.

Standard available such as ASTM, BS, DIN, NFC, AS/NZS, CSA, IS, etc.

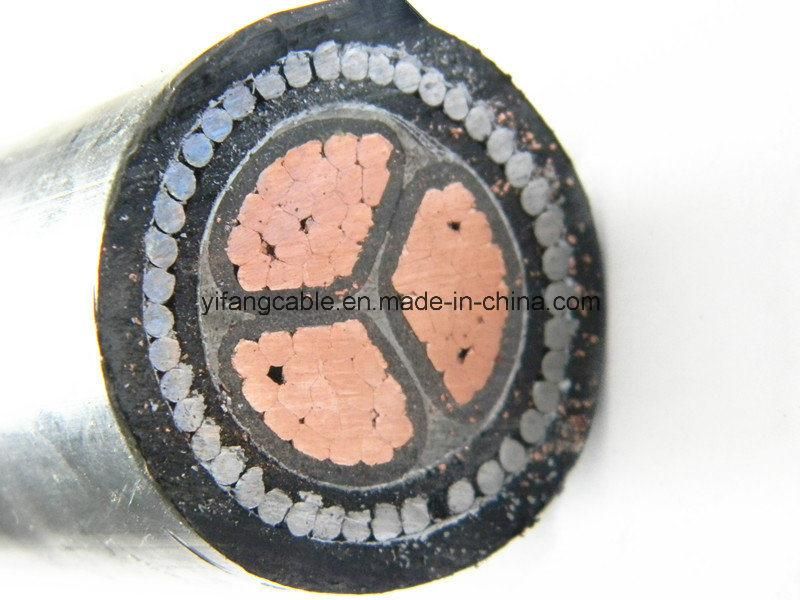

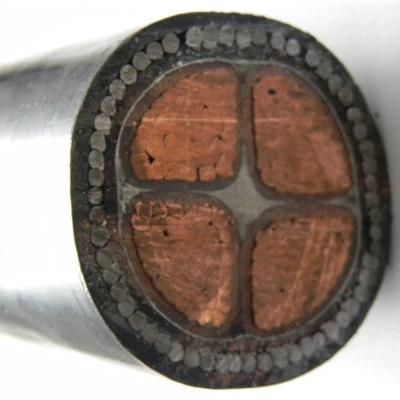

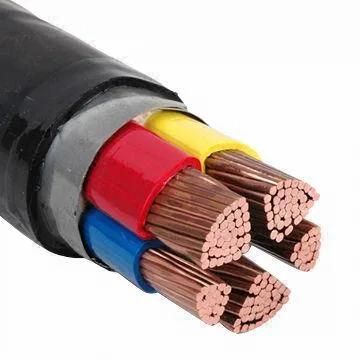

2. Brief Construction:
2.1 Number of Core: 1Core, 2Core, 3Core, 4Core, 5Core, 3+1Core(3.5Core), 3+2 Core, 4+1Core, etc.
2.2 Conductor material: Copper or Aluminum (Stranded Round /Stranded compacted round/stranded compacted sector)
2.3 Insulation Material: XLPE/PVC
2.4 Inner sheath (applicable if there is armour layer): PVC/PE
2.5 Armour layer (if required): Galvanized steel wire / Steel Tape
2.6 Outer sheath: PVC

3. The max. Conductor long time permissible operating temperature is 70 degree for PVC Insulation and 90degreefor XLPE Insulation; In short circuit, max. Temperature is 160 degree for PVC Sheath and 250degreefor PVC Sheath.

4. Packing: In roll / In wooden drum / In Iron-wooden drum / In steel drum.

5. Certificate: ISO, CE, SGS, SONCAP, BV, COC, ETC.

6. For other detailed information, pls contact us directly.
