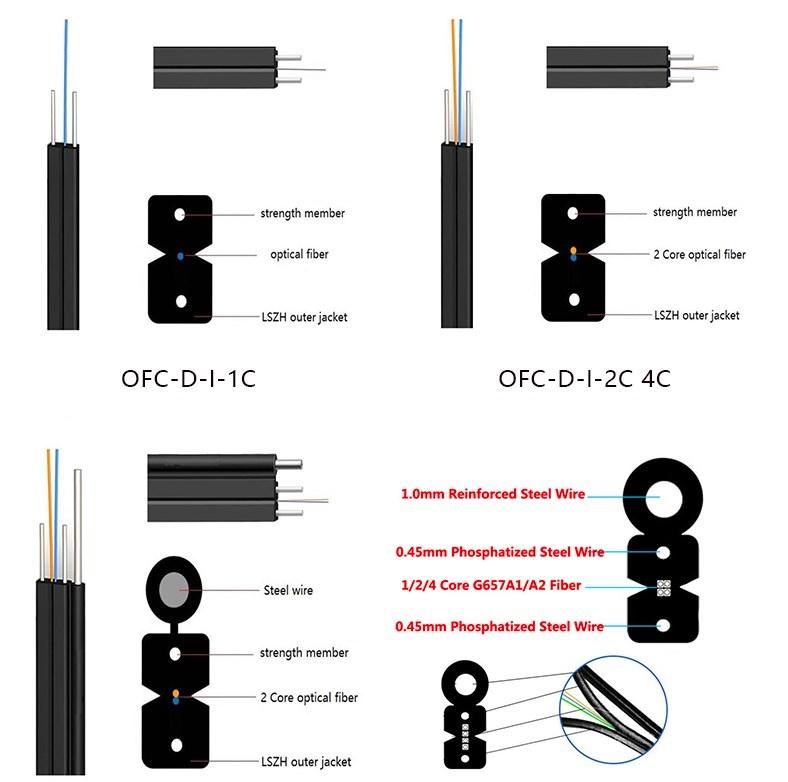

Indoor FTTH Drop Wire Fiber Optic
Zhejiang Kuayue Cable Co., Ltd.- Application：Local Communication Cable, Fiber Optic Cable, Long Distance Symmetric Cable, Submarine Cable
- Conductor Material：Glasses
- Cover Material：LSZH
- Type：Single-Mode Fiber
- Material Shape：Round Wire
- Conductor Type：Single-Mode Fiber
Base Info
- Wire Core Material：Glasses
- Certification：CE, ISO, RoHS
- Model：Indoor FTTH Drop Wire Fiber Optic
- Brand：Hanli
- Allowed Tensile Strength：>10000n
- Allowed Lateral Pressure：>1000 (N,100mm)
- Transport Package：1000,2000,3000m
- Specification：1-4C
- Trademark：hanxin
- Origin：Zhejiang
- HS Code：8544700000
- Production Capacity：3000000m,Month
Description
Maximum Pulling LoadInstallation(N/Ib) In Service(N/Ib) 1 Simplex 2.0mm 7.6 5.10 2.0 0.079 490/110 290/65 1 Simplex 2.5mm 7.8 5.23 2.5 0.098 490/110 290/65 1 Simplex 2.8mm 8.0 5.37 2.8 0.110 490/110 290/65 1 Simplex 3.0mm 8.2 5.50 3.0 0.118 490/110 290/65 2 Duplex Flat 28.0 18.79 4.0X6.8 0.157X0.267 980/220 580/130 2 Duplex Round 18.4 12.35 4.2 0.165 980/220 580/130 2 Duplex Zip 15.0 10.07 2.4X4.8 0.094X0.188 980/220 580/130 Minimum Bending Radius:
Under installation:20hOD
During operation:10hOD
Temperature Range:
Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF)
Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF)
Maximum Compressive Load:2000N
Repeated Impact: 2.9 N.m (J)3h2 impacts
Twist (Torsion):180h10 times, 125hOD
Cyclic Flexing:25 cycles for armoured cables.;
100 cycles for unarmoured cables.
Crush Resistance:875N/cm (500lb/in) Temperature Cycling IEC60794-1-2-F2 Repeated Bending IEC60794-1-2-E6 Tensile Strength IEC60794-1-2-E17 ATorsion IEC60794-1-2-E Crush IEC60794-1-2-E3 Kink IEC60794-1-2-E10 Impact IEC60794-1-2-E4 Cable Bend IEC60794-1-2-E11 Cool Bend IEC60794-1-2-E11 General Purpose Grade Flammability Test: OFN (UL1581) Riser Grade
Plenum Grade
FRPVC Grade
LSZH Grade
LSFROH Grade
FR Grade Flammability Test: OFNR/FT4 (UL1666)
Flammability Test: OFNP/FT6 (UL 910)
Flammability Test: IEC60332-1
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A
Fire Resistance Test: IEC 60331 / BS 6387 CWZ
GR409-CORE TIA/EIA 568B.3 ICEA-S-83-596

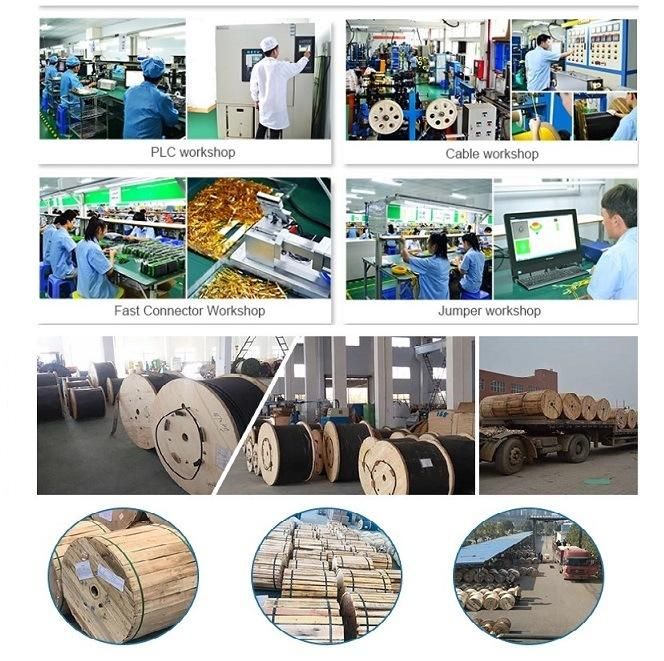

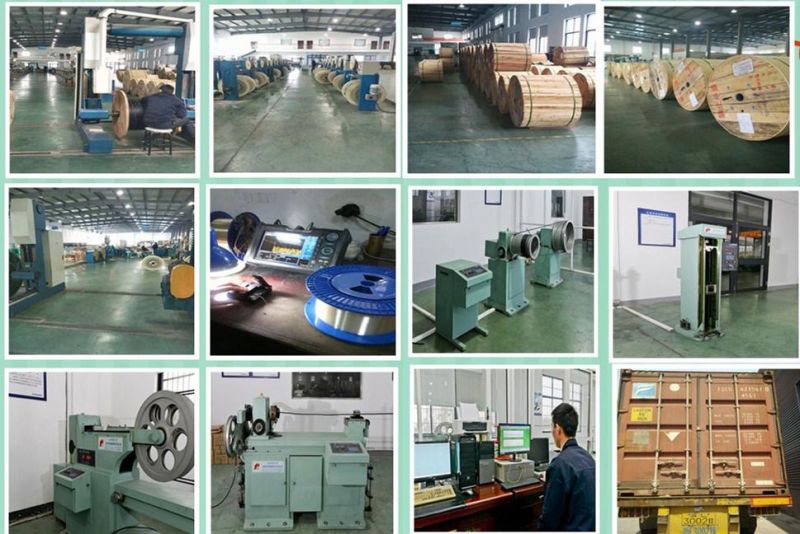

Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
