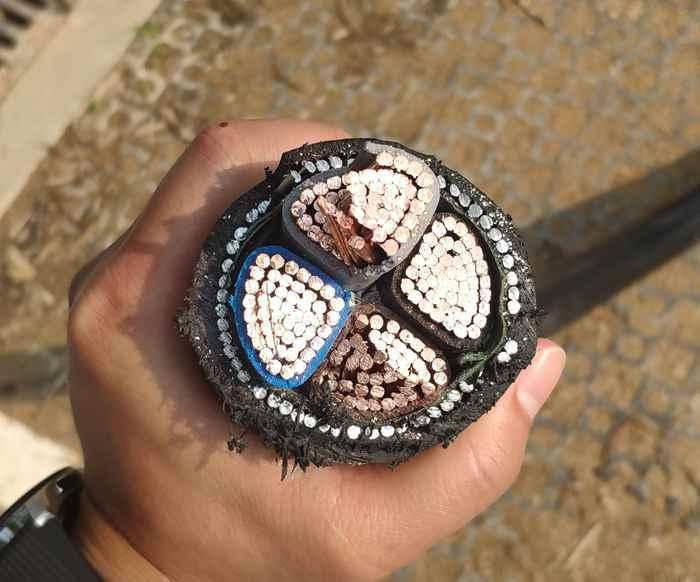

240mm 4 Core XLPE/SWA/PVC Galvanized Steel Wire Armoured Power Cable

1. Application

Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

Construction

2. Rated Voltage
 0.6/1KV

3. Construction:

Conductor
Copper or Aluminium Class 2 stranded

Insulation
XLPE (Cross-Linked Polyethylene)

Bedding
PVC (Polyvinyl Chloride)

Armour
SWA (Steel Wire Armour)

Sheath
PVC (Polyvinyl Chloride)




4. Characteristics

Voltage Rating (Uo/U)
600/1000V

Temperature Rating
Fixed: -25°C to +90°C

Minimum Bending Radius
1.5mm2 to 16mm2 - Fixed: 6 x overall diameter
25mm2 and above - Fixed: 8 x overall diameter

Core Identification
2 core: Brown, Blue
3 core: Brown, Black, Grey
4 core: Brown, Blue, Black, Grey
5 core: Green/Yellow, Brown, Blue, Black, Grey

Alternative Core Identification:
White cores with Black numbers

Sheath Colour
Black

5. Size, Weight & Electrical Specification

No of cores	Size	Insulation thickness	Diameter of armour wire	Approx. diameter under armour	Overall diameter	Weight	Max. conductor resistence at 20°C
	sq.mm	mm	mm	mm	mm	kg/km	ohms/km
2	1.5	0.6	0.9	10.4	12.4	420	12.1
2	2.5	0.7	0.9	11.5	13.8	500	7.41
2	4	0.7	0.9	12.6	17.2	580	4.61
2	6	0.7	0.9	13.8	18.4	660	3.08
2	10	0.7	0.9	15.7	20.5	830	1.83
2	16	0.7	1.25	16.1	21.6	1000	1.15
2	25	0.9	1.6	16.3	22	1100	0.727
2	35	0.9	1.6	18.4	25	1550	0.524
2	50	1	1.6	20.6	27.4	1850	0.387
2	70	1.1	1.6	23.6	30.6	2450	0.268
2	95	1.1	2	26.7	34.7	3350	0.193
2	120	1.2	2	29.5	37.7	3900	0.153
2	150	1.4	2.5	32.5	40.9	4650	0.124
2	185	1.6	2.5	36.5	46.5	5950	0.0991
2	240	1.7	2.5	40.6	50.6	7350	0.0754
2	300	1.8	2.5	44.9	55.1	8700	0.0601
2	400	2	2.5	50	60.6	10750	0.047
3	1.5	0.6	0.9	10.9	15.5	426	12.1
3	2.5	0.7	0.9	12.2	16.8	540	7.41
3	4	0.7	0.9	13.4	18	640	4.61
3	6	0.7	0.9	14.7	19.3	740	3.08
3	10	0.7	1.25	16.7	22.2	1080	1.83
3	16	0.7	1.25	17.2	22.9	1310	1.15
3	25	0.9	1.6	20.6	27.2	1800	0.727
3	35	0.9	1.6	22.9	29.7	2200	0.524
3	50	1	1.6	23.4	30.2	2450	0.387
3	70	1.1	2	26.9	33.9	3200	0.268
3	95	1.1	2	30.5	38.7	4450	0.193
3	120	1.2	2	33.7	42.1	5300	0.153
3	150	1.4	2.5	37.6	47.2	6700	0.124
3	185	1.6	2.5	41.7	51.5	8080	0.0991
3	240	1.7	2.5	46.6	56.8	9950	0.0754
3	300	1.8	2.5	51.5	61.9	12050	0.0601
3	400	2	2.5	57.5	68.3	14800	0.047
4	1.5	0.6	0.9	11.9	16.5	520	12.1
4	2.5	0.7	0.9	13.4	18	620	7.41
4	4	0.7	0.9	14.8	19.4	730	4.61
4	6	0.7	0.9	16.2	21.7	990	3.08
4	10	0.7	1.25	18.6	24.1	1260	1.83
4	16	0.7	1.25	19.1	24.8	1640	1.15
4	25	0.9	1.6	22.9	29.5	2150	0.727
4	35	0.9	1.6	25.5	32.3	2650	0.524
4	50	1	1.6	26.9	33.9	3100	0.387
4	70	1.1	2	31.4	39.6	4400	0.268
4	95	1.1	2	35.2	43.6	5650	0.193
4	120	1.2	2.5	39.4	49	7250	0.153
4	150	1.4	2.5	43.5	53.3	8550	0.124
4	185	1.6	2.5	48.3	55.8	10300	0.0991
4	240	1.7	2.5	54.5	64.9	12900	0.0754
4	300	1.8	2.5	59.9	70.7	15550	0.0601
4	400	2	3.15	67.3	80	20250	0.047
5	1.5	0.6	0.9	-	11	240	12.1
5	2.5	0.7	0.9	-	12	300	7.41
5	4	0.7	0.9	-	13	360	4.61
5	6	0.7	0.9	-	14	440	3.08
5	10	0.7	0.9	-	16	580	1.83
5	16	0.7	0.9	-	19	860	1.15
5	25	0.9	1.25	-	22	1050	0.727
7	1.5	0.6	0.9	-	16.2	520	12.1
7	2.5	0.7	0.9	-	18	650	7.41
12	1.5	0.6	0.9	-	20.9	860	12.1
12	2.5	0.7	0.9	-	24.4	1130	7.41
19	1.5	0.6	0.9	-	24.1	1130	12.1
19	2.5	0.7	0.9	-	29.2	1710	7.41

Core NO. & Nominal Cross-section Area as reference:

NO. Of Cores
Rated voltage
Nominal thickness of insulation
Thickness of sheath
Diameter of conductor
Approx. Overall diameter
Max cable weight
Nominal cross sectional area of conductor etc.

All above can do as every different standards OR as your special request
