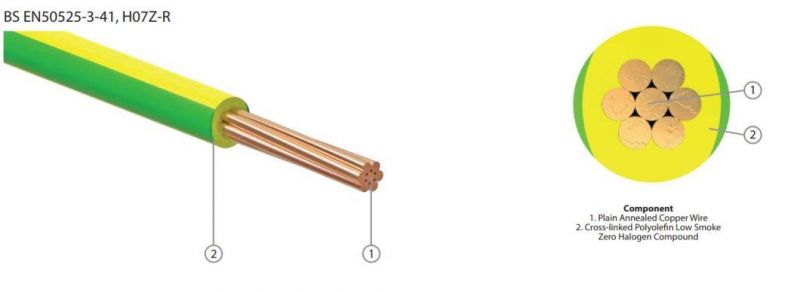

Nyy H07z-R XLPE Insulated PVC Sheathed Copper Conductor Wire Cores Solid Stranded Copper/Aluminum Electric Aluminium Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Home Wire
- Voltage：Low and Medium Voltage Cable
- Current：DC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Power Cables
- Wire Core Material：Solid Bare Copper
- Certification：ISO, CCC, CE
- Model：60227 IEC
- Brand：Feng Da
- Colour：Red,Green,Blue,Black,White,as Request
- OEM/ODM：Yes
- Flame Test：Yes
- Transport Package：Rolls or According to Customer′s Request
- Specification：copper
- Trademark：feiya
- Origin：Tianjin, China
- HS Code：8544492100
Description
Executive standard
It is manufactured acconding to GB/T 5023-2008,JB/T 8734-2016 standards.(Equivalent national standard of IEC60227).
Application
These cable types are especially suited for use on small appliances with low mechanical stress and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, etc. As far as these cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus. Cables with cross section 0.75 mm² are not suitable for outdoor use or use of industrial or farmer machineries. Max operating voltage in single or three phase system is Uo/U 330/330 volts. In a direct current system max operating voltage is Uo/U 495/495 volts.
B serie are used for fixed laying in engine devices of AC rated voltage 450/750V of lower, R serie are used for household electrical appliances ,small electrical tools, instruments and engine lighting of AC rated voltage 450/750V or lower.
