• Model NO.：Cordaflex SMK
• Material Shape：Round Wire
• Range of Application：Frequently Changing Dynamic Loads
• Certification：ISO9001, CE, CCC, RoHS, VDE
• Brand：Fengda
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Basic Info.

Model NO. Cordaflex SMK Material Shape Round Wire Range of Application Frequently Changing Dynamic Loads Certification ISO9001, CE, CCC, RoHS, VDE Brand Fengda Color Black Red Yellow, According to Voltage Level Whether It Is Environmentally Friendly Yes Whether Quality Inspection Provide Inspection Certificate Standard Customized According to Specified National Standar OEM/ODM Accepted Core Single Core and Multicore Transport Package Standard Export Packaging Specification International General Specifications Trademark Fengda Origin Tianjin, China(Mainland) HS Code 8544492100 Production Capacity 100000/Day

Product Description

Applications

 Flexible low voltage reeling cable for application under extreme mechanical stresses, specially designed for vertical reeling operation (spreader reeling application). These cables are used for frequently changing dynamic loads, such as reeling cables for scoops (LHDs) in underground mines, suitable for mono-spiral reels and cylindrical reels.

Standards
Brand CORDAFLEX(SMK)-V
Type designation (N)SHTOEU-J/-O
Standard Based on DIN VDE 0250-814



Construction
Design features
Conductor Electrolytic bare copper, very finely stranded class FS
Insulation Special thermoplastic compound providing very high stability, best insulation resistance and excellent gliding characteristic
Core identification Best identification as a result of black colored insulation with light printed numbers, earth conductor green-yellow
Individual screen Braid screen made of tinned copper wires. Transfer impedance optimized at 30 MHz.
Surface covered: at least 60% for shielded cores; at least 80% for twisted pairs
Core arrangement Laid-up in a maximum of 3 layers Support element Central aramide support element to increase the loading capability.
The kN value designates the breaking load of the support element
Sheath system - PROTOFIRM Special - Inner sheath: High grade special compound based on PCP, color: yellow;
- Anti-torsion braid: Reinforced braid made of polyester threads, in a vulcanized bond between the sheaths, resulting in a high strength of the sheath system;
- PROTOFIRM Special - Outer sheath: A sheath system with a unique combination of flexibility and robustness has been achieved through the use of this structure.
Abrasion and tear resistant special rubber compound based on PCP, color: yellow.
Marking CORDAFLEX (SMK)-V (N)SHTOEU-J/-O (number of cores)x(cross-section)

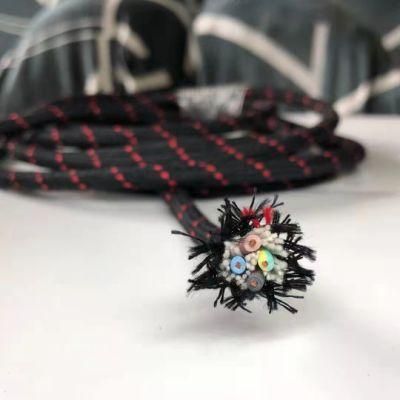

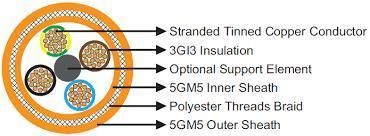

Conductors:Flexible stranded tinned copper conductor.
Insulation: EPR type 3GI3.
Optional Support Element: Central support element.
Inner Sheath: PCP type 5GM5.
Anti-torsion Braid: Reinforced braid of polyester threads in a vulcanized bond between inner and outer sheath.
Outer Sheath: PCP type 5GM5.

Electrical Parameters
Rated voltage 0.6/1 kV (600/1000V)
Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC 0.9/1.8 kV AC
Test Voltage 3.5 kV (5 Min.) Data transmission With special elements: ASI-Bus, Profibus, CAN-Bus, Industrial Ethernet. Alternatively: fibre optics for transmitting all bus protocols.
Current Carrying Capacity description Acc. to DIN VDE 0298-4

Chemical Parameters
Resistance to oil Acc. to DIN EN 60811-404; DIN VDE 0473-811-404, paragraph 10
Weather resistance Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture
Water resistance Given and verified in long-term tests

Thermal Parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -50 °C ; max +80 °C
Ambient temperature in fully flexible operation min -35 °C ; max +80 °C

Mechanical parameters

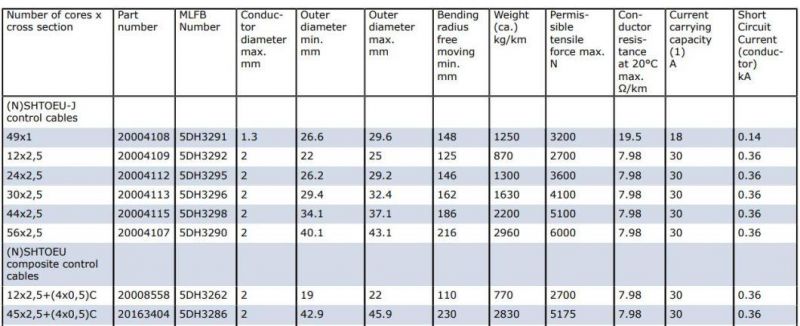

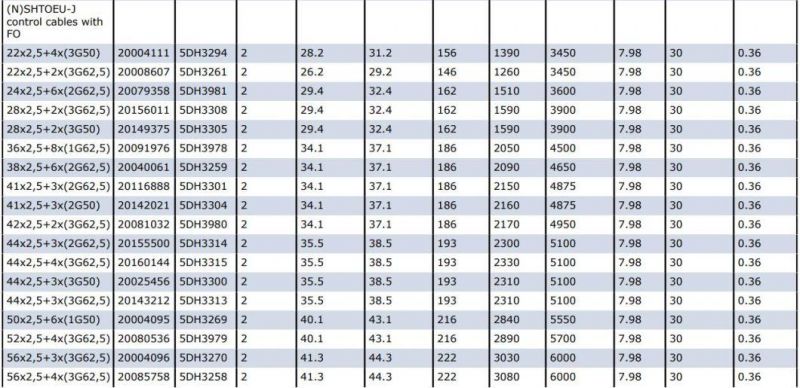

Max. tensile load Increased tensile load through addtional support elements (see table).
Torsional stress ± 50 °/m Min. bending radius Acc. to DIN VDE 0298 part 3 Min. distance with S-type directional changes 20 X D
Travel speed Hoist (vertical reeling): up to 240 m/min.
