Stranded Aluminium Conductor Steel Reinforced ACSR
Guangdong Vango Cable Industry Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead Installation
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：ACSR
- Material Shape：Round Wire
- Range of Application：Overhead Installation
- Certification：ISO9001, ISO9001,ISO14001, CCC, Ce
- Brand：Gdyg
- Warranty：12 Months
- Standard：IEC61089, ASTM B232, BS215, GB, DIN etc.
- Model No.：ACSR Conductor
- ACSR Code：Turkey, Swan, etc.
- Supply Record：African Countries, Arabian Countries, etc.
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600 Tons Per Month
Description
Current carrying capacityAl Steel Total Al Steel Al Steel Core Cond. mm2 mm2 mm2 mm mm mm mm kg/km kN Ω/km N/mm2 1/K A 15-AL1/3-ST1A 16/2.5 15.3 2.54 17.8 6 1 1.80 1.80 1.80 5.40 61.6 5.80 1.8769 81000 1.92E-05 105 24-AL1/4-ST1A 25/4 23.9 3.98 27.8 6 1 2.25 2.25 2.25 6.75 96.3 8.95 1.2012 81000 1.92E-05 140 34-AL1/6-ST1A 35/6 34.4 5.73 40.1 6 1 2.70 2.70 2.70 8.10 138.7 12.37 0.8342 81000 1.92E-05 170 44-AL1/32-ST1A 44/32 44.0 31.70 75.6 14 7 2.00 2.40 7.20 11.20 369.3 44.24 0.6574 110000 1.50E-05 - 48-AL1/8-ST1A 50/8 48.3 8.04 56.3 6 1 3.20 3.20 3.20 9.60 194.8 16.81 0.5939 81000 1.92E-05 210 51-AL1/30-ST1A 50/30 51.2 29.80 81.0 12 7 2.33 2.33 6.99 11.70 374.7 42.98 0.5644 107000 1.53E-05 - 70-AL1/11-ST1A 70/12 69.9 11.40 81.3 26 7 1.85 1.44 4.32 11.70 282.2 26.27 0.4132 77000 1.89E-05 290 94-AL1/15-ST1A 95/15 94.4 15.30 109.7 26 7 2.15 1.67 5.01 13.60 380.6 34.93 0.3060 77000 1.89E-05 350 97-AL1/56-ST1A 95/55 96.5 56.30 152.8 12 7 3.20 3.20 9.60 16.00 706.8 77.85 0.2992 107000 1.53E-05 - 106-AL1/76-ST1A 105/75 105.7 75.50 181.2 14 19 3.10 2.25 11.30 17.50 885.3 105.82 0.2742 110000 1.50E-05 - 122-AL1/20-ST1A 120/20 121.6 19.80 141.4 26 7 2.44 1.90 5.70 15.50 491.0 44.50 0.2376 77000 1.89E-05 410 122-AL1/71-ST1A 120/70 122.1 71.30 193.4 12 7 3.60 3.60 10.80 18.00 894.5 97.92 0.2364 107000 1.53E-05 - 128-AL1/30-ST1A 125/30 127.9 29.80 157.8 30 7 2.33 2.33 6.99 16.30 587.0 56.41 0.2260 82000 1.78E-05 425 149-AL1/24-ST1A 150/25 148.9 24.20 173.1 26 7 2.70 2.10 6.30 17.10 600.8 53.67 0.1940 77000 1.89E-05 470 172-AL1/40-ST1A 170/40 171.8 40.10 211.8 30 7 2.70 2.70 8.10 18.90 788.2 74.89 0.1683 82000 1.78E-05 520 184-AL1/30-ST1A 185/30 183.8 29.80 213.6 26 7 3.00 2.33 6.99 19.00 741.0 65.27 0.1571 77000 1.89E-05 535 209-AL1/34-ST1A 210/35 209.1 34.10 243.2 26 7 3.20 2.49 7.47 20.30 844.1 73.36 0.1381 77000 1.89E-05 590 212-AL1/49-ST1A 210/50 212.1 49.50 261.5 30 7 3.00 3.00 9.00 21.00 973.1 92.46 0.1363 82000 1.78E-05 610 231-AL1/30-ST1A 230/30 230.9 29.80 260.8 24 7 3.50 2.33 6.99 21.00 870.9 72.13 0.1250 74000 1.96E-05 630 243-AL1/39-ST1A 240/40 243.1 39.50 282.5 26 7 3.45 2.68 8.04 21.80 980.1 85.12 0.1188 77000 1.89E-05 645 264-AL1/34-ST1A 265/35 263.7 34.10 297.7 24 7 3.74 2.49 7.47 22.40 994.4 81.04 0.1095 74000 1.96E-05 680 304-AL1/49-ST1A 300/50 304.3 49.50 353.7 26 7 3.86 3.00 9.00 24.40 1227.3 105.09 0.0949 77000 1.89E-05 740 305-AL1/39-ST1A 305/40 304.6 39.50 344.1 54 7 2.68 2.68 8.04 24.10 1151.2 96.80 0.0949 70000 1.93E-05 740 339-AL1/30-ST1A 340/30 339.3 29.80 369.1 48 7 3.00 2.33 6.99 25.00 1171.2 91.71 0.0852 62000 2.05E-05 790 382-AL1/49-ST1A 380/50 381.7 49.50 431.2 54 7 3.00 3.00 9.00 27.00 1442.5 121.30 0.0758 70000 1.93E-05 840 386-AL1/34-ST1A 385/35 386.0 34.10 420.1 48 7 3.20 2.49 7.47 26.70 1333.6 102.56 0.0749 62000 2.05E-05 850 434-AL1/56-ST1A 435/55 434.3 56.30 490.6 54 7 3.20 3.20 9.60 28.80 1641.3 133.59 0.0666 70000 1.93E-05 900 449-AL1/39-ST1A 450/40 448.7 39.50 488.2 48 7 3.45 2.68 8.04 28.70 1549.1 119.05 0.0644 62000 2.05E-05 920 490-AL1/64-ST1A 490/65 490.3 63.60 553.8 54 7 3.40 3.40 10.20 30.60 1852.9 150.81 0.0590 70000 1.93E-05 960 494-AL1/34-ST1A 495/35 494.4 34.10 528.4 45 7 3.74 2.49 7.47 29.90 1632.6 117.96 0.0584 61000 2.09E-05 985 511-AL1/45-ST1A 510/45 510.5 45.30 555.8 48 7 3.68 2.87 8.61 30.70 1765.3 133.31 0.0566 62000 2.05E-05 995 550-AL1/71-ST1A 550/70 549.7 71.30 620.9 54 7 3.60 3.60 10.80 32.40 2077.2 166.32 0.0526 70000 1.93E-05 1020 562-AL1/49-ST1A 560/50 561.7 49.50 611.2 48 7 3.86 3.00 9.00 32.20 1939.5 146.28 0.0515 62000 2.05E-05 1040 571-AL1/39-ST1A 570/40 571.2 39.50 610.6 45 7 4.02 2.68 8.04 32.20 1887.1 136.40 0.0506 61000 2.09E-05 1050 653-AL1/45-ST1A 650/45 653.5 45.30 698.8 45 7 4.30 2.87 8.61 34.40 2159.9 156.18 0.0442 61000 2.09E-05 1120 679-AL1/86-ST1A 680/85 678.6 86.00 764.5 54 19 4.00 2.40 12.00 36.00 2549.7 206.56 0.0426 68000 1.94E-05 1150 1046-AL1/45-ST1A 1045/45 1045.60 45.30 1090.9 72 7 4.30 2.87 8.61 43.00 3248.2 218.92 2.77E-02 60000 2.17E-05 1580

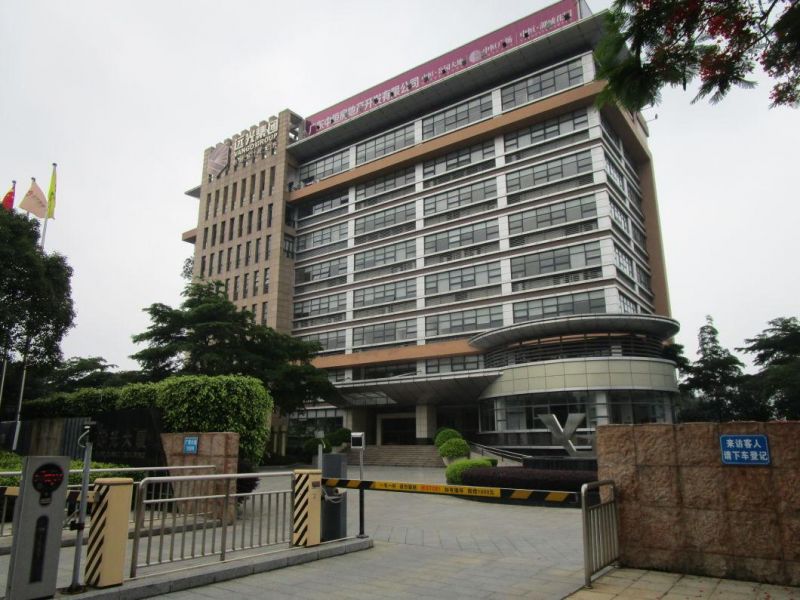

Our company:

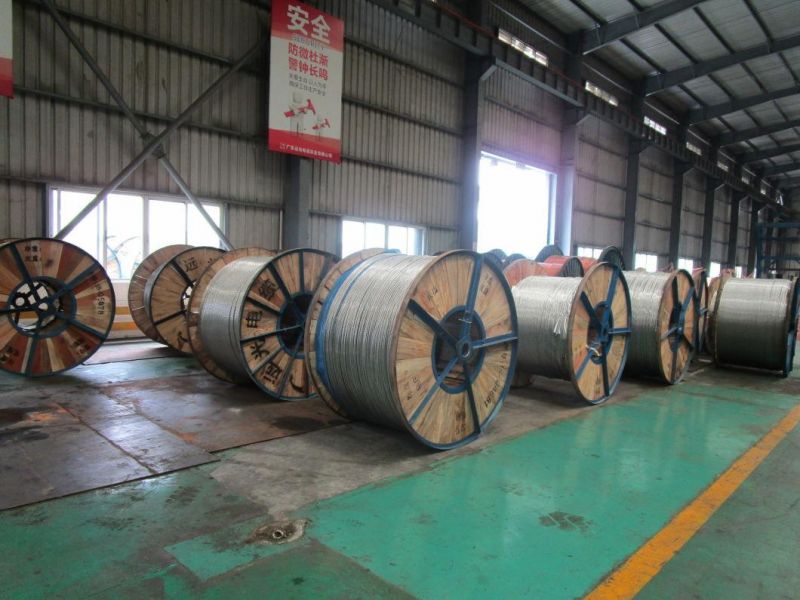

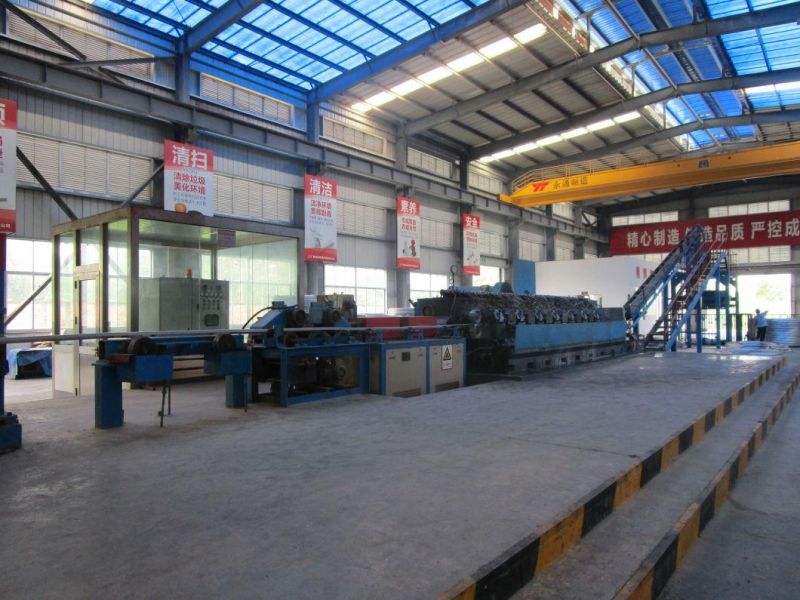

Workshop:
